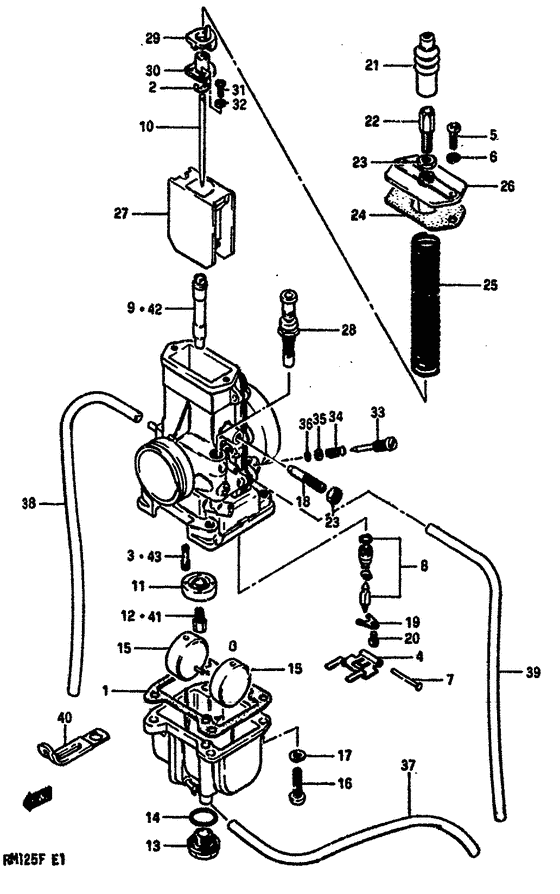

Carburetor Diagram Suzuki RM125
- Year
- 1985
- Model code
- RM125F(E/F) F
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23
|
23
13200-14500-000
Carburetor assy
Model e |
13200-14500-000 |
— | ||
| replacement | |||||
|
23
|
23
13200-01B00-000
Carburetor assy
Model e |
13200-01B00-000 |
— | ||
|
23
|
23
13200-14510-000
Carburetor assy
Model f |
13200-14510-000 |
— | ||
| replacement | |||||
|
23
|
23
13200-01B00-000
Carburetor assy
Model f |
13200-01B00-000 |
— | ||
|
1
|
1
13251-14300-000
GASKET,FLOAT CAHMBER
|
13251-14300-000 |
— | ||
|
2
|
2
13394-10010-000 CLIPClip, needle E ring; |
13394-10010-000 |
from US $1.98 |
||
|
3
|
3
09492-45009-000
Jet pilot #45
Jet,pilot (45); Model e |
09492-45009-000 |
— | ||
|
3
|
3
09492-35004-000
JET,PILOT(35)
Jet,pilot (35); Model f |
09492-35004-000 |
— | ||
|
4
|
4
13253-40010-000
ARM,FLOAT
|
13253-40010-000 |
— | ||
|
5
|
5
02112-04126-000
Screw
|
02112-04126-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0412A-000 SCREW |
02112-0412A-000 |
from US $0.80 |
||
|
6
|
6
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
7
|
7
13254-92311-000 PIN,FLOATPin Pin; |
13254-92311-000 |
from US $1.52 |
||
|
8
|
8
13370-14300-000
Valve assy,needle
|
13370-14300-000 |
— | ||
| replacements | |||||
|
8
|
8
13370-43B00-000
VALVE ASSY,NEEDLE
|
13370-43B00-000 |
— | ||
|
8
|
8
13370-43B01-000
Valve Assy,needle
|
13370-43B01-000 |
— | ||
|
9
|
9
09494-00453-000
Jet needle
Jet,needle (r-2); Model e |
09494-00453-000 |
— | ||
|
9
|
9
09494-00357-000
JET,NEEDLE(R-0)
Jet,needle (r-0); Model f |
09494-00357-000 |
— | ||
|
10
|
10
13383-14500-000
Needle,jet
Needle,jet (6ep05-3); Model e |
13383-14500-000 |
— | ||
|
10
|
10
13383-14510-000
NEEDLE,JET
Needle,jet (6fp55-3); Model f |
13383-14510-000 |
— | ||
|
11
|
11
13331-14300-000
Ring
Model e |
13331-14300-000 |
— | ||
|
11
|
11
13331-14510-000
Ring
Model f |
13331-14510-000 |
— | ||
|
12
|
12
09491-54001-000
Jet, main (270)
Model e |
09491-54001-000 |
— | ||
| replacement | |||||
|
12
|
12
09491-54002-000
JET,MAIN(270)
Model e |
09491-54002-000 |
— | ||
|
12
|
12
09491-56001-000
Jet main 280
Model f |
09491-56001-000 |
— | ||
| replacement | |||||
|
12
|
12
09491-56003-000
JET,MAIN(280)
Model f |
09491-56003-000 |
— | ||
|
13
|
13
13247-32210-000 SCREW,GUIDEBolt, drain Cap,drain; |
13247-32210-000 |
from US $9.86 |
||
|
14
|
14
13249-41310-000 O RING,DRAIN PLUGO ring O ring; |
13249-41310-000 |
from US $2.58 |
||
|
15
|
15
13252-18620-000 FLOAT |
13252-18620-000 |
from US $16.63 |
||
|
16
|
16
02112-05206-000
Screw
|
02112-05206-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
17
|
17
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
17
|
17
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
18
|
18
13267-14500-000
SCREW,THROTTLE SCREW
|
13267-14500-000 |
— | ||
|
19
|
19
13373-39110-000 PLATEPlate,needle valve; |
13373-39110-000 |
from US $3.97 |
||
|
20
|
20
02112-04066-000
Screw
|
02112-04066-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
21
|
21
13681-41510-000 CAP,CABLE ADJUSTERCap, rubber Cap,adjuster; |
13681-41510-000 |
from US $13.41 |
||
|
22
|
22
13577-41612-000 ADJUSTER,CABLEAdjuster,cable; |
13577-41612-000 |
from US $5.52 |
||
|
23
|
23
13661-16600-000 NUTNut, adjuster Nut; |
13661-16600-000 |
from US $2.94 |
||
|
24
|
24
13266-14500-000 GASKET,TOPGasket Gasket,top; |
13266-14500-000 |
US $5.93 |
||
|
25
|
25
13573-14500-000
Spring,throttle valve
Spring,throttle valve; |
13573-14500-000 |
— | ||
|
26
|
26
13261-14500-000
Cap,top
Top; |
13261-14500-000 |
— | ||
|
27
|
27
13551-14500-000
Valve,throttle (ca:4.0)
|
13551-14500-000 |
— | ||
| replacement | |||||
|
27
|
27
13551-01C00-000 VALVE,PISTON(CA:4.0)Valve, piston (ca:4.0) |
13551-01C00-000 |
from US $164.47 |
||
|
28
|
28
13400-14500-000
Plunger assy
|
13400-14500-000 |
— | ||
|
29
|
29
13629-16700-000 RINGRing |
13629-16700-000 |
US $4.41 |
||
|
30
|
30
13398-16700-000 JOINTJoint |
13398-16700-000 |
US $9.99 |
||
|
31
|
31
02112-03106-000
Screw
|
02112-03106-000 |
— | ||
| replacements | |||||
|
31
|
31
02112-0310A-000 SCREW |
02112-0310A-000 |
US $9.90 |
||
|
31
|
31
02112-0310B-000 SCREW |
02112-0310B-000 |
from US $3.71 |
||
|
32
|
32
08321-21036-000
Lock washer
|
08321-21036-000 |
— | ||
| replacement | |||||
|
32
|
32
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
33
|
33
13269-48030-000 SCREW,PILOT AIRScrew, air (2.0) Screw,pilot (2 1/2); Model f |
13269-48030-000 |
US $10.62 |
||
|
34
|
34
13268-48700-000 SPRING,THROTTLE SCREWModel f |
13268-48700-000 |
from US $1.98 |
||
|
35
|
35
13277-44080-000
Gasket
Model f |
13277-44080-000 |
— | ||
| replacement | |||||
|
35
|
35
13291-29900-000 WASHERGasket Model f |
13291-29900-000 |
from US $1.51 |
||
|
36
|
36
13278-44080-000 O ringModel f |
13278-44080-000 |
US $4.36 |
||
| replacements | |||||
|
36
|
36
13295-29900-000
O RING,PILOT AIR SCREW
Model f |
13295-29900-000 |
— | ||
|
36
|
36
13295-29901-000 O-Ring, Pilot Air ScrewModel f |
13295-29901-000 |
from US $1.98 |
||
|
37
|
37
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
37
|
37
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
37
|
37
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $2.91 |
||
|
38
|
38
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
38
|
38
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
38
|
38
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $2.91 |
||
|
39
|
39
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
39
|
39
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
39
|
39
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $2.91 |
||
|
40
|
40
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
40
|
40
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
40
|
40
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
40
|
40
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
40
|
40
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
41
|
41
09491-50003-000
Jet, main (250)
Opt |
09491-50003-000 |
— | ||
| replacement | |||||
|
41
|
41
09491-50008-000
JET,MAIN(250)
Opt |
09491-50008-000 |
— | ||
|
41
|
41
09491-52001-000
Jet, main (260)
Opt |
09491-52001-000 |
— | ||
| replacement | |||||
|
41
|
41
09491-52006-000 JET,MAIN(260)Opt |
09491-52006-000 |
from US $6.55 |
||
|
41
|
41
09491-56001-000
Jet main 280
Opt |
09491-56001-000 |
— | ||
| replacement | |||||
|
41
|
41
09491-56003-000
JET,MAIN(280)
Opt |
09491-56003-000 |
— | ||
|
41
|
41
09491-58002-000 JET,MAIN(290)Jet, main (290) Jet,main (290); Opt |
09491-58002-000 |
from US $6.88 |
||
|
41
|
41
09491-60007-000 JET,MAIN(300)Jet, main (300) Jet,main (300); Opt |
09491-60007-000 |
from US $8.13 |
||
|
42
|
42
09494-00393-000
Jet,needle
Jet,needle (q-8); Opt |
09494-00393-000 |
— | ||
|
42
|
42
09494-00357-000
JET,NEEDLE(R-0)
Jet,needle (r-0); Opt |
09494-00357-000 |
— | ||
|
42
|
42
09494-00403-000
Jet,needle
Jet,needle (r-4); Opt |
09494-00403-000 |
— | ||
|
42
|
42
09494-00404-000
Jet,needle
Jet,needle (r-6); Opt |
09494-00404-000 |
— | ||
|
43
|
43
09492-30003-000
Jet, pilot
Opt |
09492-30003-000 |
— | ||
| replacement | |||||
|
43
|
43
09492-30006-000 JET,PILOT(30)Jet, pilot (30) Opt |
09492-30006-000 |
from US $7.43 |
||
|
43
|
43
09492-35004-000
JET,PILOT(35)
Jet,pilot (35); Opt |
09492-35004-000 |
— | ||
|
43
|
43
09492-40004-000 JET,PILOT(40)Jet, pilot (40) Jet,pilot (40); Opt |
09492-40004-000 |
from US $5.41 |
||
|
43
|
43
09492-50010-000
Jet pilot 5
Jet,pilot (50); Opt |
09492-50010-000 |
— | ||
