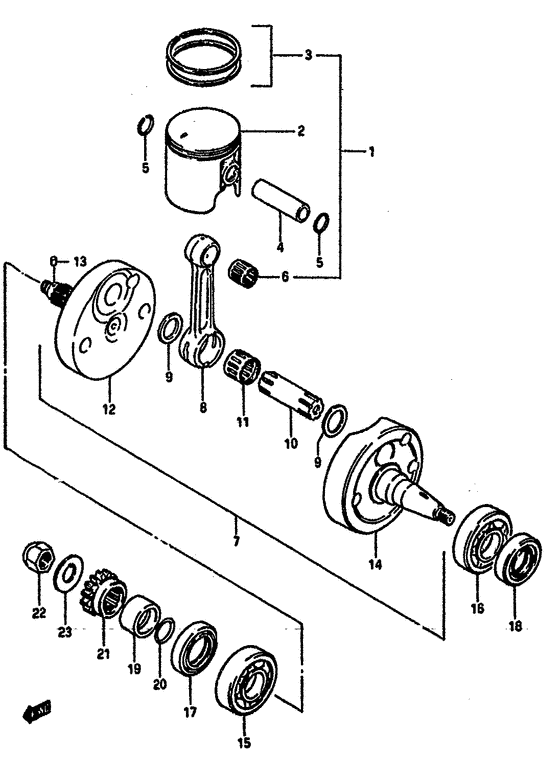

Crankshaft Diagram Suzuki RM125
- Year
- 1985
- Model code
- RM125F(E/F) F
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12101-14840-000
Piston kit (std)
Piston kit (std); Opt model e |
12101-14840-000 |
— | ||
|
1
|
1
12101-14840-025
Piston kit (os:0.25)
Piston kit (os:0.25); Opt model e |
12101-14840-025 |
— | ||
|
1
|
1
12101-14840-050
Piston kit (os:0.5)
Piston kit (os:0.5); Opt model e |
12101-14840-050 |
— | ||
|
1
|
1
12101-14850-000
Piston kit (std)
Opt model f |
12101-14850-000 |
— | ||
| replacement | |||||
|
1
|
1
12101-14852-000
Piston kit (std)
Opt model f |
12101-14852-000 |
— | ||
|
1
|
1
12101-14850-025
Piston kit (os:0.25)
Piston kit (os:0.25); Opt model f |
12101-14850-025 |
— | ||
|
1
|
1
12101-14850-050
Piston kit (os:0.5)
Piston kit (os:0.5); Opt model f |
12101-14850-050 |
— | ||
|
2
|
2
12110-14502-000
Piston
Model e |
12110-14502-000 |
— | ||
| replacement | |||||
|
2
|
2
12110-14503-000
PISTON (54.00MM)
Model e |
12110-14503-000 |
— | ||
|
2
|
2
12110-14502-025
Piston (os:0.25)
Opt model e |
12110-14502-025 |
— | ||
| replacement | |||||
|
2
|
2
12103-14840-025
PISTON SET(OS:0.25)
Opt model e |
12103-14840-025 |
— | ||
|
2
|
2
12110-14502-050
Piston (os:0.5)
Opt model e |
12110-14502-050 |
— | ||
| replacement | |||||
|
2
|
2
12103-14840-050
New Genuine Part
Opt model e |
12103-14840-050 |
— | ||
|
2
|
2
12110-14511-000
Piston
Model f |
12110-14511-000 |
— | ||
| replacement | |||||
|
2
|
2
12110-14513-000
Piston
Model f |
12110-14513-000 |
— | ||
|
2
|
2
12110-14511-025
Piston (os:0.25)
Opt model f |
12110-14511-025 |
— | ||
| replacement | |||||
|
2
|
2
12103-14850-025
Piston set,os0.25
Opt model f |
12103-14850-025 |
— | ||
|
2
|
2
12110-14511-050
Piston (os:0.5)
Opt model f |
12110-14511-050 |
— | ||
| replacement | |||||
|
2
|
2
12103-14850-050
Piston set,os0.5
Opt model f |
12103-14850-050 |
— | ||
|
3
|
3
12140-14110-000 RING SET,PISTONRing set,piston Ring set,piston; |
12140-14110-000 |
US $56.10 |
||
|
3
|
3
12140-14110-025
RING SET,PISTON(OS:0.25)
Ring set,piston (os:0.25); Opt |
12140-14110-025 |
— | ||
|
3
|
3
12140-14110-050 RING SET,PISTON(OS:0.50)Ring set,piston (os:0.5) Ring set,piston (os:0.5); Opt |
12140-14110-050 |
from US $47.10 |
||
|
4
|
4
12151-01B00-000 PIN,PISTONPin,piston |
12151-01B00-000 |
from US $11.89 |
||
|
5
|
5
09381-14001-000 PISTON PIN CIRC |
09381-14001-000 |
from US $1.06 |
||
|
6
|
6
09263-14012-000
Bearing
|
09263-14012-000 |
— | ||
| replacement | |||||
|
6
|
6
09263-14024-000
BEARING(14X18X20)
|
09263-14024-000 |
— | ||
|
7
|
7
12200-14502-000
Crankshaft assy
|
12200-14502-000 |
— | ||
|
8
|
8
12161-14500-000
CONNECTING ROD
Rod,connecting; |
12161-14500-000 |
— | ||
|
9
|
9
09160-22010-000 WASHER(22X35X1)Thrust washer Washer; |
09160-22010-000 |
from US $6.69 |
||
|
10
|
10
12211-14501-000
Pin,crank
|
12211-14501-000 |
— | ||
| replacement | |||||
|
10
|
10
12211-27C00-000 PIN,CRANKPin, crank |
12211-27C00-000 |
from US $26.31 |
||
|
11
|
11
09263-22034-0C0 BearingFrom 09263-22034 |
09263-22034-0C0 |
US $73.40 |
||
| replacement | |||||
|
11
|
11
09263-22060-000 BEARING(22X28X16)From 09263-22034 |
09263-22060-000 |
from US $55.48 |
||
|
12
|
12
12220-14501-000
Crankshaft,rh
|
12220-14501-000 |
— | ||
|
13
|
13
06211-03052-000 Pin |
06211-03052-000 |
US $1.37 |
||
| replacement | |||||
|
13
|
13
04221-03059-000 PIN |
04221-03059-000 |
from US $2.35 |
||
|
14
|
14
12261-14501-000
Crankshaft,lh
|
12261-14501-000 |
— | ||
|
15
|
15
09262-22012-000
Bearing,rh
|
09262-22012-000 |
— | ||
| replacement | |||||
|
15
|
15
09262-22025-000 BEARING(22X56X16)B1 22x56x16 bearing rh |
09262-22025-000 |
from US $34.96 |
||
|
16
|
16
09262-25070-0A0 BEARING(25X52X15)Bearing (25x52x15) Bearing,lh; From 09262-25064 |
09262-25070-0A0 |
from US $14.90 |
||
|
17
|
17
09289-28007-000
SEAL,OIL(28X40X8)
Oil seal,rh; |
09289-28007-000 |
— | ||
|
18
|
18
09283-18004-000 SEAL,OIL(18X30X8)Oil seal, lh (18x30x8) Oil seal,lh; |
09283-18004-000 |
from US $6.38 |
||
|
19
|
19
12359-14500-000
Spacer
|
12359-14500-000 |
— | ||
|
20
|
20
09280-20004-000 O RING(D:2.4,ID:19.8)O ring (d:2.4 id:19.8) |
09280-20004-000 |
from US $0.91 |
||
|
21
|
21
21111-40202-000
Gear,primary dr
Gear,primary drive (nt:19); |
21111-40202-000 |
— | ||
|
22
|
22
09159-12010-000 NUT |
09159-12010-000 |
from US $3.52 |
||
|
23
|
23
09166-12007-000
WASHER
|
09166-12007-000 |
— | ||
