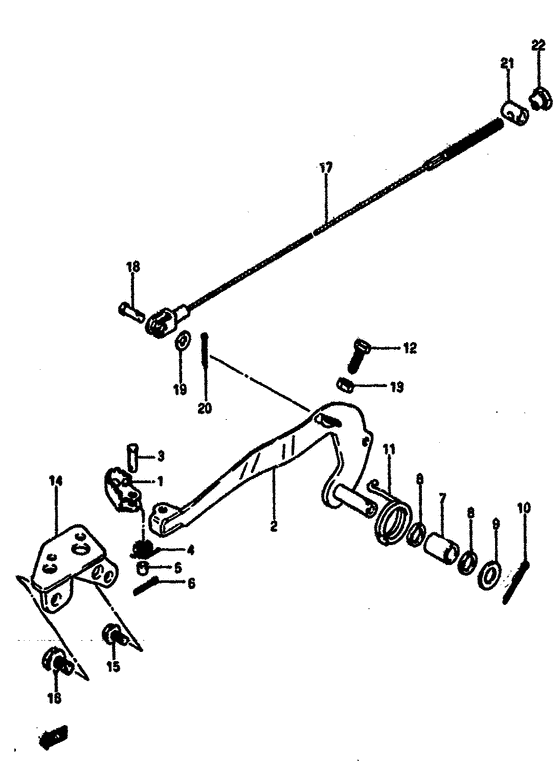

Rear brake Diagram Suzuki RM125
- Year
- 1985
- Model code
- RM125F(E/F) F
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-14130-000 PEDAL,BRAKEPedal,brake; |
43110-14130-000 |
from US $7.95 |
||
|
2
|
2
43120-14500-000
Arm brake pedal
|
43120-14500-000 |
— | ||
|
3
|
3
09200-06038-000 PIN |
09200-06038-000 |
from US $3.25 |
||
|
4
|
4
09444-11004-000
Spring
|
09444-11004-000 |
— | ||
| replacement | |||||
|
4
|
4
09444-11005-000 SPRING |
09444-11005-000 |
from US $4.34 |
||
|
5
|
5
09180-06137-000
SPACER(9.2X9X6.5)
|
09180-06137-000 |
— | ||
|
6
|
6
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
6
|
6
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
7
|
7
09319-12022-000
Bush brake peda
|
09319-12022-000 |
— | ||
|
8
|
8
09280-12006-000 O RING(D:2.2,ID:11.8) |
09280-12006-000 |
from US $1.51 |
||
|
9
|
9
08211-12221-000 WASHER |
08211-12221-000 |
from US $3.47 |
||
|
10
|
10
04111-30208-000
Cotter pin
Cotter pin; |
04111-30208-000 |
— | ||
| replacement | |||||
|
10
|
10
04111-3020A-000 PINCotter pin; |
04111-3020A-000 |
from US $0.61 |
||
|
11
|
11
09448-32013-000
Spring
|
09448-32013-000 |
— | ||
|
12
|
12
09128-06028-000 SCREW(6X23) |
09128-06028-000 |
from US $2.72 |
||
|
13
|
13
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
13
|
13
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
14
|
14
43240-14500-000
Protector,brake pedal
Model e |
43240-14500-000 |
— | ||
|
14
|
14
43240-14501-000
Protector brake
Model f |
43240-14501-000 |
— | ||
|
15
|
15
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
16
|
16
01517-08128-000
Bolt
|
01517-08128-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-08127-000 BOLTBolt, clamp |
01550-08127-000 |
from US $4.49 |
||
|
17
|
17
58510-14500-000
Cable assy,rear brake
Model e |
58510-14500-000 |
— | ||
| replacement | |||||
|
17
|
17
58510-146V0-000
CABLE,RR BRAKE
Model e |
58510-146V0-000 |
— | ||
|
17
|
17
58510-14501-000
Cable assy,rear brake
Model f |
58510-14501-000 |
— | ||
| replacement | |||||
|
17
|
17
58510-146V0-000
CABLE,RR BRAKE
Model f |
58510-146V0-000 |
— | ||
|
18
|
18
09200-05001-000 PIN(L:17.5) |
09200-05001-000 |
from US $1.22 |
||
|
19
|
19
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
20
|
20
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
20
|
20
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
|
21
|
21
09209-13004-000 PINPin,adjuster; |
09209-13004-000 |
US $3.62 |
||
|
22
|
22
09150-06009-000
Nut
|
09150-06009-000 |
— | ||
| replacement | |||||
|
22
|
22
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
