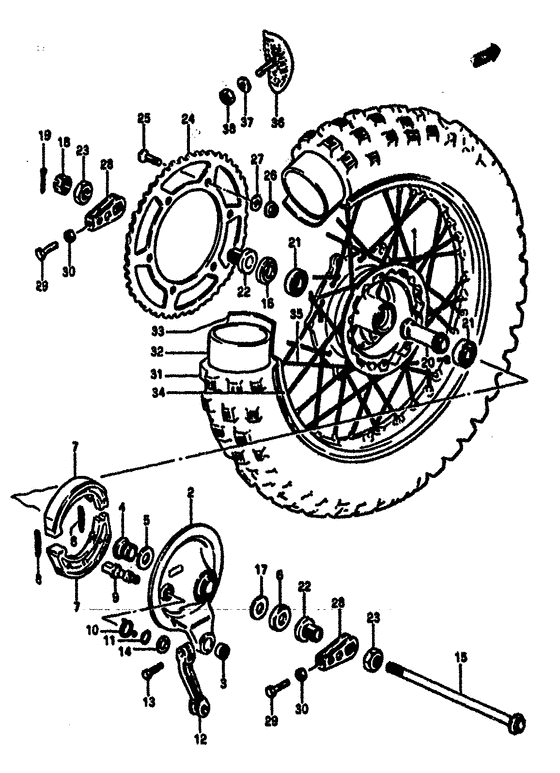

Rear wheel (Model f) Diagram Suzuki RM125
- Year
- 1985
- Model code
- RM125F(E/F) F
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-14110-000
Hub,rear wheel
|
64110-14110-000 |
— | ||
| replacements | |||||
|
1
|
1
09262-15021-000 BEARING(15X35X11) |
09262-15021-000 |
from US $13.14 |
||
|
1
|
1
64110-01B02-000
Hub rr
|
64110-01B02-000 |
— | ||
|
2
|
2
64200-14880-000
Panel,rear hub
|
64200-14880-000 |
— | ||
| replacement | |||||
|
2
|
2
64200-14881-000
Panel,rear hub
|
64200-14881-000 |
— | ||
|
3
|
3
64352-14500-000
Bearing
|
64352-14500-000 |
— | ||
| replacement | |||||
|
3
|
3
09269-08002-000
BEARING(8X18X11)
|
09269-08002-000 |
— | ||
|
4
|
4
64213-14100-000
SPACER,RR BRAKE ANCHOR PANEL
Spacer,panel; |
64213-14100-000 |
— | ||
|
5
|
5
09283-20031-000 SEAL,OIL(20X27X5)Oil seal Dust seal,inner; |
09283-20031-000 |
from US $3.19 |
||
|
6
|
6
64845-14100-000
CVR,RR BRAKE AHR PNL DUST SEAL
Cover,panel dust seal; |
64845-14100-000 |
— | ||
|
7
|
7
64410-14100-000
Shoe,brake
|
64410-14100-000 |
— | ||
| replacement | |||||
|
7
|
7
64400-14820-000
SHOE SET,BRAKE
|
64400-14820-000 |
— | ||
|
8
|
8
09443-07001-000 SPRING(L:34) |
09443-07001-000 |
from US $1.52 |
||
| replacement | |||||
|
8
|
8
09443-07025-000 SPRING(L:35.8) |
09443-07025-000 |
from US $1.52 |
||
|
9
|
9
54441-14101-000
CAM,FR BRAKE
Cam,brake; |
54441-14101-000 |
— | ||
|
10
|
10
09448-30007-000
Spring rr bk le
|
09448-30007-000 |
— | ||
| replacement | |||||
|
10
|
10
09448-30007-XC0 SPRING |
09448-30007-XC0 |
US $8.77 |
||
|
11
|
11
09280-12001-000 O RING(D:2.5,ID:11.4)O ring, reverse lever pivot Dust seal; |
09280-12001-000 |
from US $4.52 |
||
|
12
|
12
64451-14500-000
Lever,brake cam
|
64451-14500-000 |
— | ||
|
13
|
13
01107-06258-000
Bolt
|
01107-06258-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06257-000 Bolt |
01500-06257-000 |
from US $3.11 |
||
|
14
|
14
09160-12011-000 WASHER(12.5X20X1)Washer (12.5x20x1) Washer (12.5x20x1); |
09160-12011-000 |
from US $0.91 |
||
|
15
|
15
64711-14510-000
Axle rr
|
64711-14510-000 |
— | ||
|
16
|
16
64750-14500-000
SPACER,RR AXLE,L
|
64750-14500-000 |
— | ||
|
17
|
17
08211-15281-000 Thrust washerWasher thrust |
08211-15281-000 |
US $2.38 |
||
| replacement | |||||
|
17
|
17
09181-15223-000 SHIM(15X28X1)Thrust washer (15x28x1) |
09181-15223-000 |
from US $1.82 |
||
|
18
|
18
09141-14004-000 NUTNut |
09141-14004-000 |
from US $6.26 |
||
|
19
|
19
04111-30308-000
30 x 30 cotter
Cotter pin; |
04111-30308-000 |
— | ||
| replacement | |||||
|
19
|
19
04111-3030A-000 PINCotter pin; |
04111-3030A-000 |
from US $0.76 |
||
|
20
|
20
64730-14101-000
SPACER
Spacer,hub bearing; |
64730-14101-000 |
— | ||
|
21
|
21
08123-62027-000 BEARINGB1 15x35x11 bearing rh Bearing; |
08123-62027-000 |
from US $10.08 |
||
|
22
|
22
64781-14500-000
SPACER,CHAIN ADJUSTER
|
64781-14500-000 |
— | ||
|
23
|
23
09140-22006-000
NUT
Nut; |
09140-22006-000 |
— | ||
|
24
|
24
64511-40285-000
Sprocket, rear (nt:48)
|
64511-40285-000 |
— | ||
| replacement | |||||
|
24
|
24
64511-14D60-000 SPROCKET,RR(NT:48)Sprocket, rear (nt:48) |
64511-14D60-000 |
from US $208.18 |
||
|
24
|
24
64511-40266-000
Sprocket rr 52t
Sprocket,rear (nt:52); Opt |
64511-40266-000 |
— | ||
|
24
|
24
64511-40271-000
Sprocket, rear (nt:50)
Opt |
64511-40271-000 |
— | ||
| replacement | |||||
|
24
|
24
64511-36E00-000 SPROCKET,RR(NT:50)Opt |
64511-36E00-000 |
from US $126.59 |
||
|
25
|
25
09120-08004-000 SCREW(8X33.5)Bolt (8x20) Screw; |
09120-08004-000 |
from US $1.52 |
||
|
26
|
26
08319-31088-000
Nut
|
08319-31088-000 |
— | ||
| replacement | |||||
|
26
|
26
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
27
|
27
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
27
|
27
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
28
|
28
61410-40200-000
Adjuster,chain
|
61410-40200-000 |
— | ||
| replacement | |||||
|
28
|
28
61410-40201-000
ADJUSTER,CHAIN
|
61410-40201-000 |
— | ||
|
29
|
29
09104-08006-000
Bolt
|
09104-08006-000 |
— | ||
| replacement | |||||
|
29
|
29
09104-08034-000 BOLT(8X50) |
09104-08034-000 |
from US $2.61 |
||
|
30
|
30
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
30
|
30
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
31
|
31
65100-14550-000
Tire,rear (120/80-18)
Dunlop |
65100-14550-000 |
— | ||
|
32
|
32
65200-14540-000 Tube assy, inner |
65200-14540-000 |
US $42.19 |
||
| replacement | |||||
|
32
|
32
65200-42AA1-000 TUBE ASSY,WHEEL INNER |
65200-42AA1-000 |
from US $31.83 |
||
|
33
|
33
65261-14540-000 Protector |
65261-14540-000 |
US $6.63 |
||
| replacement | |||||
|
33
|
33
65261-15D00-000 PROTECTOR,WHL INR TUBE |
65261-15D00-000 |
from US $4.34 |
||
|
34
|
34
65311-14510-000
Rim rr wheel 1.
Rim,wheel (185x18) gold; |
65311-14510-000 |
— | ||
|
35
|
35
65320-14112-000
Spoke assy rr
Spoke assy,rear; |
65320-14112-000 |
— | ||
|
36
|
36
65270-46910-000
Stopper,bead
|
65270-46910-000 |
— | ||
| replacement | |||||
|
36
|
36
65270-43D00-000 STOPPER,BEAD(1.85)Stopper, bead |
65270-43D00-000 |
from US $25.08 |
||
|
37
|
37
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
37
|
37
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
38
|
38
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
38
|
38
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
