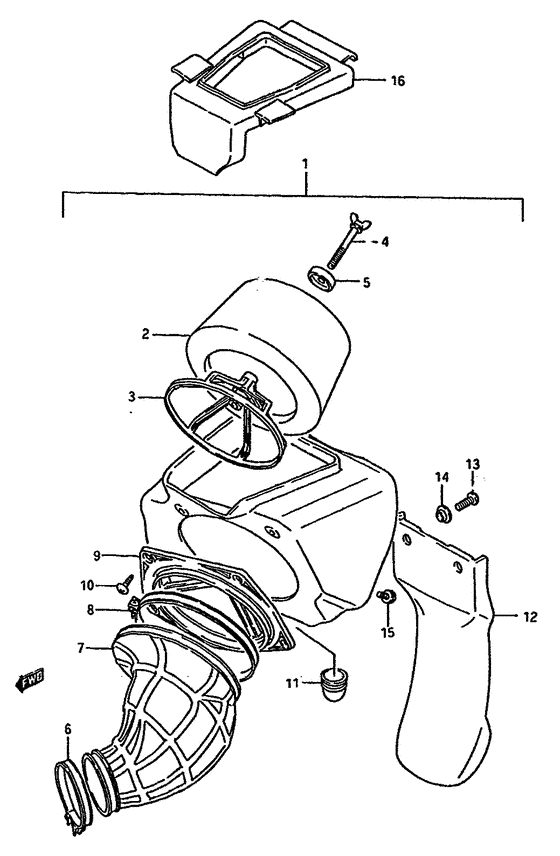

Air cleaner (Model h/j) Diagram Suzuki RM125
- Year
- 1988
- Model code
- RM125J(G/H/J) J
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-01B21-000
Cleaner assy,air
Model h |
13700-01B21-000 |
— | ||
|
1
|
1
13700-01B30-000
Cleaner assy,air
Model j |
13700-01B30-000 |
— | ||
|
2
|
2
13780-00B20-000
Filter
Filter; |
13780-00B20-000 |
— | ||
| replacement | |||||
|
2
|
2
13780-28C10-000
FILTER
Filter; |
13780-28C10-000 |
— | ||
|
3
|
3
13791-00B20-000
HOLDER,FILTER
Holder,filter; |
13791-00B20-000 |
— | ||
|
4
|
4
13831-02B00-000 BOLT,WINGBolt,wing; |
13831-02B00-000 |
from US $2.72 |
||
|
5
|
5
13792-13A01-000 WASHER,AIR CLEANERWasher |
13792-13A01-000 |
from US $1.92 |
||
|
6
|
6
09402-64208-000
Clamp
Model h |
09402-64208-000 |
— | ||
| replacement | |||||
|
6
|
6
09402-64203-000 CLAMPClamp (carburetor side) Model h |
09402-64203-000 |
from US $2.58 |
||
|
6
|
6
09402-68208-000 CLAMPModel j |
09402-68208-000 |
from US $6.72 |
||
|
7
|
7
13881-01B21-000
Tube,outlet
Model h |
13881-01B21-000 |
— | ||
|
7
|
7
13881-01B30-000
Tube,outlet
Model j |
13881-01B30-000 |
— | ||
|
8
|
8
13826-01B20-000 Clamp |
13826-01B20-000 |
US $4.74 |
||
| replacement | |||||
|
8
|
8
13826-43D00-000 CLAMP |
13826-43D00-000 |
US $10.52 |
||
|
9
|
9
13790-01B20-000
Base,filter
|
13790-01B20-000 |
— | ||
| replacement | |||||
|
9
|
9
13790-05D00-000
Base,filter
|
13790-05D00-000 |
— | ||
|
10
|
10
03241-05125-000
Screw
Screw; |
03241-05125-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREWScrew; |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
13873-18900-000
HOSE,AIR CLEANER DRAIN
Tube,drain; |
13873-18900-000 |
— | ||
|
12
|
12
13738-01B00-000
GUARD,MUD
Guard,mud; |
13738-01B00-000 |
— | ||
|
13
|
13
02142-06167-000 SCREWScrew Screw; |
02142-06167-000 |
from US $0.76 |
||
|
14
|
14
13838-02B00-000 COLLARSpacer Spacer; |
13838-02B00-000 |
from US $1.60 |
||
|
15
|
15
01517-06164-000
Bolt, front fender side
Model h |
01517-06164-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0616B-000 BOLTModel h |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
01550-0616A-000 BOLTModel h |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
01517-06123-000
Bolt
Model j |
01517-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp Model j |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLTModel j |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
13739-00B20-000
Guard,mud
Guard,mud; Model h |
13739-00B20-000 |
— | ||
| replacement | |||||
|
16
|
16
13739-00B22-000
Mud guard, b
Guard,mud; Model h |
13739-00B22-000 |
— | ||
|
16
|
16
13739-00B22-000
Mud guard, b
Model j |
13739-00B22-000 |
— | ||
