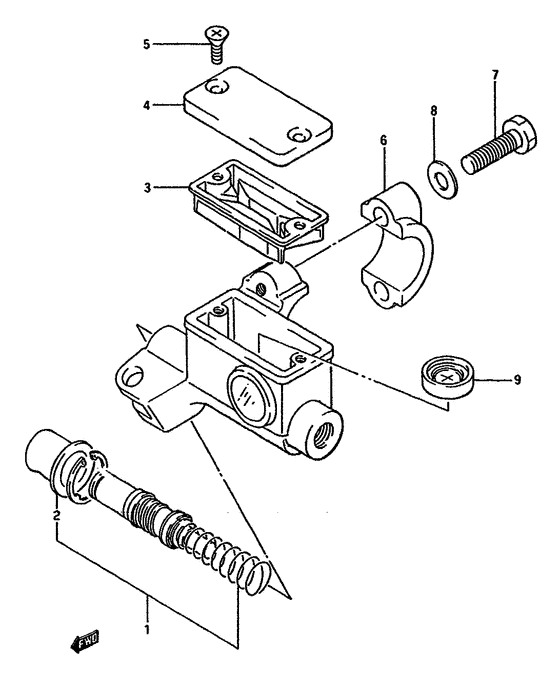

Front Master Cylinder (Model h/j) Diagram Suzuki RM125
- Year
- 1988
- Model code
- RM125J(G/H/J) J
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9
|
9
59600-02B00-000
Cylinder assy,front master.
Model h to 59600-02b01 |
59600-02B00-000 |
— | ||
| replacement | |||||
|
9
|
9
59600-27C01-000 CYLINDER ASSY,FR MASTERModel h to 59600-02b01 |
59600-27C01-000 |
from US $191.36 |
||
|
9
|
9
59600-02B01-000 Cylinder assy,front masterModel j |
59600-02B01-000 |
US $173.88 |
||
| replacement | |||||
|
9
|
9
59600-27C01-000 CYLINDER ASSY,FR MASTERModel j |
59600-27C01-000 |
from US $191.36 |
||
|
1
|
1
59600-03810-000
Piston/cup set
Model h |
59600-03810-000 |
— | ||
| replacement | |||||
|
1
|
1
59600-03820-000 PISTON & CUP SETModel h |
59600-03820-000 |
from US $34.40 |
||
|
1
|
1
59600-02820-000
Piston/cup set
Model j |
59600-02820-000 |
— | ||
| replacement | |||||
|
1
|
1
59600-03820-000 PISTON & CUP SETModel j |
59600-03820-000 |
from US $34.40 |
||
|
2
|
2
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
3
|
3
59667-14500-000 DIAPHRAGM |
59667-14500-000 |
from US $8.27 |
||
|
4
|
4
59669-14500-000
Cap
|
59669-14500-000 |
— | ||
| replacement | |||||
|
4
|
4
59669-27C01-000 CAP |
59669-27C01-000 |
from US $11.37 |
||
|
5
|
5
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.51 |
||
|
6
|
6
59671-14500-000
Holder
|
59671-14500-000 |
— | ||
|
7
|
7
01107-06255-000
Bolt
Model h |
01107-06255-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0625A-000 BOLTBolt, gear shift arm Model h |
01500-0625A-000 |
from US $0.80 |
||
|
7
|
7
01204-06255-000 BoltModel j |
01204-06255-000 |
US $11.80 |
||
|
8
|
8
08322-21064-000
Washer
Washer; |
08322-21064-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-0106B-000 WASHERWasher; |
08322-0106B-000 |
from US $0.76 |
||
|
9
|
9
59748-14500-000 SEPARATOR |
59748-14500-000 |
from US $5.78 |
||
