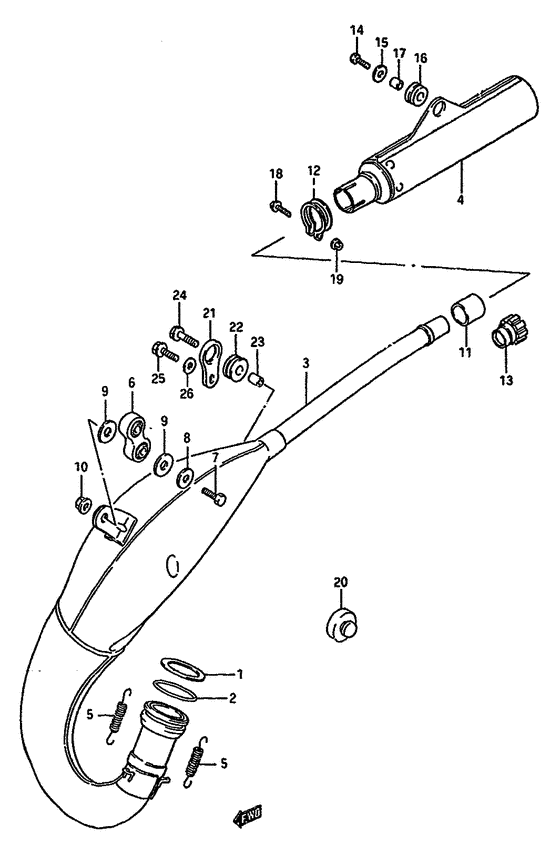

Muffler (Model h/j) Diagram Suzuki RM125
- Year
- 1988
- Model code
- RM125J(G/H/J) J
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14172-01B21-000
GASKET,EXHAUST PIPE
|
14172-01B21-000 |
— | ||
|
2
|
2
14171-01B21-000
O ring,exhaust pipe
|
14171-01B21-000 |
— | ||
|
3
|
3
14310-01B40-000
Muffler,1st
Model h |
14310-01B40-000 |
— | ||
|
3
|
3
14310-01B61-000
Muffler,1st
Model j |
14310-01B61-000 |
— | ||
|
4
|
4
14330-01B05-000
Muffler,2nd
Model h |
14330-01B05-000 |
— | ||
| replacement | |||||
|
4
|
4
14330-01B15-000 BODY,MUFFLER 2NDModel h |
14330-01B15-000 |
US $296.24 |
||
|
4
|
4
14330-01B22-000
Muffler,2nd
Model j |
14330-01B22-000 |
— | ||
|
5
|
5
09443-12034-000
Spring
Model h |
09443-12034-000 |
— | ||
| replacement | |||||
|
5
|
5
09443-10034-XC0 SPRINGModel h |
09443-10034-XC0 |
from US $2.53 |
||
|
5
|
5
09443-10034-000
Spring
Model j |
09443-10034-000 |
— | ||
| replacement | |||||
|
5
|
5
09443-10034-XC0 SPRINGModel j |
09443-10034-XC0 |
from US $2.53 |
||
|
6
|
6
14770-40000-000
DAMPER,MUFFLER
Damper,muffler; |
14770-40000-000 |
— | ||
|
7
|
7
09100-08176-000 BOLT(8X32)Bolt (8x32); |
09100-08176-000 |
from US $3.35 |
||
|
8
|
8
09160-08035-000
Wasehr (8.5x29x1.6)
Washer (8.5x23x1.2); |
09160-08035-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-08130-000 WASHER(8.5X24X1.6)Washer (8.5x23x1.2); |
09160-08130-000 |
from US $0.91 |
||
|
9
|
9
09161-13001-000
WASHER(13X28X1.6)
|
09161-13001-000 |
— | ||
|
10
|
10
08316-26088-000
Nut
Nut; |
08316-26088-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-20087-000 NUTNut; |
08316-20087-000 |
from US $3.77 |
||
|
11
|
11
14771-14510-000
Gasket
Gasket; Model h |
14771-14510-000 |
— | ||
| replacement | |||||
|
11
|
11
14771-14510-H17
GASKET,2ND MUFFLER
Gasket; Model h |
14771-14510-H17 |
— | ||
|
12
|
12
14772-01B00-000
Clamp
Model h |
14772-01B00-000 |
— | ||
|
13
|
13
14771-01B00-000
Connector,2nd muffler
Model j |
14771-01B00-000 |
— | ||
| replacement | |||||
|
13
|
13
14771-27C10-000
CONNECTOR,2ND MUFFLER
Model j |
14771-27C10-000 |
— | ||
|
14
|
14
09100-06039-000
Tail brake lamp
Bolt (6x22); Model h |
09100-06039-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-0625A-000 BOLTBolt, gear shift arm Bolt (6x22); Model h |
01500-0625A-000 |
from US $0.80 |
||
|
14
|
14
01547-06207-000 BoltBolt, lower Bolt (6x20); Model j |
01547-06207-000 |
from US $0.80 |
||
|
15
|
15
09160-06004-000
Washer (6.5x24x1.6)
Washer (6.5x24x1.6); |
09160-06004-000 |
— | ||
| replacement | |||||
|
15
|
15
09160-06134-000 WASHER(6.5X24X1.6)Washer, holder Washer (6.5x24x1.6); |
09160-06134-000 |
from US $0.96 |
||
|
16
|
16
09320-09027-000
Cushion
|
09320-09027-000 |
— | ||
|
17
|
17
09180-06090-000
Spacer
Spacer (6.4x9x10.5); |
09180-06090-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-06264-000 SPACER(6.5X9X10.5)Spacer, rr comb Spacer (6.4x9x10.5); |
09180-06264-000 |
from US $3.57 |
||
|
18
|
18
01517-06358-000
6 x 35 bolt
Model h |
01517-06358-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-06357-000 BOLTBolt, throttle lever no.2 Model h |
01550-06357-000 |
from US $0.91 |
||
|
19
|
19
08316-26068-000
Nut
Nut; Model h |
08316-26068-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-2006A-000 NUTNut; Model h |
08316-2006A-000 |
from US $0.76 |
||
|
20
|
20
09321-10020-000
Cushion,frame c
Cushion; Model h |
09321-10020-000 |
— | ||
| replacement | |||||
|
20
|
20
09321-10024-000 CUSHIONCushion; Model h |
09321-10024-000 |
from US $2.65 |
||
|
21
|
21
14761-01B00-000 PLATE,MUFFLER MTGPlate, mounting Plate,mounting; Model j |
14761-01B00-000 |
from US $7.40 |
||
|
22
|
22
14762-01B00-000
Cushion
Model j |
14762-01B00-000 |
— | ||
| replacements | |||||
|
22
|
22
14762-01B01-000
CUSHION,MUFFLER
Model j |
14762-01B01-000 |
— | ||
|
22
|
22
14762-01B02-000 Cushion,mufflerModel j |
14762-01B02-000 |
from US $3.04 |
||
|
23
|
23
09180-06062-000
Spacer (6.4x9x13.5)
Spacer (6.4x9x13.5); Model j |
09180-06062-000 |
— | ||
| replacement | |||||
|
23
|
23
09180-06268-000 SPACER(6.5X9X13.5)Spacer (6.4x9x13.5); Model j |
09180-06268-000 |
from US $1.68 |
||
|
24
|
24
01547-06257-000 BOLTModel j |
01547-06257-000 |
from US $0.96 |
||
|
25
|
25
01547-06167-000 BOLTBolt, fastener bracket Model j |
01547-06167-000 |
from US $0.80 |
||
|
26
|
26
08322-21067-000
Washer
Washer; Model j |
08322-21067-000 |
— | ||
| replacement | |||||
|
26
|
26
08322-01067-000 WASHERWasher; Model j |
08322-01067-000 |
from US $0.76 |
||
