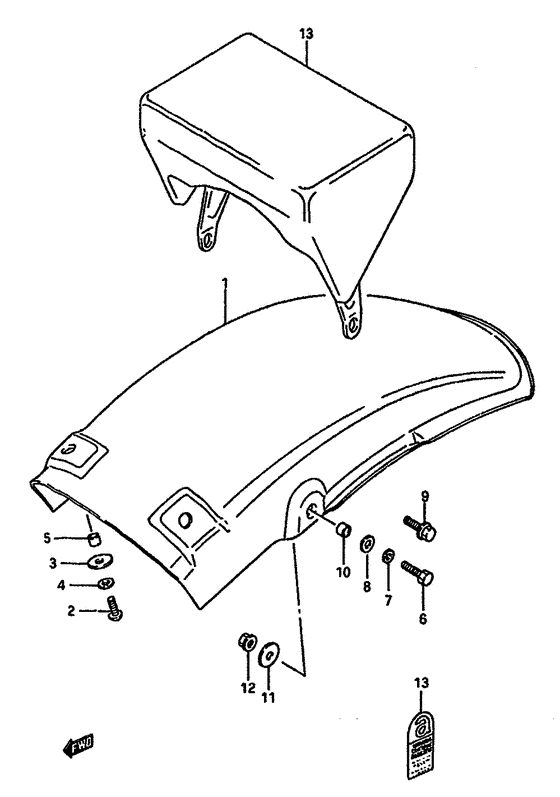

Rear fender Diagram Suzuki RM125
- Year
- 1988
- Model code
- RM125J(G/H/J) J
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63113-14501-163
Body,rear fender rear (yellow)
Body,rear fender rear (yellow); Model g |
63113-14501-163 |
— | ||
| replacement | |||||
|
1
|
1
63113-26C00-25Y
BODY,RR FENDER RR
Body,rear fender rear (yellow); Model g |
63113-26C00-25Y |
— | ||
|
1
|
1
63113-14501-25Y
Body,rear fender rear (yellow)
Body,rear fender rear (yellow); Model h/j |
63113-14501-25Y |
— | ||
| replacement | |||||
|
1
|
1
63113-26C00-25Y
BODY,RR FENDER RR
Body,rear fender rear (yellow); Model h/j |
63113-26C00-25Y |
— | ||
|
2
|
2
02142-06167-000 SCREWScrew Screw,front; |
02142-06167-000 |
from US $0.76 |
||
|
3
|
3
09160-06038-000
Washer
Washer; |
09160-06038-000 |
— | ||
| replacement | |||||
|
3
|
3
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) Washer; |
09160-06077-000 |
from US $0.96 |
||
|
4
|
4
08321-21067-000
Lock washer
Lock washer; |
08321-21067-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCKLock washer; |
08321-01067-000 |
from US $0.76 |
||
|
5
|
5
09180-06073-000
Spacer (6.4x9x5)
Spacer; |
09180-06073-000 |
— | ||
| replacement | |||||
|
5
|
5
09180-06306-000 SPACER(6.5X9X5)Spacer; |
09180-06306-000 |
from US $3.21 |
||
|
6
|
6
01107-06207-000 BoltBolt,rear; Model g/h |
01107-06207-000 |
US $18.70 |
||
| replacement | |||||
|
6
|
6
01500-06207-000 BOLTBolt,rear; Model g/h |
01500-06207-000 |
from US $0.76 |
||
|
7
|
7
08321-21067-000
Lock washer
Lock washer; Model g/h |
08321-21067-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01067-000 WASHER,LOCKLock washer; Model g/h |
08321-01067-000 |
from US $0.76 |
||
|
8
|
8
08322-21067-000
Washer
Washer; Model g/h |
08322-21067-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01067-000 WASHERWasher; Model g/h |
08322-01067-000 |
from US $0.76 |
||
|
9
|
9
01517-06207-000
Bolt
Bolt,rear; Model j |
01517-06207-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06207-000 BOLTBolt,rear; Model j |
01550-06207-000 |
from US $0.80 |
||
|
10
|
10
09180-06073-000
Spacer (6.4x9x5)
Spacer; |
09180-06073-000 |
— | ||
| replacement | |||||
|
10
|
10
09180-06306-000 SPACER(6.5X9X5)Spacer; |
09180-06306-000 |
from US $3.21 |
||
|
11
|
11
09160-06027-000
Washer (6.5x20x1.2)
Washer; |
09160-06027-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) Washer; |
09160-06077-000 |
from US $0.96 |
||
|
12
|
12
09159-06017-000
Adjust nut
Nut; Model g/h |
09159-06017-000 |
— | ||
| replacement | |||||
|
12
|
12
08319-31067-000 NUTNut, center Nut; Model g/h |
08319-31067-000 |
from US $1.44 |
||
|
12
|
12
08319-31067-000 NUTNut, center Model j |
08319-31067-000 |
from US $1.44 |
||
|
13
|
13
94900-38220-4UZ
Bag,seat tail
Bag assy,seat tail (blue); Model h/j opt |
94900-38220-4UZ |
— | ||
|
14
|
14
11967-82000-000
LABEL,ASBESTOS WARNING
Label,asbests; E2 |
11967-82000-000 |
— | ||
