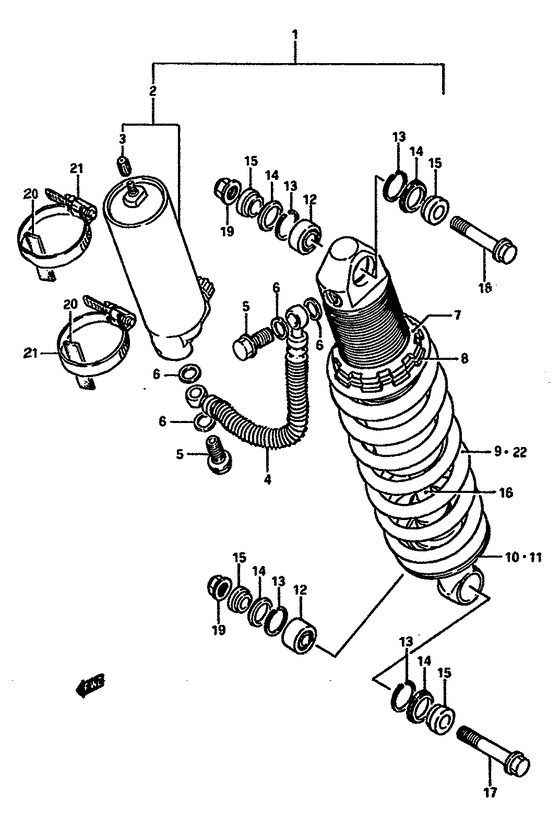

Shock absorber (Model g) Diagram Suzuki RM125
- Year
- 1988
- Model code
- RM125J(G/H/J) J
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-01B10-163
Shock absorber assy,rear
Yellow |
62100-01B10-163 |
— | ||
|
2
|
2
62270-01B00-000
Tank
|
62270-01B00-000 |
— | ||
|
3
|
3
51294-20400-000 CAP |
51294-20400-000 |
from US $3.46 |
||
|
4
|
4
62280-00B00-000
Hose
Hose; |
62280-00B00-000 |
— | ||
|
5
|
5
62281-14140-000
Bolt
|
62281-14140-000 |
— | ||
|
6
|
6
51148-41310-000 GASKETGasket Gasket; |
51148-41310-000 |
from US $1.52 |
||
|
7
|
7
62194-01B00-000
Nut
|
62194-01B00-000 |
— | ||
|
8
|
8
62191-01B00-000
Guide,spring
|
62191-01B00-000 |
— | ||
|
9
|
9
62211-01B00-000
Spring
|
62211-01B00-000 |
— | ||
|
10
|
10
62224-14520-000
Washer
|
62224-14520-000 |
— | ||
|
11
|
11
62225-00B00-000
Guide, spring
|
62225-00B00-000 |
— | ||
|
12
|
12
62175-43400-000
Bearing
|
62175-43400-000 |
— | ||
| replacement | |||||
|
12
|
12
62175-00B00-000 BEARING,RR CUSHION LEVERBearing, upper |
62175-00B00-000 |
from US $49.40 |
||
|
13
|
13
62277-14200-000 Ring, stopStop ring; |
62277-14200-000 |
US $1.82 |
||
| replacement | |||||
|
13
|
13
62657-34A01-000 RING,STOPPERStop ring; |
62657-34A01-000 |
from US $1.60 |
||
|
14
|
14
62226-14520-000
SEAL,DUST RR SHOCK ABSORBER
|
62226-14520-000 |
— | ||
|
15
|
15
62684-14520-000
COLLAR
|
62684-14520-000 |
— | ||
|
16
|
16
62120-01B00-000
Rod,piston
|
62120-01B00-000 |
— | ||
|
17
|
17
62311-14500-000 Bolt,upper |
62311-14500-000 |
US $3.45 |
||
| replacement | |||||
|
17
|
17
09103-10428-000 BOLT(10X58) |
09103-10428-000 |
from US $4.56 |
||
|
18
|
18
62648-01B00-000
Bolt, upper
|
62648-01B00-000 |
— | ||
| replacement | |||||
|
18
|
18
62311-28E00-000 BOLT,RR SHOCK ABSORBERBolt, upper (10x54) |
62311-28E00-000 |
from US $6.23 |
||
|
19
|
19
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
20
|
20
62423-01B01-000
Cushion,rr abs
|
62423-01B01-000 |
— | ||
|
21
|
21
09402-70501-000 ClampClamp,tank; |
09402-70501-000 |
US $19.27 |
||
| replacements | |||||
|
21
|
21
09402-69511-000 CLAMPClamp (thb) Clamp,tank; |
09402-69511-000 |
US $56.70 |
||
|
21
|
21
09402-70503-000 CLAMPClamp,tank Clamp,tank; |
09402-70503-000 |
from US $12.64 |
||
|
22
|
22
62211-01B07-000
Spring (soft)
Spring (soft); Opt |
62211-01B07-000 |
— | ||
