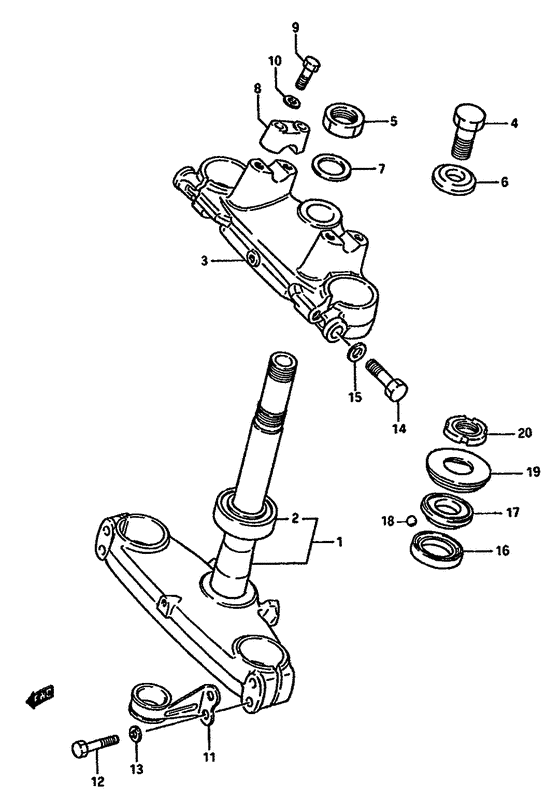

Steering stem (Model g/h) Diagram Suzuki RM125
- Year
- 1988
- Model code
- RM125J(G/H/J) J
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-01B00-000
Stem,steering
Model g |
51410-01B00-000 |
— | ||
|
1
|
1
51410-01B20-000
Stem,steering
Model h |
51410-01B20-000 |
— | ||
|
2
|
2
09265-30005-000
Bearing
|
09265-30005-000 |
— | ||
| replacements | |||||
|
2
|
2
09265-30009-000
BEARING(30X55X17)
|
09265-30009-000 |
— | ||
|
2
|
2
09265-30034-000 Bearing |
09265-30034-000 |
from US $31.92 |
||
|
3
|
3
51311-01B00-000
Stem head,steering
|
51311-01B00-000 |
— | ||
| replacements | |||||
|
3
|
3
01570-0840A-000 Bolt |
01570-0840A-000 |
from US $3.42 |
||
|
3
|
3
51311-01B40-000
Stem head,steering
|
51311-01B40-000 |
— | ||
|
3
|
3
01570-08403-000
Bolt
|
01570-08403-000 |
— | ||
|
4
|
4
51351-00B00-000
Bolt
Model g |
51351-00B00-000 |
— | ||
| replacement | |||||
|
4
|
4
51351-30540-000
Bolt
Model g |
51351-30540-000 |
— | ||
|
5
|
5
51353-24A00-000 NUT,STEERING STEMModel h |
51353-24A00-000 |
from US $2.61 |
||
|
6
|
6
51356-00B00-000
Washer
Washer; Model g |
51356-00B00-000 |
— | ||
| replacement | |||||
|
6
|
6
51356-41310-000 WASHERWasher; Model g |
51356-41310-000 |
US $5.46 |
||
|
7
|
7
51356-01B20-000
Washer
Washer; Model h |
51356-01B20-000 |
— | ||
| replacement | |||||
|
7
|
7
51356-24B01-000 WASHER(22.5X32X1.6)Washer; Model h |
51356-24B01-000 |
from US $6.16 |
||
|
8
|
8
56211-27100-000 HOLDER,HANDLEBARHolder,handle upper; |
56211-27100-000 |
from US $20.54 |
||
|
9
|
9
01107-08358-000
Bolt 8 x 35
|
01107-08358-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
10
|
10
08321-21088-000
Lock washer
Lock washer; |
08321-21088-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-01087-000 WASHER,LOCKWasher, lock Lock washer; |
08321-01087-000 |
from US $0.76 |
||
|
11
|
11
58621-00B00-000
Clip
|
58621-00B00-000 |
— | ||
|
12
|
12
01107-08408-000
Bolt
|
01107-08408-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0840A-000 Bolt |
01500-0840A-000 |
from US $0.96 |
||
|
13
|
13
08321-21088-000
Lock washer
Lock washer; |
08321-21088-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01087-000 WASHER,LOCKWasher, lock Lock washer; |
08321-01087-000 |
from US $0.76 |
||
|
14
|
14
01107-10458-000
Bolt (10*45)
|
01107-10458-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-1045A-000 Bolt |
01500-1045A-000 |
from US $4.86 |
||
|
15
|
15
08321-21108-000
Lock washer
Lock washer; |
08321-21108-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-01107-000 WASHER,LOCKLock washer Lock washer; |
08321-01107-000 |
from US $0.76 |
||
|
16
|
16
51611-40201-000 RACE,STEERING INNER (SUJ)Race, steering inner upper Race,inner upper; Model g |
51611-40201-000 |
US $16.96 |
||
|
16
|
16
51611-01B10-000
Race steering i
Model h |
51611-01B10-000 |
— | ||
|
17
|
17
51621-40200-000
Race,steering outer
Race,outer upper; |
51621-40200-000 |
— | ||
| replacement | |||||
|
17
|
17
51621-08D00-000 LACE,STEERING OUTER UPRRace, steering outer Race,outer upper; |
51621-08D00-000 |
US $23.40 |
||
|
18
|
18
06111-08003-000 BALLSteel ball lower Steel ball; |
06111-08003-000 |
from US $0.77 |
||
|
19
|
19
51643-40200-000 SEAL,STEERING UPR DUSTDust seal Model g |
51643-40200-000 |
from US $6.15 |
||
|
19
|
19
51643-01B10-000 SEAL,STEERING UPR DUSTSeal, steering upper dust Model h |
51643-01B10-000 |
from US $5.19 |
||
|
20
|
20
51631-40200-000 NUT,STEERING STEMNut,steering stem; |
51631-40200-000 |
US $14.67 |
||
