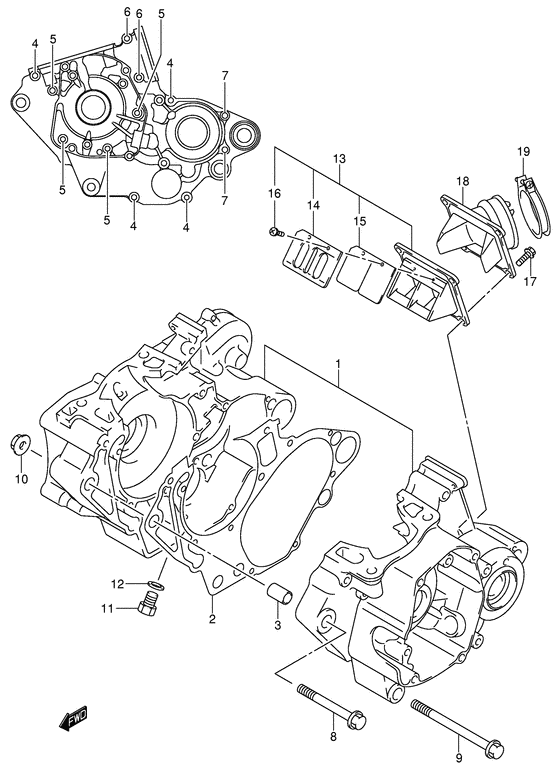

Crankcase Diagram Suzuki RM125
- Year
- 2001
- Model code
- RM125K1(E2) K1
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-36890-000
Crankcase set
Model k1 |
11300-36890-000 |
— | ||
| replacement | |||||
|
1
|
1
11300-36892-000
CRANKCASE SET
Model k1 |
11300-36892-000 |
— | ||
|
1
|
1
11300-36891-000
Crankcase set
Model k2 |
11300-36891-000 |
— | ||
| replacement | |||||
|
1
|
1
11300-36892-000
CRANKCASE SET
Model k2 |
11300-36892-000 |
— | ||
|
2
|
2
11481-36F00-000
Gasket, crankcase
Model k1 |
11481-36F00-000 |
— | ||
| replacement | |||||
|
2
|
2
11481-36F01-000
GASKET,CRANKCASE
Model k1 |
11481-36F01-000 |
— | ||
|
2
|
2
11481-36F01-000
GASKET,CRANKCASE
Model k2 |
11481-36F01-000 |
— | ||
|
3
|
3
09206-13017-000 PIN(13X10.4X20)Pin Pin (10.4x13x20); |
09206-13017-000 |
from US $2.59 |
||
|
4
|
4
11328-36F00-000
Bolt (6x40)
Bolt (6x40); Model k1 |
11328-36F00-000 |
— | ||
| replacement | |||||
|
4
|
4
09103-06241-000 BOLT(6X40)Bolt (6x40); Model k1 |
09103-06241-000 |
from US $4.20 |
||
|
4
|
4
09103-06241-000 BOLT(6X40)Bolt (6x40); Model k2 |
09103-06241-000 |
from US $4.20 |
||
|
5
|
5
11328-36F10-000
Bolt (6x45)
Bolt (6x45); Model k1 |
11328-36F10-000 |
— | ||
| replacement | |||||
|
5
|
5
09103-06242-000 BOLT(6X45)Bolt, upper Bolt (6x45); Model k1 |
09103-06242-000 |
from US $4.18 |
||
|
5
|
5
09103-06242-000 BOLT(6X45)Bolt, upper Bolt (6x45); Model k2 |
09103-06242-000 |
from US $4.18 |
||
|
6
|
6
11328-37F00-000
Bolt (l:50)
Bolt (6x50); Model k1 |
11328-37F00-000 |
— | ||
| replacement | |||||
|
6
|
6
09103-06244-000 BOLT(6X50)Bolt (6x50); Model k1 |
09103-06244-000 |
from US $4.20 |
||
|
6
|
6
09103-06244-000 BOLT(6X50)Bolt (6x50); Model k2 |
09103-06244-000 |
from US $4.20 |
||
|
7
|
7
11328-36F20-000
Bolt (6x55)
Bolt (6x55); Model k1 |
11328-36F20-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-06243-000 BOLT(6X55)Bolt, crankcase (6x55) Bolt (6x55); Model k1 |
09103-06243-000 |
from US $4.20 |
||
|
7
|
7
09103-06243-000 BOLT(6X55)Bolt, crankcase (6x55) Bolt (6x55); Model k2 |
09103-06243-000 |
from US $4.20 |
||
|
8
|
8
09103-10061-000 BOLT(10X90)Bolt, fr diff housing mtg Bolt (10x90); |
09103-10061-000 |
from US $8.76 |
||
|
9
|
9
09103-10122-000 BOLT(10X130)Bolt,front rh Bolt (10x130); |
09103-10122-000 |
from US $9.62 |
||
|
10
|
10
09159-10060-000 NUT |
09159-10060-000 |
from US $1.28 |
||
|
11
|
11
01500-12163-000
Bolt
Plug, drain; Model k1 |
01500-12163-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1216B-000 BoltPlug, drain; Model k1 |
01500-1216B-000 |
from US $0.91 |
||
|
11
|
11
09247-12012-000 PLUGPlug, drain; Model k2 |
09247-12012-000 |
from US $10.34 |
||
|
12
|
12
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
13
|
13
13150-43D10-000
VALVE ASSY,REED
|
13150-43D10-000 |
— | ||
| replacement | |||||
|
13
|
13
13150-43D11-000 Valve Assy,reed |
13150-43D11-000 |
US $139.84 |
||
|
14
|
14
13152-43D00-000
STOPPER,REED VALVE
|
13152-43D00-000 |
— | ||
| replacement | |||||
|
14
|
14
13152-43D01-000 Stopper,reed Valve |
13152-43D01-000 |
from US $5.67 |
||
|
15
|
15
13153-43D10-000
VALVE,REED
|
13153-43D10-000 |
— | ||
| replacement | |||||
|
15
|
15
13153-43D11-000 Valve,reed |
13153-43D11-000 |
from US $45.26 |
||
|
16
|
16
02112-33083-000
Screw
|
02112-33083-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-3308A-000 SCREW |
02112-3308A-000 |
from US $3.04 |
||
|
17
|
17
01547-06203-000
Bolt (6x20)
Model k1 |
01547-06203-000 |
— | ||
| replacement | |||||
|
17
|
17
01547-0620B-000 BOLTModel k1 |
01547-0620B-000 |
from US $0.76 |
||
|
17
|
17
09103-06235-000
Bolt, lh
Model k2 |
09103-06235-000 |
— | ||
| replacement | |||||
|
17
|
17
01547-06207-000 BoltBolt, lower Model k2 |
01547-06207-000 |
from US $0.80 |
||
|
18
|
18
13110-36F00-000
Pipe, intake
Model k1 |
13110-36F00-000 |
— | ||
| replacements | |||||
|
18
|
18
13110-36F10-000
PIPE,INTAKE
Model k1 |
13110-36F10-000 |
— | ||
| replacement | |||||
|
18
|
18
13110-36F11-000
Pipe,intake
Model k1 |
13110-36F11-000 |
— | ||
|
18
|
18
13110-36F11-000
Pipe,intake
Model k1 |
13110-36F11-000 |
— | ||
|
18
|
18
13110-36F10-000
PIPE,INTAKE
Model k2 |
13110-36F10-000 |
— | ||
| replacement | |||||
|
18
|
18
13110-36F11-000
Pipe,intake
Model k2 |
13110-36F11-000 |
— | ||
|
19
|
19
09402-56208-000
Clamp
Clamp; |
09402-56208-000 |
— | ||
| replacement | |||||
|
19
|
19
09402-56901-000 CLAMPClamp; |
09402-56901-000 |
from US $2.28 |
||
