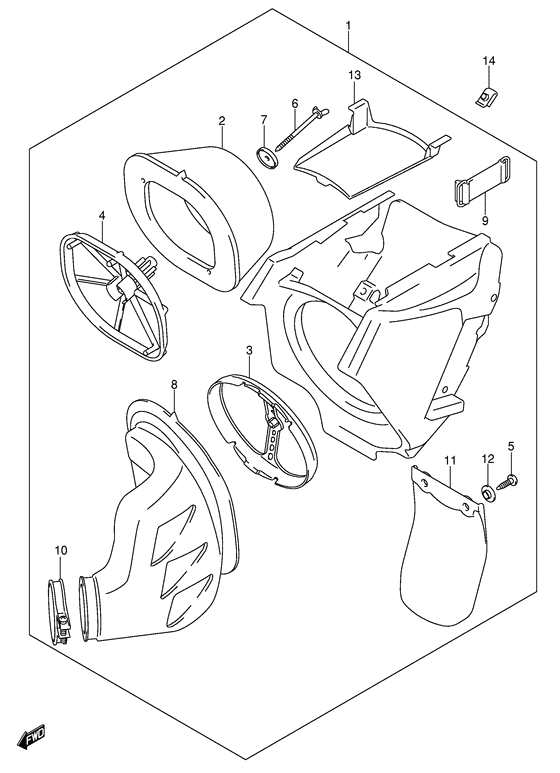

Air cleaner Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-36F00-000
Cleaner assy, air
Model k1 |
13700-36F00-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-36F01-000
Cleaner assy, air
Model k1 |
13700-36F01-000 |
— | ||
|
1
|
1
13700-36F10-000
CLEANER ASSY,AIR
Model k2 |
13700-36F10-000 |
— | ||
|
2
|
2
13780-36E20-000 FILTER ASSY |
13780-36E20-000 |
US $35.15 |
||
|
3
|
3
13790-36E00-000 BASE,FILTERBase, filter |
13790-36E00-000 |
US $27.44 |
||
|
4
|
4
13791-36E00-000 HOLDER,FILTER |
13791-36E00-000 |
from US $20.81 |
||
|
5
|
5
13831-35F00-000 SCREWScrew, tapping; |
13831-35F00-000 |
from US $1.52 |
||
|
6
|
6
13831-37E20-000 BOLT,WINGBelt, wing Bolt, wing; |
13831-37E20-000 |
from US $6.51 |
||
|
7
|
7
13792-13A01-000 WASHER,AIR CLEANERWasher |
13792-13A01-000 |
from US $1.92 |
||
|
8
|
8
13881-36F00-000
Tube, outlet
Model k1 |
13881-36F00-000 |
— | ||
|
8
|
8
13881-36F10-000
TUBE,OUTLET
Model k2 |
13881-36F10-000 |
— | ||
|
9
|
9
32942-14111-000 BAND(L:65)Band, cdi unit; |
32942-14111-000 |
from US $11.63 |
||
|
10
|
10
09402-70203-000
Clamp
|
09402-70203-000 |
— | ||
| replacement | |||||
|
10
|
10
09402-70902-000 CLAMP |
09402-70902-000 |
from US $6.56 |
||
|
11
|
11
13738-36E01-000 MUDGUARD |
13738-36E01-000 |
from US $18.90 |
||
|
12
|
12
13838-02B00-000 COLLARSpacer Collar, mud guard; |
13838-02B00-000 |
from US $1.60 |
||
|
13
|
13
13741-37F00-000
Cap, cleaner
|
13741-37F00-000 |
— | ||
| replacement | |||||
|
13
|
13
13741-37F02-000 CAP,AIR CLEANERCap, air cleaner |
13741-37F02-000 |
from US $13.62 |
||
|
14
|
14
71812-82010-000
Nut
Nut, cleaner; |
71812-82010-000 |
— | ||
| replacement | |||||
|
14
|
14
09148-06021-000 NUTNut, air cleaner Nut, cleaner; |
09148-06021-000 |
from US $1.31 |
||
