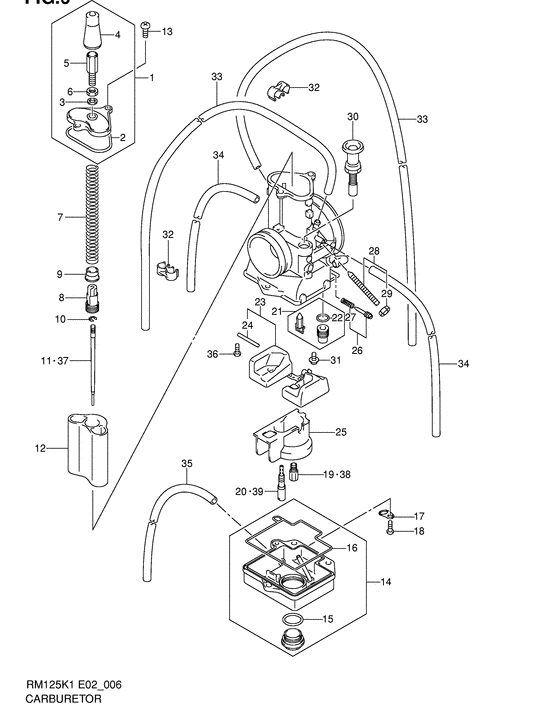

Carburetor (Model k1) Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-36F00-000
CARBURETOR ASSY
|
13200-36F00-000 |
— | ||
|
1
|
1
13260-36F00-000
TOP CAP ASSY
|
13260-36F00-000 |
— | ||
|
2
|
2
13258-36F00-000 PACKING |
13258-36F00-000 |
from US $4.27 |
||
|
3
|
3
13531-09300-000 WASHER,DRAIN PLUG |
13531-09300-000 |
US $1.84 |
||
|
4
|
4
13681-16600-000 CAP,RUBBERCap cable adjuster Cap; |
13681-16600-000 |
from US $2.39 |
||
|
5
|
5
13577-41612-000 ADJUSTER,CABLECable adjuster; |
13577-41612-000 |
from US $5.52 |
||
|
6
|
6
13661-16600-000 NUTNut, adjuster Nut; |
13661-16600-000 |
from US $2.94 |
||
|
7
|
7
13573-36F00-000 SPRING |
13573-36F00-000 |
from US $6.99 |
||
|
8
|
8
13518-36F00-000 GUIDE HOLDERGuide holder Guide holder; |
13518-36F00-000 |
from US $10.25 |
||
|
9
|
9
13424-36F00-000 RING |
13424-36F00-000 |
from US $3.86 |
||
|
10
|
10
13394-17E60-000 E RING,MULTIPLE JET NOZZLEE ring, multiple jet nozzle |
13394-17E60-000 |
from US $1.52 |
||
|
11
|
11
13383-36F40-000 NEEDLE(6BGY23-75)Needle, jet (6bgy23-75); |
13383-36F40-000 |
from US $10.78 |
||
|
12
|
12
13551-36F00-000
VALVE,PISTON
|
13551-36F00-000 |
— | ||
|
13
|
13
13602-48B10-000 SCREWScrew; |
13602-48B10-000 |
from US $1.60 |
||
|
14
|
14
13250-36F00-000
FLOAT BODY ASSY
|
13250-36F00-000 |
— | ||
|
15
|
15
13246-29630-000 O RING |
13246-29630-000 |
from US $4.12 |
||
|
16
|
16
13251-36F00-000 O RING |
13251-36F00-000 |
from US $9.13 |
||
|
17
|
17
13693-36500-000 PLATE,CARBURETOR |
13693-36500-000 |
from US $2.17 |
||
|
18
|
18
13601-05148-000 SCREW(5X14)Screw; |
13601-05148-000 |
from US $2.08 |
||
| replacement | |||||
|
18
|
18
13601-05148-XC0 SCREW(5X14)Screw; |
13601-05148-XC0 |
from US $1.98 |
||
|
19
|
19
09491-92002-000 JET,MAIN(460)Jet, main (460) Jet, main (460); |
09491-92002-000 |
from US $5.18 |
||
|
20
|
20
09492-27011-000 JET,PILOT(27.5)Jet, pilot (27.5) Jet, pilot (27.5); |
09492-27011-000 |
from US $11.56 |
||
|
21
|
21
13370-36F00-000 VALVE ASSY,NEEDLENeedle valve assy |
13370-36F00-000 |
from US $18.47 |
||
| replacement | |||||
|
21
|
21
13370-36F01-000 Valve Assy,needle |
13370-36F01-000 |
from US $40.11 |
||
|
22
|
22
13374-35C00-000 O RING,NEEDLE VALVE SEATO ring O ring, hneedle valve; |
13374-35C00-000 |
from US $2.58 |
||
|
23
|
23
13240-36F00-000 FLOAT SET |
13240-36F00-000 |
from US $49.68 |
||
|
24
|
24
13254-20010-000 PIN,FLOATPin; |
13254-20010-000 |
from US $1.67 |
||
|
25
|
25
13418-36F00-000 HOLDER |
13418-36F00-000 |
from US $6.29 |
||
|
26
|
26
13280-36F00-000
ADJUSTER SET (AS)
Adjuster set (as); |
13280-36F00-000 |
— | ||
|
27
|
27
13268-35010-000 SPRING |
13268-35010-000 |
from US $1.98 |
||
|
28
|
28
13270-36F00-000 ADJUSTER SET (PV)Adjuster set (pv); |
13270-36F00-000 |
from US $4.72 |
||
|
29
|
29
13607-47070-000 NUT |
13607-47070-000 |
from US $1.34 |
||
|
30
|
30
13411-36F00-000 PLUNGER ASSY |
13411-36F00-000 |
from US $44 |
||
|
31
|
31
13602-05A10-000 SCREW |
13602-05A10-000 |
from US $2.46 |
||
|
32
|
32
13619-42E00-000 CLIP |
13619-42E00-000 |
from US $1.60 |
||
|
33
|
33
09351-35653-600 HOSE(3.5X6.5X600)Hose (3.5x6.5x600) Hose (3.5x6.5x600); L:600->50 |
09351-35653-600 |
from US $2.13 |
||
|
34
|
34
09351-35653-600 HOSE(3.5X6.5X600)Hose (3.5x6.5x600) Hose (3.5x6.5x600); L:600->50 |
09351-35653-600 |
from US $2.13 |
||
|
35
|
35
09351-30503-600
HOSE(3X5X600)
Hose (3x5x600); L:600->00 |
09351-30503-600 |
— | ||
| replacement | |||||
|
35
|
35
09351-30001-600 Hose(3X5X600)Hose (3x5x600); L:600->00 |
09351-30001-600 |
from US $2.74 |
||
|
36
|
36
02112-04083-000
Screw
|
02112-04083-000 |
— | ||
| replacement | |||||
|
36
|
36
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.80 |
||
|
37
|
37
13383-36F00-000
NEEDLE(6BGY23-73)
Needle, jet (6bgy23-73); Opt |
13383-36F00-000 |
— | ||
|
37
|
37
13383-36F10-000
NEEDLE(6BGY24-73)
Needle, jet (6bgy24-73); Opt |
13383-36F10-000 |
— | ||
|
37
|
37
13383-36F20-000
NEEDLE(6BGY23-74)
Needle, jet (6bgy23-74); Opt |
13383-36F20-000 |
— | ||
|
37
|
37
13383-36F30-000
NEEDLE(6BGY24-74)
Needle, jet (6bgy24-74); Opt |
13383-36F30-000 |
— | ||
|
37
|
37
13383-36F40-000 NEEDLE(6BGY23-75)Needle, jet (6bgy23-75); Opt |
13383-36F40-000 |
from US $10.78 |
||
|
37
|
37
13383-36F50-000
NEEDLE(6BGY24-75)
Opt |
13383-36F50-000 |
— | ||
|
37
|
37
13383-36F60-000
Needle, jet (n8rg)
Needle, jet (6bgy23-76); Opt |
13383-36F60-000 |
— | ||
|
37
|
37
13383-36F70-000
Needle, jet (n2zg)
Needle, jet (6bgy24-76); Opt |
13383-36F70-000 |
— | ||
|
37
|
37
13383-36F80-000
Needle, jet (6bgy23-77)
Needle, jet (6bgy23-77); Opt |
13383-36F80-000 |
— | ||
|
37
|
37
13383-36F90-000
NEEDLE(6BGY24-77)
Opt |
13383-36F90-000 |
— | ||
|
38
|
38
09491-80010-000 JET,MAIN(400)Jet,main (400) Jet, main (400); Opt |
09491-80010-000 |
from US $7.43 |
||
|
38
|
38
09491-82007-000 JET,MAIN(410)Jet,main (410) Jet, main (410); Opt |
09491-82007-000 |
from US $8.02 |
||
|
38
|
38
09491-84008-000 JET,MAIN(420)Jet, main (420) Jet, main (420); Opt |
09491-84008-000 |
from US $11.19 |
||
|
38
|
38
09491-86002-000 JET,MAIN (#430)Jet,main (430) Jet, main (430); Opt |
09491-86002-000 |
from US $7.43 |
||
|
38
|
38
09491-88001-000 JET,MAIN(440)Jet, main (440); Opt |
09491-88001-000 |
from US $11.19 |
||
|
38
|
38
09491-90005-000 JET,MAIN(450)Jet, main (450) Jet, main (450); Opt |
09491-90005-000 |
from US $11.19 |
||
|
38
|
38
09491-92002-000 JET,MAIN(460)Jet, main (460) Jet, main (460); Opt |
09491-92002-000 |
from US $5.18 |
||
|
38
|
38
09491-94004-000 JET,MAIN(470)Jet, main (470) Jet, main (470); Opt |
09491-94004-000 |
from US $11.19 |
||
|
38
|
38
09491-96001-000 JET,MAIN(480)Jet, main (480) Jet, main (480); Opt |
09491-96001-000 |
from US $11.19 |
||
|
38
|
38
09491-98001-000 JET,MAIN(490)Jet, main (490) Jet, main (490); Opt |
09491-98001-000 |
from US $11.19 |
||
|
38
|
38
09491-10001-000 JET,MAIN(500)Jet, main (500) Jet, main (500); Opt |
09491-10001-000 |
from US $11.19 |
||
|
38
|
38
09491-52008-000
JET,MAIN(520)
Jet, main (520); Opt |
09491-52008-000 |
— | ||
|
38
|
38
09491-54003-000 JET,MAIN(540)Jet, main (540) Jet, main (540); Opt |
09491-54003-000 |
US $8.68 |
||
|
38
|
38
09491-56005-000
JET,MAIN(560)
Jet, main (560); Opt |
09491-56005-000 |
— | ||
|
38
|
38
09491-58007-000 JET,MAIN(580)Jet, main (580) Jet, main (580); Opt |
09491-58007-000 |
US $8.68 |
||
|
38
|
38
09491-60013-000
JET,MAIN(600)
Jet, main (600); Opt |
09491-60013-000 |
— | ||
|
39
|
39
09492-25011-000 JET,PILOT(25)Jet, pilot (25); Opt |
09492-25011-000 |
from US $11.19 |
||
|
39
|
39
09492-27011-000 JET,PILOT(27.5)Jet, pilot (27.5) Jet, pilot (27.5); Opt |
09492-27011-000 |
from US $11.56 |
||
|
39
|
39
09492-30014-000 JET,PILOT(30)Jet, pilot (30); Opt |
09492-30014-000 |
from US $11.19 |
||
|
39
|
39
09492-32010-000 JET,PILOT(32.5)Jet, pilot (32.5) Jet, pilot (32.5); Opt |
09492-32010-000 |
from US $11.41 |
||
|
39
|
39
09492-35021-000 JET,PILOT(35)Jet, pilot (35); Opt |
09492-35021-000 |
from US $11.19 |
||
