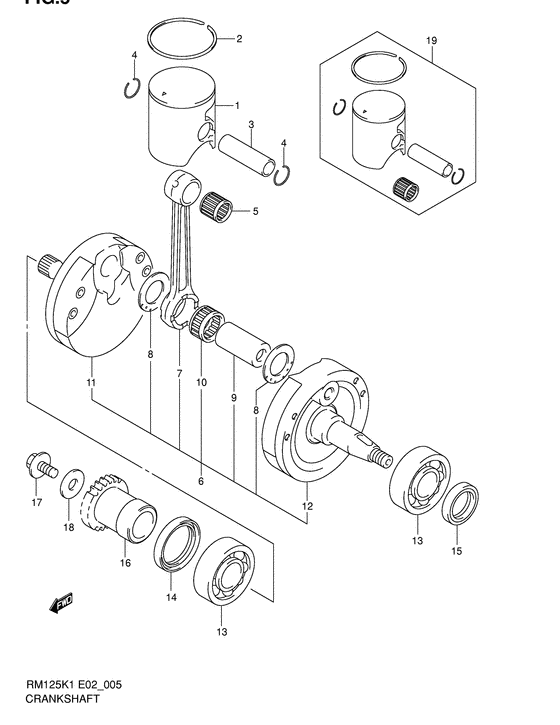

Crankshaft Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12110-36E30-0F0
Piston
Model k1 |
12110-36E30-0F0 |
— | ||
| replacement | |||||
|
1
|
1
12110-36E31-0F0
PISTON
Model k1 |
12110-36E31-0F0 |
— | ||
|
1
|
1
12110-36E31-0F0
PISTON
Model k2 |
12110-36E31-0F0 |
— | ||
|
2
|
2
12141-36E01-000 RING,PISTONRing, piston |
12141-36E01-000 |
from US $29.93 |
||
|
3
|
3
12151-01B41-000 PIN,PISTONPin, piston |
12151-01B41-000 |
from US $20 |
||
|
4
|
4
09381-15001-000 CIRCLIPCirclip |
09381-15001-000 |
from US $1.06 |
||
|
5
|
5
09263-15040-000 BEARING(15X19X20)Bearing, piston pin Bearing, piston pin; |
09263-15040-000 |
from US $15.79 |
||
|
6
|
6
12200-36F00-000
Crankshaft assy
Model k1 |
12200-36F00-000 |
— | ||
| replacement | |||||
|
6
|
6
12200-36F01-000
CRANKSHAFT ASSY
Model k1 |
12200-36F01-000 |
— | ||
|
6
|
6
12200-36F01-000
CRANKSHAFT ASSY
Model k2 |
12200-36F01-000 |
— | ||
|
7
|
7
12161-36E11-000
Rod, connecting
Model k1 |
12161-36E11-000 |
— | ||
| replacement | |||||
|
7
|
7
12161-36E12-000 CONNECTING RODModel k1 |
12161-36E12-000 |
from US $106.85 |
||
|
7
|
7
12161-36E12-000 CONNECTING RODModel k2 |
12161-36E12-000 |
from US $106.85 |
||
|
8
|
8
09160-22077-000 WASHER(22X36X1.5)Washer |
09160-22077-000 |
from US $23.83 |
||
|
9
|
9
12211-27C00-000 PIN,CRANKPin, crank |
12211-27C00-000 |
from US $26.31 |
||
|
10
|
10
09263-22060-000 BEARING(22X28X16)Bearing (22x28x16); |
09263-22060-000 |
from US $55.48 |
||
|
11
|
11
12220-36F00-000
CRANKSHAFT,R
|
12220-36F00-000 |
— | ||
|
12
|
12
12260-36F00-000
CRANKSHAFT,L
|
12260-36F00-000 |
— | ||
|
13
|
13
09262-22025-000 BEARING(22X56X16)B1 22x56x16 bearing rh Bearing (22x56x16); |
09262-22025-000 |
from US $34.96 |
||
|
14
|
14
09283-30061-000
SEAL,OIL(30X40X7)
Oil seal, rh (30x40x7); |
09283-30061-000 |
— | ||
| replacement | |||||
|
14
|
14
09283-30076-000 Seal,oil(30X40X7)Oil seal, rh (30x40x7); |
09283-30076-000 |
from US $8.64 |
||
|
15
|
15
09283-18007-000
SEAL,OIL(18X30X7)
Oil seal, lh (18x30x6); |
09283-18007-000 |
— | ||
| replacement | |||||
|
15
|
15
09283-18010-000 Seal,oil(18X30X7)Oil seal, lh (18x30x6); |
09283-18010-000 |
from US $6.72 |
||
|
16
|
16
21111-36E11-000 GEAR,PRIMARY DRIVEGear, primary drive (nt:19); |
21111-36E11-000 |
from US $85.88 |
||
|
17
|
17
21141-27C11-000
Bolt,primary dr
Bolt, primary drive gear; Model k1 |
21141-27C11-000 |
— | ||
| replacement | |||||
|
17
|
17
09103-10339-000 BOLT(10X20)Bolt, primary drive gear; Model k1 |
09103-10339-000 |
from US $8.98 |
||
|
17
|
17
09103-10339-000 BOLT(10X20)Model k2 |
09103-10339-000 |
from US $8.98 |
||
|
18
|
18
09164-11004-000 WASHER |
09164-11004-000 |
from US $1.98 |
||
|
19
|
19
12100-36830-000
Piston kit
Opt model k1 |
12100-36830-000 |
— | ||
| replacements | |||||
|
19
|
19
12100-36831-000
PISTON KIT
Opt model k1 |
12100-36831-000 |
— | ||
|
19
|
19
12100-36840-000
TOP END KIT,ENGINE
Opt model k1 |
12100-36840-000 |
— | ||
|
19
|
19
12100-36831-000
PISTON KIT
Opt model k2 |
12100-36831-000 |
— | ||
|
20
|
20
12110-36E30-0F0
Piston
Model k1, not shown |
12110-36E30-0F0 |
— | ||
| replacement | |||||
|
20
|
20
12110-36E31-0F0
PISTON
Model k1, not shown |
12110-36E31-0F0 |
— | ||
|
20
|
20
12110-36E31-0F0
PISTON
Model k2, not shown |
12110-36E31-0F0 |
— | ||
|
21
|
21
12141-36E01-000 RING,PISTONRing, piston Not shown |
12141-36E01-000 |
from US $29.93 |
||
|
22
|
22
12151-01B41-000 PIN,PISTONPin, piston Not shown |
12151-01B41-000 |
from US $20 |
||
|
23
|
23
09263-15040-000 BEARING(15X19X20)Bearing, piston pin Not shown |
09263-15040-000 |
from US $15.79 |
||
|
24
|
24
09381-15001-000 CIRCLIPCirclip Not shown |
09381-15001-000 |
from US $1.06 |
||
