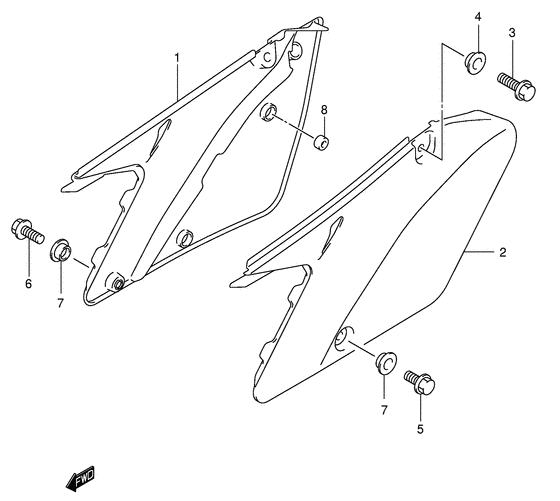

Frame cover Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-36F00-YR1
Cover, frame rh (yellow)
Cover, frame rh (yellow); Model k1 |
47111-36F00-YR1 |
— | ||
| replacement | |||||
|
1
|
1
47111-36F01-YU1 COVER,FRAME,R(YELLOW)Cover, frame rh (yellow); Model k1 |
47111-36F01-YU1 |
US $113.66 |
||
|
1
|
1
47111-36F01-YU1 COVER,FRAME,R(YELLOW)Cover, frame rh (yellow); Model k2 |
47111-36F01-YU1 |
US $113.66 |
||
|
2
|
2
47211-36F00-YR1
Cover, frame lh (yellow)
Cover, frame lh (yellow); Model k1 |
47211-36F00-YR1 |
— | ||
| replacement | |||||
|
2
|
2
47211-36F01-YU1 COVER,FRAME,L(YELLOW)Cover, frame lh (yellow); Model k1 |
47211-36F01-YU1 |
US $116.48 |
||
|
2
|
2
47211-36F01-YU1 COVER,FRAME,L(YELLOW)Cover, frame lh (yellow); Model k2 |
47211-36F01-YU1 |
US $116.48 |
||
|
3
|
3
01547-06203-000
Bolt (6x20)
Bolt, seat; Model k1 |
01547-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01547-0620B-000 BOLTBolt, seat; Model k1 |
01547-0620B-000 |
from US $0.76 |
||
|
3
|
3
09116-06188-000 Bolt, seatBolt, seat; Model k2 |
09116-06188-000 |
from US $2.96 |
||
| replacement | |||||
|
3
|
3
09116-06182-000 BOLT(6X20)Bolt (6x20) Bolt, seat; Model k2 |
09116-06182-000 |
from US $1.22 |
||
|
4
|
4
53112-37F00-000
Washer, seat
|
53112-37F00-000 |
— | ||
| replacement | |||||
|
4
|
4
53112-37F01-000 WASHER |
53112-37F01-000 |
from US $6.29 |
||
|
5
|
5
01547-06123-000
Bolt
Bolt, front lh; Model k1 |
01547-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01547-0612B-000 BOLTBolt, front lh; Model k1 |
01547-0612B-000 |
from US $0.77 |
||
|
5
|
5
01547-0616B-000 BOLTBolt, front lh; Model k1 |
01547-0616B-000 |
from US $0.76 |
||
|
5
|
5
09103-06233-000 BOLT(6X12)Bolt, rear Bolt, front lh; Model k2 |
09103-06233-000 |
from US $0.91 |
||
|
6
|
6
01547-06163-000
Bolt (green)
Bolt, front rh; Model k1 |
01547-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
01547-0616B-000 BOLTBolt, front rh; Model k1 |
01547-0616B-000 |
from US $0.76 |
||
|
6
|
6
09103-06234-000 BOLT(6X16)Bolt, chain guide Bolt, front rh; Model k2 |
09103-06234-000 |
from US $0.81 |
||
|
7
|
7
09169-06054-000
Washer
Washer, front; |
09169-06054-000 |
— | ||
| replacement | |||||
|
7
|
7
09169-06053-000 WASHERWasher, front; |
09169-06053-000 |
from US $0.91 |
||
|
8
|
8
47161-37F00-000 CUSHION,FRAME COVER,R |
47161-37F00-000 |
from US $9.62 |
||
