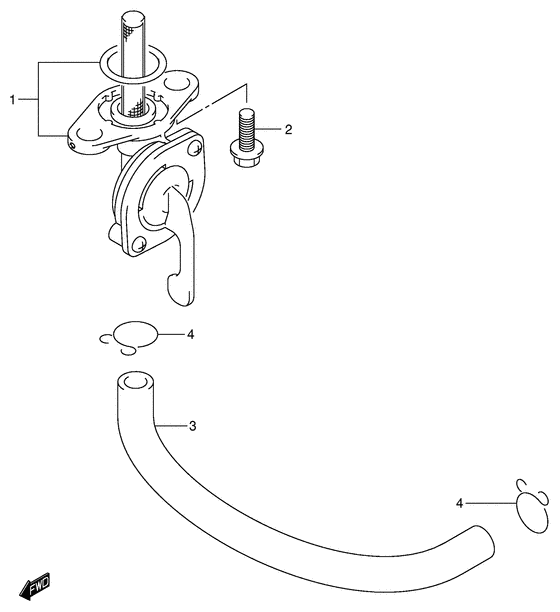

Fuel cock Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44300-28E10-000 COCK ASSY,FUELCock assy, fuel |
44300-28E10-000 |
from US $66.50 |
||
|
2
|
2
01547-06163-000
Bolt (green)
Model k1 |
01547-06163-000 |
— | ||
| replacement | |||||
|
2
|
2
01547-0616B-000 BOLTModel k1 |
01547-0616B-000 |
from US $0.76 |
||
|
2
|
2
09103-06234-000 BOLT(6X16)Bolt, chain guide Model k2 |
09103-06234-000 |
from US $0.81 |
||
|
3
|
3
44421-37F00-000
HOSE,FUEL
|
44421-37F00-000 |
— | ||
| replacement | |||||
|
3
|
3
44421-37F01-000 Hose,fuel |
44421-37F01-000 |
from US $6.59 |
||
|
4
|
4
09401-11101-000 CLIP |
09401-11101-000 |
from US $1.07 |
||
