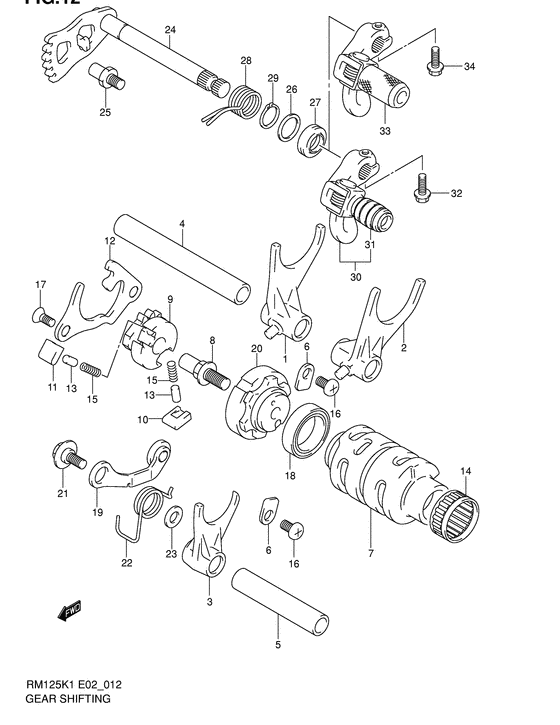

Gear shifting Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-36E10-000 FORK,GEAR SHIFT NO.1Fork, no.1 |
25211-36E10-000 |
from US $56.67 |
||
|
2
|
2
25221-36E10-000 FORK,GEAR SHIFT NO.2Fork, no.2 |
25221-36E10-000 |
from US $95.15 |
||
|
3
|
3
25231-36E10-000 FORK,GEAR SHIFT NO.3Fork, no.3 |
25231-36E10-000 |
from US $56.67 |
||
|
4
|
4
25411-27C01-000
Shaft,gear shif
Shaft, no.1 (l:95); |
25411-27C01-000 |
— | ||
| replacement | |||||
|
4
|
4
25411-37F20-000 SHAFT,GEAR SHIFT FORK(L:95)Shaft, gear shift fork (l:95) Shaft, no.1 (l:95); |
25411-37F20-000 |
from US $10.82 |
||
|
5
|
5
25421-27C01-000 SHAFT,GEAR SHIFT FORK(L:60)Shaft, gear fork no.2 Shaft, no.2 (l:60); |
25421-27C01-000 |
from US $11.84 |
||
|
6
|
6
24741-21A00-000 RETAINERRetainer, shaft cam bearing; |
24741-21A00-000 |
from US $1.60 |
||
|
7
|
7
25310-36F00-000 CAM,GEAR SHIFT |
25310-36F00-000 |
from US $127.70 |
||
|
8
|
8
25313-27C02-000 PIN,SHIFT CAM DRIVEN GEAR |
25313-27C02-000 |
from US $6.40 |
||
|
9
|
9
25322-31310-000 GEAR,GEAR SHIFT CAM DRIVENShifter, gear shift; |
25322-31310-000 |
from US $15.96 |
||
|
10
|
10
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 Pawl, gear shift no.1; |
25323-34201-000 |
from US $6.23 |
||
|
11
|
11
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 Pawl, gear shift no.2; |
25324-34201-000 |
from US $6.23 |
||
|
12
|
12
25331-28C00-000 LIFTER,GEAR SHIFT POLELifter, pawl |
25331-28C00-000 |
from US $15.01 |
||
|
13
|
13
09261-05003-000 PIN(5X8)Pin Pin, shift pawl; |
09261-05003-000 |
from US $1.22 |
||
|
14
|
14
09263-25018-000 BEARING(25X32X12)Bearing, shift cam lh Bearing, shift cam lh; 25x32x12 |
09263-25018-000 |
from US $12.64 |
||
|
15
|
15
09440-04003-000 SPRINGSpring; |
09440-04003-000 |
from US $1.06 |
||
|
16
|
16
02112-06103-000
Screw 6x10
Screw, shift cam retainer; |
02112-06103-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0610B-000 SCREWScrew, shift cam retainer; |
02112-0610B-000 |
from US $0.76 |
||
|
17
|
17
02122-06123-000
Screw
Screw, shift pawl lifter; |
02122-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02122-0612B-000 SCREWScrew, shift pawl lifter; |
02122-0612B-000 |
from US $0.80 |
||
|
17
|
17
02122-0612A-000 SCREWScrew, shift pawl lifter; |
02122-0612A-000 |
from US $0.80 |
||
|
18
|
18
08140-69050-000 BEARINGBearing, gear shift cam, r Bearing, shift cam rh; |
08140-69050-000 |
from US $14 |
||
|
19
|
19
25350-28C20-000 STOPPER,SHIFT CAMStopper, cam Stopper, shift cam; |
25350-28C20-000 |
from US $12.99 |
||
|
20
|
20
25381-36E00-000
PLATE,SHIFT CAM STOPPER
|
25381-36E00-000 |
— | ||
|
21
|
21
09111-06041-000 BOLT(6X14.3)Bolt, sub t/m shift cam |
09111-06041-000 |
from US $4 |
||
|
22
|
22
09448-18024-000 SPRING |
09448-18024-000 |
from US $3.96 |
||
|
23
|
23
08211-06121-000 WASHERWasher, shift cam stopper |
08211-06121-000 |
from US $2.45 |
||
|
24
|
24
25510-36F00-000 SHAFT,GEAR SHIFT |
25510-36F00-000 |
from US $57.04 |
||
|
25
|
25
25671-38B00-000 STOPPER,SHIFT ARMStopper, gear shift arm Stopper, gear shift arm; Model k1 |
25671-38B00-000 |
from US $2.58 |
||
|
25
|
25
25671-37F00-000 STOPPER,GEAR SHIFT ARMModel k2 |
25671-37F00-000 |
from US $1.92 |
||
|
26
|
26
09181-14139-000 SHIM(14X20X1)Washer, gear shaft Washer (14x20x1); |
09181-14139-000 |
from US $1.82 |
||
|
27
|
27
09283-14006-000 SEAL,OIL(14X22X6)Seal, shift shaft (14x22x6); |
09283-14006-000 |
from US $3.74 |
||
|
28
|
28
09444-20004-000 SPRINGSpring, shift return; |
09444-20004-000 |
from US $10.37 |
||
|
29
|
29
08331-31146-000
Circlip
Circlip, gear shift; |
08331-31146-000 |
— | ||
| replacement | |||||
|
29
|
29
08331-3114A-000 CIRCLIPCirclip, sub t/m gr shift Circlip, gear shift; |
08331-3114A-000 |
from US $0.91 |
||
|
30
|
30
25600-36F00-000
Lever assy, gear shift
Model k1 |
25600-36F00-000 |
— | ||
| replacement | |||||
|
30
|
30
25600-36F10-000 LEVER ASSY,GEAR SHIFTModel k1 |
25600-36F10-000 |
from US $93.64 |
||
|
31
|
31
25652-27C00-000
RUBBER,GEAR SHIFT PEDAL
Model k1 |
25652-27C00-000 |
— | ||
| replacement | |||||
|
31
|
31
25652-27C01-000 Rubber,gear Shift PedalModel k1 |
25652-27C01-000 |
from US $26.21 |
||
|
32
|
32
01547-06203-000
Bolt (6x20)
Model k1 |
01547-06203-000 |
— | ||
| replacement | |||||
|
32
|
32
01547-0620B-000 BOLTModel k1 |
01547-0620B-000 |
from US $0.76 |
||
|
33
|
33
25600-36F10-000 LEVER ASSY,GEAR SHIFTModel k2 |
25600-36F10-000 |
from US $93.64 |
||
|
34
|
34
09103-06235-000
Bolt, lh
Bolt (6x20); Model k2 |
09103-06235-000 |
— | ||
| replacement | |||||
|
34
|
34
01547-06207-000 BoltBolt, lower Bolt (6x20); Model k2 |
01547-06207-000 |
from US $0.80 |
||
