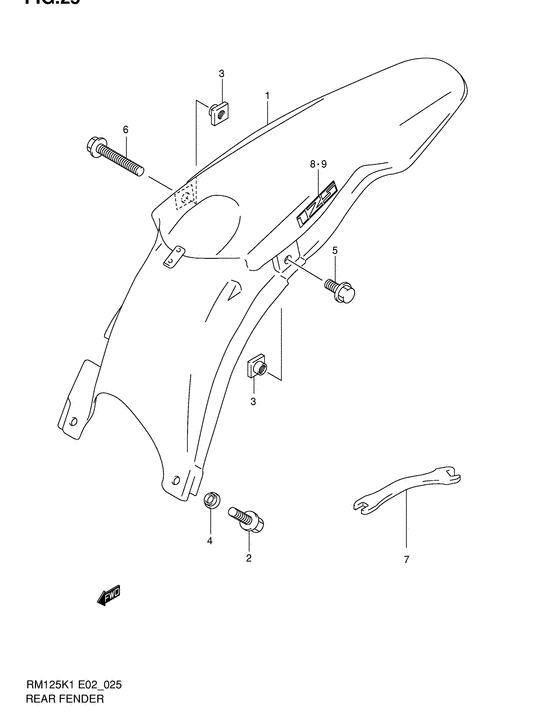

Rear fender Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-37F00-YR1
Fender, rear (yellow)
Fender, rear (yellow); Model k1 |
63111-37F00-YR1 |
— | ||
| replacement | |||||
|
1
|
1
63111-37F00-YU1 FENDER,RRFender, rear (yellow); Model k1 |
63111-37F00-YU1 |
from US $98 |
||
|
1
|
1
63111-37F00-YU1 FENDER,RRFender, rear (yellow); Model k2 |
63111-37F00-YU1 |
from US $98 |
||
|
2
|
2
01547-06203-000
Bolt (6x20)
Bolt, front; Model k1 |
01547-06203-000 |
— | ||
| replacement | |||||
|
2
|
2
01547-0620B-000 BOLTBolt, front; Model k1 |
01547-0620B-000 |
from US $0.76 |
||
|
2
|
2
09103-06235-000
Bolt, lh
Bolt, front; Model k2 |
09103-06235-000 |
— | ||
| replacement | |||||
|
2
|
2
01547-06207-000 BoltBolt, lower Bolt, front; Model k2 |
01547-06207-000 |
from US $0.80 |
||
|
3
|
3
09152-06024-000 NUTNut, rear fender; |
09152-06024-000 |
from US $5.39 |
||
|
4
|
4
09169-06054-000
Washer
Washer; |
09169-06054-000 |
— | ||
| replacement | |||||
|
4
|
4
09169-06053-000 WASHERWasher; |
09169-06053-000 |
from US $0.91 |
||
|
5
|
5
01547-06163-000
Bolt (green)
Bolt, rear lh; Model k1 |
01547-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
01547-0616B-000 BOLTBolt, rear lh; Model k1 |
01547-0616B-000 |
from US $0.76 |
||
|
5
|
5
09103-06234-000 BOLT(6X16)Bolt, chain guide Bolt, rear lh; Model k2 |
09103-06234-000 |
from US $0.81 |
||
|
6
|
6
01547-06353-000
Bolt (6x35)
Bolt, lh; Model k1 |
01547-06353-000 |
— | ||
| replacement | |||||
|
6
|
6
01547-0635B-000 BoltBolt, lh; Model k1 |
01547-0635B-000 |
from US $0.91 |
||
|
6
|
6
09103-06235-000
Bolt, lh
Bolt, lh; Model k2 |
09103-06235-000 |
— | ||
| replacement | |||||
|
6
|
6
01547-06207-000 BoltBolt, lower Bolt, lh; Model k2 |
01547-06207-000 |
from US $0.80 |
||
|
7
|
7
09813-00039-000 SPANNER,OPENOpen spanner Open spanner (6.4x6.8); |
09813-00039-000 |
from US $7.95 |
||
|
8
|
8
68175-36F00-GY8 TAPE,RR FENDER,RModel k2 |
68175-36F00-GY8 |
from US $11.59 |
||
|
9
|
9
68176-36F00-GY8 TAPE,RR FENDER,LModel k2 |
68176-36F00-GY8 |
from US $9.64 |
||
