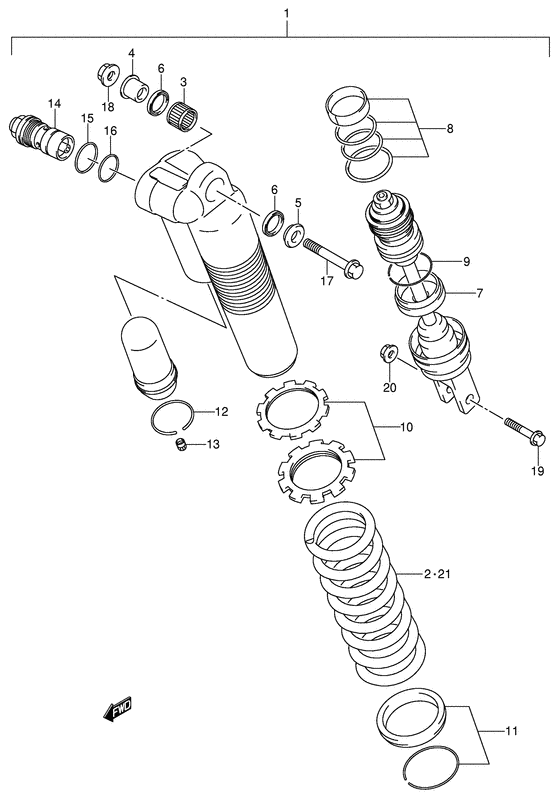

Rear shock absorber Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-36F10-37W
ABSORBER ASSY,RR SHOCK
Model k1 |
62100-36F10-37W |
— | ||
|
1
|
1
62100-36F40-37W
ABSORBER ASSY,RR SHOCK
Absorber assy, rr shock (red); Model k2 |
62100-36F40-37W |
— | ||
|
2
|
2
62211-36F10-000
SPRING,RR(K=4.8)
|
62211-36F10-000 |
— | ||
|
3
|
3
09263-16033-000 BEARING(16X22X12)Bearing (16x22x12); |
09263-16033-000 |
from US $9.73 |
||
|
4
|
4
62684-36F00-000 SPACER,UPPER BRG,RSpacer, fr shock abs, r |
62684-36F00-000 |
from US $10.03 |
||
|
5
|
5
62685-36F00-000 SPACER,UPPER BRG,LSpacer, fr shock abs, l |
62685-36F00-000 |
from US $7.30 |
||
|
6
|
6
09284-16005-000 SEAL,OIL(16X22X2.5)Seal, fr shock abs dust Seal, dust rh; |
09284-16005-000 |
from US $4.10 |
||
|
7
|
7
62120-36F10-000
ROD,PISTON
Model k1 |
62120-36F10-000 |
— | ||
|
7
|
7
62120-36F40-000
ROD,PISTON
Model k2 |
62120-36F40-000 |
— | ||
|
8
|
8
62150-36EB0-000 O RING SET |
62150-36EB0-000 |
from US $38.76 |
||
|
9
|
9
62279-36E80-000 RING,STOPPER |
62279-36E80-000 |
from US $4.16 |
||
|
10
|
10
62190-36F00-000 ADJUSTER SET |
62190-36F00-000 |
from US $61.46 |
||
|
11
|
11
62220-36F00-000 SPRING SEAT SET |
62220-36F00-000 |
from US $20.80 |
||
|
12
|
12
62278-36E00-000 RING,STOPPER |
62278-36E00-000 |
from US $4.64 |
||
|
13
|
13
51294-20400-000 CAP |
51294-20400-000 |
from US $3.46 |
||
|
14
|
14
62130-36F10-000
BOLT,PLUG
Model k1 |
62130-36F10-000 |
— | ||
|
14
|
14
62130-36F30-000
BOLT,PLUG
Model k2 |
62130-36F30-000 |
— | ||
|
15
|
15
62131-28E00-000 O RINGO ring, outer |
62131-28E00-000 |
from US $2.72 |
||
|
16
|
16
51174-43D00-000 O RING,CTR BOLT UPRO ring, inner |
51174-43D00-000 |
from US $3.20 |
||
|
17
|
17
09103-10329-000 BOLT(10X60) |
09103-10329-000 |
from US $7.48 |
||
|
18
|
18
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
18
|
18
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
19
|
19
09103-10325-000 BOLT(10X44.5)Bolt, lower |
09103-10325-000 |
from US $6.26 |
||
|
20
|
20
09159-10067-000 NUT |
09159-10067-000 |
from US $9.52 |
||
|
21
|
21
62211-36EB0-000 SPRING,RR(K=4.6)Spring (soft,k=4.6) Model k1/k2 opt |
62211-36EB0-000 |
US $294.40 |
||
|
21
|
21
62211-36F00-000
Spring (hard,k=5.0)
Model k1/k2 opt |
62211-36F00-000 |
— | ||
|
21
|
21
62211-36E80-000 SPRING,RR(K=5.2)Spring (hard,k=5.2) Spring (hard,k=5.2); Model k2 opt |
62211-36E80-000 |
from US $294.40 |
||
