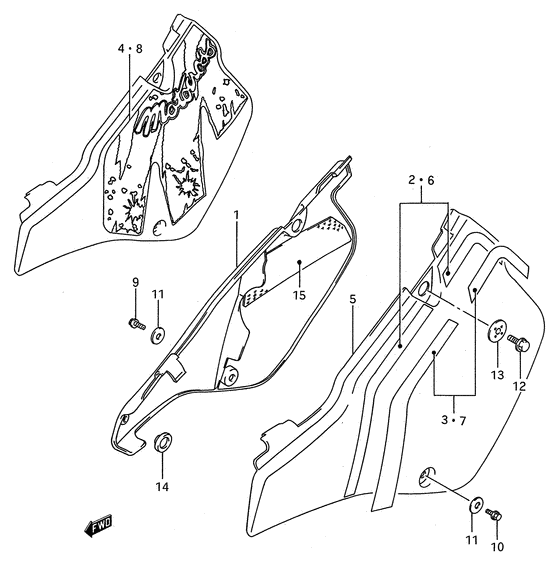

Frame cover Diagram Suzuki RM125
- Year
- 1990
- Model code
- RM125L(E28) L
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-27C01-25Y
Cover, frame rh (yellow)
|
47111-27C01-25Y |
— | ||
| replacement | |||||
|
1
|
1
47111-27C02-25Y
Cover,frame,r
|
47111-27C02-25Y |
— | ||
|
2
|
2
68132-27C00-33N
Emblem, rh (blue)
Model k |
68132-27C00-33N |
— | ||
| replacement | |||||
|
2
|
2
68132-27C10-34S
Tape set,frm c0
Model k |
68132-27C10-34S |
— | ||
|
3
|
3
68132-27C10-34S
Tape set,frm c0
Tape, rh (blue); Model l |
68132-27C10-34S |
— | ||
|
4
|
4
68132-27C20-0ZJ
Tape, rh (blue)
Tape, rh (blue); Model m |
68132-27C20-0ZJ |
— | ||
|
5
|
5
47211-27C00-25Y
COVER,FRAME,L(YELLOW)
Cover, frame lh (yellow); |
47211-27C00-25Y |
— | ||
|
6
|
6
68142-27C00-33N
Emblem, lh (blue)
Model k |
68142-27C00-33N |
— | ||
| replacement | |||||
|
6
|
6
68142-27C10-34S
Tape set,frm co
Model k |
68142-27C10-34S |
— | ||
|
7
|
7
68142-27C10-34S
Tape set,frm co
Tape, lh (blue); Model l |
68142-27C10-34S |
— | ||
|
8
|
8
68142-27C20-0ZJ
Tape set,lh
Tape, lh (blue); Model m |
68142-27C20-0ZJ |
— | ||
|
9
|
9
01547-06127-000 BOLTBolt, under oil seal plate Bolt, front; |
01547-06127-000 |
from US $2.62 |
||
|
10
|
10
01547-06167-000 BOLTBolt, fastener bracket Bolt, front lh; |
01547-06167-000 |
from US $0.80 |
||
|
11
|
11
09168-06027-000 GASKET(6.5X20X1.5)Washer (6.5x20x1.5) |
09168-06027-000 |
from US $1.52 |
||
|
12
|
12
01107-08207-000 Bolt, rear |
01107-08207-000 |
US $2.38 |
||
| replacement | |||||
|
12
|
12
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
13
|
13
09169-08045-000 WASHERWasher, rear Washer, rear; |
09169-08045-000 |
from US $1.68 |
||
|
14
|
14
09321-10018-000 CUSHIONCushion, muffler rear; Model k |
09321-10018-000 |
from US $2.13 |
||
|
14
|
14
09321-10024-000 CUSHIONCushion, muffler rear; Model l/m |
09321-10024-000 |
from US $2.65 |
||
|
15
|
15
47166-27C00-000
Heat shield, rh
Model k/l |
47166-27C00-000 |
— | ||
| replacement | |||||
|
15
|
15
47167-28C10-000
SHIELD,FRAME COVER,R HEAT NO.2
Model k/l |
47167-28C10-000 |
— | ||
|
15
|
15
47166-27C01-000
Heat shield, rh
Model m |
47166-27C01-000 |
— | ||
| replacement | |||||
|
15
|
15
47167-28C10-000
SHIELD,FRAME COVER,R HEAT NO.2
Model m |
47167-28C10-000 |
— | ||
