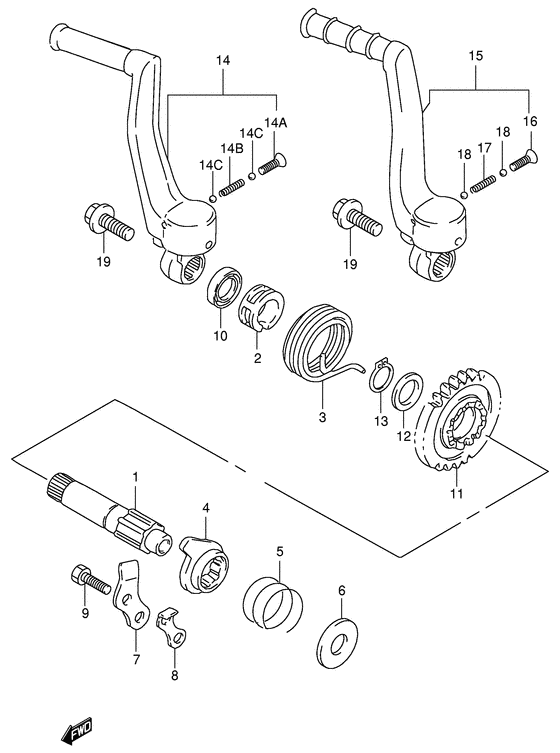

Kick starter Diagram Suzuki RM125
- Year
- 1998
- Model code
- RM125W(E2) W
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26211-27C01-000
Shaft, kick starter
|
26211-27C01-000 |
— | ||
| replacement | |||||
|
1
|
1
26211-27C02-000 SHAFT,KICK STARTER |
26211-27C02-000 |
from US $71.39 |
||
|
2
|
2
26221-27C00-000 GUIDE,KICK STARTER SFT SPRINGGuide, spring |
26221-27C00-000 |
from US $3.53 |
||
|
3
|
3
09448-45013-000 SPRING |
09448-45013-000 |
from US $10.41 |
||
|
4
|
4
26231-02B01-000
Starter, kick
|
26231-02B01-000 |
— | ||
| replacement | |||||
|
4
|
4
26231-02B02-000 STARTER,KICK |
26231-02B02-000 |
from US $17.66 |
||
|
5
|
5
09440-31002-000 SPRING |
09440-31002-000 |
from US $2.91 |
||
|
6
|
6
08211-12301-000 WASHERThrust washer |
08211-12301-000 |
from US $3.21 |
||
|
7
|
7
26232-40200-000 GUIDE,KICK STARTERGuide, kick starter Guide, kick starter; |
26232-40200-000 |
from US $3.46 |
||
|
8
|
8
26233-40200-000
Stopper
Stopper, kick starter; Model t |
26233-40200-000 |
— | ||
| replacement | |||||
|
8
|
8
26233-40201-000 STOPPER,KICK STARTERStopper, kick starter Stopper, kick starter; Model t |
26233-40201-000 |
from US $2.69 |
||
|
8
|
8
26233-40201-000 STOPPER,KICK STARTERStopper, kick starter Model v |
26233-40201-000 |
from US $2.69 |
||
|
9
|
9
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
10
|
10
09283-16004-000 SEAL,OIL(15.8X24X5)Oil seal (15.8x24x5) Oil seal (15.8x24x5); |
09283-16004-000 |
from US $3.75 |
||
|
11
|
11
26241-43D00-000
Gear, kick drive (nt:27)
Model t/v/w/x |
26241-43D00-000 |
— | ||
| replacement | |||||
|
11
|
11
26241-43D01-000 GEAR,KICK STARTER DRIIVEGear, kick drive (nt:27) Model t/v/w/x |
26241-43D01-000 |
from US $70.29 |
||
|
11
|
11
26241-43D01-000 GEAR,KICK STARTER DRIIVEGear, kick drive (nt:27) Gear, kick drive (nt:27); Model y |
26241-43D01-000 |
from US $70.29 |
||
|
12
|
12
08221-16245-000 ShimThrust washer Washer; Model t |
08221-16245-000 |
US $3.68 |
||
| replacement | |||||
|
12
|
12
09181-16158-000 SHIM(16X24X0.5)Washer; Model t |
09181-16158-000 |
from US $4.13 |
||
|
12
|
12
09181-16158-000 SHIM(16X24X0.5)Washer (16x24x0.5); Model v/w/x/y |
09181-16158-000 |
from US $4.13 |
||
|
13
|
13
08331-31166-000
Circlip
|
08331-31166-000 |
— | ||
| replacement | |||||
|
13
|
13
08331-31169-000 CIRCLIP |
08331-31169-000 |
from US $0.91 |
||
|
14
|
14
26300-27C35-000
Lever assy,kick
Model t/v, |
26300-27C35-000 |
— | ||
| replacements | |||||
|
14
|
14
26300-36E10-000
LEVER ASSY,KICK STARTER
Model t/v, |
26300-36E10-000 |
— | ||
| replacement | |||||
|
14
|
14
26300-36E11-000
Lever Assy,kick Starter
Model t/v, |
26300-36E11-000 |
— | ||
|
14
|
14
26300-36E11-000
Lever Assy,kick Starter
Model t/v, |
26300-36E11-000 |
— | ||
|
14A
|
14A
09127-06016-000 SCREW(6X27.5)Screw, kick starter Screw (6x27.5); |
09127-06016-000 |
from US $0.96 |
||
|
14B
|
14B
09440-05031-000 SPRINGSpring, kick starter |
09440-05031-000 |
from US $0.91 |
||
|
14C
|
14C
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
15
|
15
26300-36E10-000
LEVER ASSY,KICK STARTER
Model w/x/y |
26300-36E10-000 |
— | ||
| replacement | |||||
|
15
|
15
26300-36E11-000
Lever Assy,kick Starter
Model w/x/y |
26300-36E11-000 |
— | ||
|
16
|
16
09127-06016-000 SCREW(6X27.5)Screw, kick starter Screw (6x27.5); |
09127-06016-000 |
from US $0.96 |
||
|
17
|
17
09440-05031-000 SPRINGSpring, kick starter |
09440-05031-000 |
from US $0.91 |
||
|
18
|
18
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
19
|
19
09103-08253-000 BOLT(8X14)Bolt, kick starter lever Bolt (8x14); |
09103-08253-000 |
from US $1.52 |
||
