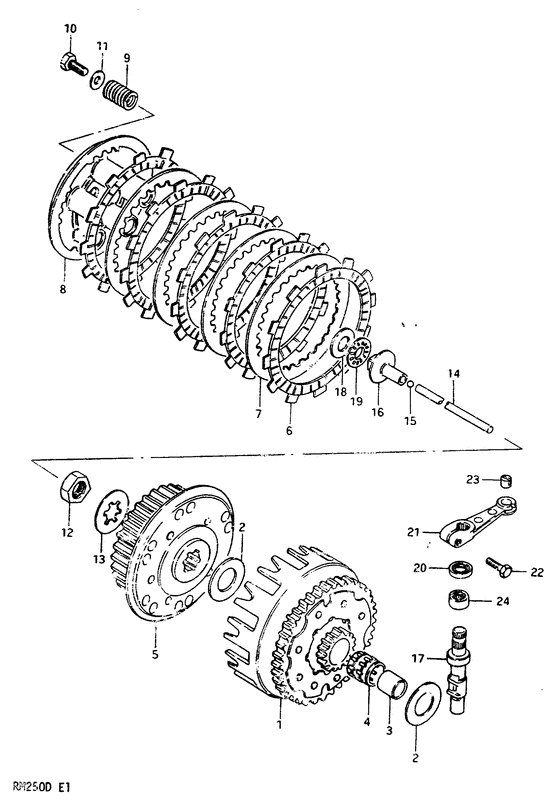

Clutch Diagram Suzuki RM250
- Year
- 1983
- Model code
- RM250D(Z/D) D
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-14300-000
Gear,primary dr
Nt:60/18 model z |
21200-14300-000 |
— | ||
|
1
|
1
21200-14311-000
Gear,primary dr
Nt:59/18 model d |
21200-14311-000 |
— | ||
|
2
|
2
09160-20028-000
WASHER(20X38X2)
|
09160-20028-000 |
— | ||
|
3
|
3
09180-20025-000
Spacer
|
09180-20025-000 |
— | ||
| replacement | |||||
|
3
|
3
09180-20076-000
Spacer,pri dr g
|
09180-20076-000 |
— | ||
|
4
|
4
09263-25004-000
Bearing
|
09263-25004-000 |
— | ||
|
5
|
5
21411-14300-000
Hub,clutch slee
Hub,clutch sleeve; |
21411-14300-000 |
— | ||
|
6
|
6
21441-37400-000 Plate,clutch DrivePlate,drive (id:116) Plate,clutch dr no1; |
21441-37400-000 |
from US $14.90 |
||
|
7
|
7
21451-31000-000 PLATE,CLUTCH DRIVEN(T:2.0)Plate, driven (t:2.0) Plate,clutch driven (iron); |
21451-31000-000 |
from US $9.16 |
||
|
7
|
7
21451-31000-000 PLATE,CLUTCH DRIVEN(T:2.0)Plate, driven (t:2.0) Plate,clutch driven (aluminum); Opt |
21451-31000-000 |
from US $9.16 |
||
|
8
|
8
21462-14301-000 DISC,CLUTCH PRESSUREDisk,clutch pressure; |
21462-14301-000 |
from US $68.09 |
||
|
9
|
9
09440-19007-000 SPRING |
09440-19007-000 |
from US $1.82 |
||
|
10
|
10
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
11
|
11
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
12
|
12
09140-20002-000
Nut
|
09140-20002-000 |
— | ||
| replacement | |||||
|
12
|
12
09140-20001-000 NUT |
09140-20001-000 |
from US $1.82 |
||
|
13
|
13
09167-20009-000 WASHER,LOCKLock washer Racing eng sprt wash; |
09167-20009-000 |
from US $1.82 |
||
|
14
|
14
23111-14300-000 ROD,CLUTCH PUSHRod,clutch push; |
23111-14300-000 |
from US $10.05 |
||
|
15
|
15
06111-08003-000 BALLSteel ball lower Steel ball; |
06111-08003-000 |
from US $0.77 |
||
|
16
|
16
23121-14300-000
Piece clutch pu
|
23121-14300-000 |
— | ||
|
17
|
17
23122-40902-000
Cam shaft clutch rel
Model z |
23122-40902-000 |
— | ||
|
17
|
17
23122-14601-000
Shaft cl releas
Shaft cl release cam; Model d |
23122-14601-000 |
— | ||
|
18
|
18
09160-15045-000 WASHER(15.5X28X1)Washer (15.5x28x1.0) Washer; |
09160-15045-000 |
from US $1.98 |
||
|
19
|
19
09263-15003-000 BEARING(15X28X2)Bearing Rc 15x28x2 brg 4x2; |
09263-15003-000 |
from US $5.62 |
||
|
20
|
20
09285-12004-000 SEAL,OIL(12X19X5)Seal, cl release camshaft Oil seal cl release; |
09285-12004-000 |
from US $5.18 |
||
|
21
|
21
23271-14200-000
ARM,CLUTCH RELEASE
|
23271-14200-000 |
— | ||
|
22
|
22
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
23
|
23
23222-14200-000 PIECE,RELEASE ARM ENDPiece release arm |
23222-14200-000 |
from US $4.31 |
||
|
24
|
24
09263-12014-000 BEARING(12X19X12)Bearing, lh Rc 12x19x12 brg 8x4; Model d |
09263-12014-000 |
from US $9.31 |
||
