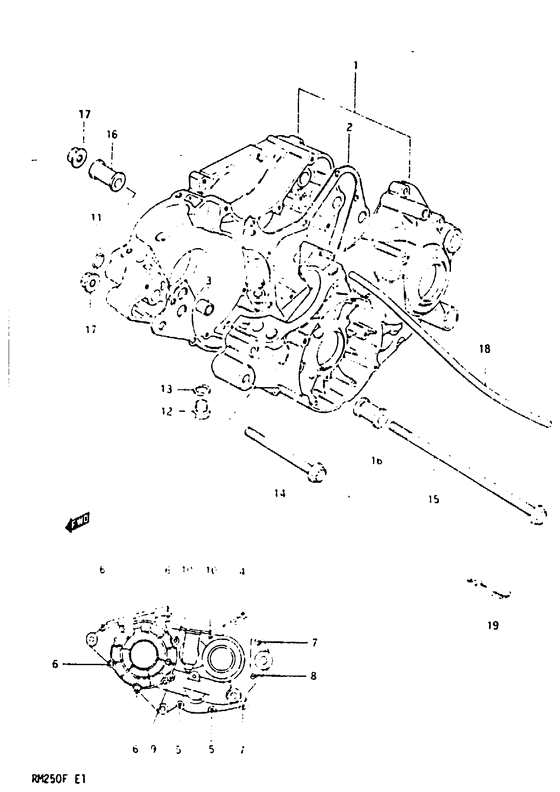

Crankcase Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-14892-000
Crankcase set
Model e |
11300-14892-000 |
— | ||
|
1
|
1
11301-14850-000
Crankcase set
Model f |
11301-14850-000 |
— | ||
|
2
|
2
11481-14300-000 Gasket |
11481-14300-000 |
US $16.29 |
||
| replacement | |||||
|
2
|
2
11481-14300-H17 GASKET,CRANKCASEGasket,crankcase(na) |
11481-14300-H17 |
US $25.15 |
||
|
3
|
3
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
3
|
3
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
4
|
4
02112-06305-000
Screw 6x30
|
02112-06305-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0630B-000 SCREW |
02112-0630B-000 |
US $0.76 |
||
|
4
|
4
02112-0630A-000 SCREW |
02112-0630A-000 |
from US $0.80 |
||
|
5
|
5
02112-06355-000
Screw (6x35)
|
02112-06355-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0635B-000 SCREW |
02112-0635B-000 |
from US $0.77 |
||
|
6
|
6
02112-06455-000
Screw
|
02112-06455-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0645B-000 SCREW |
02112-0645B-000 |
from US $0.77 |
||
|
7
|
7
02112-06505-000
Screw (6*50)
|
02112-06505-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-0650B-000 SCREW |
02112-0650B-000 |
from US $0.80 |
||
|
8
|
8
02112-06555-000
Screw 6x55
|
02112-06555-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0655B-000 SCREW |
02112-0655B-000 |
from US $1.51 |
||
|
9
|
9
02112-06605-000
Screw
|
02112-06605-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0660B-000 SCREW |
02112-0660B-000 |
from US $4.13 |
||
|
10
|
10
02112-06705-000
Vis
|
02112-06705-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0670B-000 SCREW |
02112-0670B-000 |
from US $0.96 |
||
|
11
|
11
09280-14004-000 O RING(D:1.9,ID:13.8)O ring, gear shifting cam |
09280-14004-000 |
from US $1.76 |
||
|
12
|
12
09247-14001-000
Plug, oil drain
Plug, drain; |
09247-14001-000 |
— | ||
| replacement | |||||
|
12
|
12
09247-14002-000 PLUG(MAGNETO)Plug, drain Plug, drain; |
09247-14002-000 |
from US $2.43 |
||
|
13
|
13
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket; |
09168-14004-000 |
from US $1.22 |
||
|
14
|
14
09103-08114-000 BOLT(8X100)Bolt (8x100) Bolt (8*100); |
09103-08114-000 |
from US $9.84 |
||
|
15
|
15
09103-08115-000
BOLT(8X225)
Bolt (8*225); |
09103-08115-000 |
— | ||
|
16
|
16
11611-14230-000
Spacer eng mount l28
|
11611-14230-000 |
— | ||
| replacement | |||||
|
16
|
16
11610-14200-000 SPACER,ENG MTG(L:28)Spacer (l:28) |
11610-14200-000 |
from US $7.54 |
||
|
17
|
17
08319-31088-000
Nut
|
08319-31088-000 |
— | ||
| replacement | |||||
|
17
|
17
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
18
|
18
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
18
|
18
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
18
|
18
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $2.91 |
||
|
19
|
19
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
19
|
19
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
