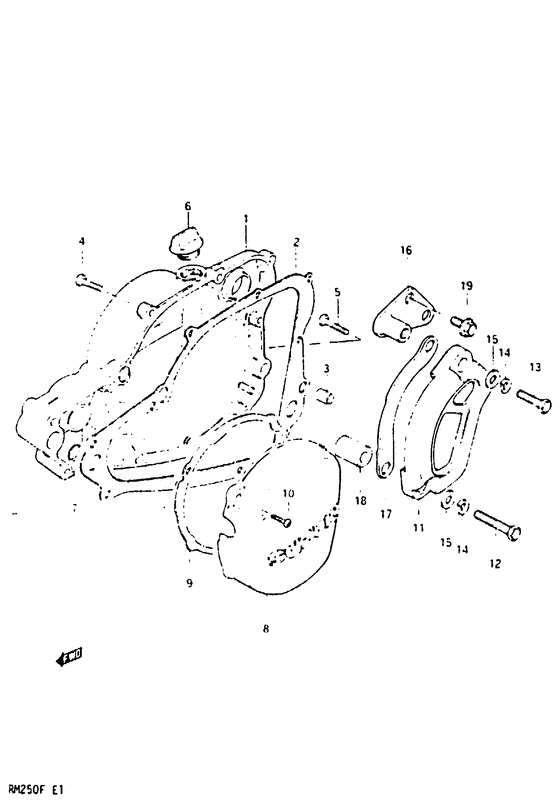

Crankcase cover Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-14300-000
Cover clutch
Cover, clutch; Model e |
11341-14300-000 |
— | ||
|
1
|
1
11341-14610-000
Cover, Clutch
Model f |
11341-14610-000 |
— | ||
|
2
|
2
11482-14300-000
Gasket
|
11482-14300-000 |
— | ||
| replacement | |||||
|
2
|
2
11482-14300-H17
GASKET,CLUTCH COVER
|
11482-14300-H17 |
— | ||
|
3
|
3
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
3
|
3
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
4
|
4
02112-06255-000
Screw 6x25
|
02112-06255-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0625B-000 SCREW |
02112-0625B-000 |
US $0.80 |
||
|
4
|
4
02112-0625A-000 SCREW |
02112-0625A-000 |
from US $0.80 |
||
|
5
|
5
02112-06455-000
Screw
|
02112-06455-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0645B-000 SCREW |
02112-0645B-000 |
from US $0.77 |
||
|
6
|
6
09200-20810-000
PLUG SET
Plug, oil filler; |
09200-20810-000 |
— | ||
| replacement | |||||
|
6
|
6
09200-20811-000 Plug SetPlug, oil filler; |
09200-20811-000 |
from US $2.24 |
||
|
7
|
7
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) O ring; |
09280-17002-000 |
from US $2.56 |
||
|
8
|
8
11351-14300-000
Cover magneto
Model e |
11351-14300-000 |
— | ||
| replacement | |||||
|
8
|
8
11351-40402-000
Cover magneto
Model e |
11351-40402-000 |
— | ||
|
8
|
8
11351-14610-000
Cover, magneto
Model f |
11351-14610-000 |
— | ||
|
9
|
9
11483-14301-000
Gasker
|
11483-14301-000 |
— | ||
| replacement | |||||
|
9
|
9
11483-14301-H17
GASKET,MAGNETO COVER
|
11483-14301-H17 |
— | ||
|
10
|
10
02112-05165-000
Screw
|
02112-05165-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-05164-000 SCREWScrew, rect & relay cover |
02112-05164-000 |
from US $3.59 |
||
|
11
|
11
11360-14600-000
Cover, sprocket
Model e |
11360-14600-000 |
— | ||
| replacement | |||||
|
11
|
11
11360-00BV0-000
COVER,SPROCKET
Model e |
11360-00BV0-000 |
— | ||
|
11
|
11
11360-14610-000
Cover, sprocket
Model f |
11360-14610-000 |
— | ||
| replacement | |||||
|
11
|
11
11360-00BV0-000
COVER,SPROCKET
Model f |
11360-00BV0-000 |
— | ||
|
12
|
12
01107-08555-000
Bolt
|
01107-08555-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0855B-000 BOLT |
01500-0855B-000 |
from US $1.12 |
||
|
13
|
13
01107-08304-000
Bolt 8x30
|
01107-08304-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
14
|
14
08321-21085-000
Lock washer
|
08321-21085-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
15
|
15
08322-11085-000
Washer
|
08322-11085-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
15
|
15
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
16
|
16
27650-14601-000
Bracket
|
27650-14601-000 |
— | ||
|
17
|
17
27641-14601-000
Plate, chain guide
For nt:14 |
27641-14601-000 |
— | ||
|
17
|
17
27641-14611-000
Plate, chain guide
Opt for nt:13 |
27641-14611-000 |
— | ||
|
18
|
18
09180-08109-000
Spacer
|
09180-08109-000 |
— | ||
|
19
|
19
01517-08205-000
Bolt
|
01517-08205-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
19
|
19
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
