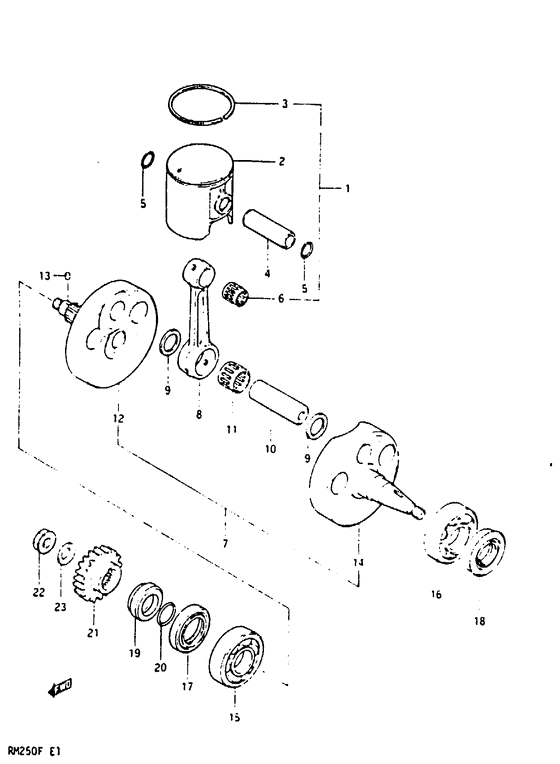

Crankshaft Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12101-14860-000
Piston kit (std)
Piston kit (std); Opt |
12101-14860-000 |
— | ||
|
1
|
1
12101-14860-025
Piston kit (os:0.25)
Piston kit (os:0.25); Opt |
12101-14860-025 |
— | ||
|
1
|
1
12101-14860-050
Piston kit (os:0.25)
Piston kit (os:0.25); Opt |
12101-14860-050 |
— | ||
|
2
|
2
12110-14301-000 PISTON (70.00MM)Piston (std) Piston (std); |
12110-14301-000 |
US $542.08 |
||
|
2
|
2
12110-14301-025
Piston (os:0.25)
Opt |
12110-14301-025 |
— | ||
| replacement | |||||
|
2
|
2
12103-14870-025
New Genuine Part
Opt |
12103-14870-025 |
— | ||
|
2
|
2
12110-14301-050
Piston (os:0.5)
Opt |
12110-14301-050 |
— | ||
| replacement | |||||
|
2
|
2
12103-14830-050
New Genuine Part
Opt |
12103-14830-050 |
— | ||
|
3
|
3
12141-14310-000
Ring, piston (std)
|
12141-14310-000 |
— | ||
| replacement | |||||
|
3
|
3
12141-13A11-000
Ring piston std
|
12141-13A11-000 |
— | ||
|
3
|
3
12141-14310-025
Ring piston (os:0.25)
Opt |
12141-14310-025 |
— | ||
|
3
|
3
12141-14310-050
Ring, piston (os:0.5)
Opt |
12141-14310-050 |
— | ||
| replacement | |||||
|
3
|
3
12141-13A11-050
RING,PISTON
Opt |
12141-13A11-050 |
— | ||
|
4
|
4
12151-15002-000
Pin, piston
|
12151-15002-000 |
— | ||
| replacement | |||||
|
4
|
4
12151-13A00-0A0 PIN,PISTON |
12151-13A00-0A0 |
from US $12.59 |
||
|
5
|
5
09381-18002-000 CIRCLIPCirclip; |
09381-18002-000 |
from US $0.90 |
||
|
6
|
6
09263-18016-000 BEARING(18X23X22)Bearing (18x23x22) From 09263-18011 |
09263-18016-000 |
from US $10.88 |
||
|
7
|
7
12200-14312-000
Crankshaft assy
Model e |
12200-14312-000 |
— | ||
|
7
|
7
12200-14600-000
Crankshaft assy
Model f |
12200-14600-000 |
— | ||
|
8
|
8
12161-14300-000
Rod connecting
Rod, connecting; Model e |
12161-14300-000 |
— | ||
| replacement | |||||
|
8
|
8
12161-41103-000 CONNECTING RODRod, connecting; Model e |
12161-41103-000 |
from US $126.40 |
||
|
8
|
8
12161-14600-000
Rod, connecting
Model f |
12161-14600-000 |
— | ||
| replacement | |||||
|
8
|
8
12161-05D00-000
ROD,CONNECTING
Model f |
12161-05D00-000 |
— | ||
|
9
|
9
09160-24015-000 WASHER(24X29X1.5)Washer Washer; |
09160-24015-000 |
from US $3.05 |
||
|
10
|
10
12211-14301-000
PIN,CRANK
|
12211-14301-000 |
— | ||
|
11
|
11
09263-24019-000
Bearing
|
09263-24019-000 |
— | ||
| replacement | |||||
|
11
|
11
09263-24026-000 BEARING(24X30X20)Bearing |
09263-24026-000 |
from US $54.72 |
||
|
12
|
12
12220-14311-000
Crankshaft,rh
|
12220-14311-000 |
— | ||
|
13
|
13
06211-03052-000 Pin |
06211-03052-000 |
US $1.37 |
||
| replacement | |||||
|
13
|
13
04221-03059-000 PIN |
04221-03059-000 |
from US $2.35 |
||
|
14
|
14
12261-14302-000
Crankshaft,lh
|
12261-14302-000 |
— | ||
|
15
|
15
09262-25066-000
BEARING(25X62X17)
Bearing, rh; |
09262-25066-000 |
— | ||
|
16
|
16
09262-30066-000
BEARING(30X62X16)
|
09262-30066-000 |
— | ||
|
17
|
17
09289-36003-000
SEAL,OIL(36X52X8)
Oil seal, rh; |
09289-36003-000 |
— | ||
|
18
|
18
09283-20034-000 SEAL,OIL(19.6X37X8)Oil seal (20x37x8) Oil seal, lh; |
09283-20034-000 |
from US $3.74 |
||
|
19
|
19
12359-14300-000
Spacer primary
|
12359-14300-000 |
— | ||
|
20
|
20
09280-22001-000 O RING(D:2.4,ID:21.8)O-ring (d:2.4,id:21.8) |
09280-22001-000 |
from US $1.67 |
||
|
21
|
21
21111-14310-000
Gear, primary drive (nt:23)
|
21111-14310-000 |
— | ||
| replacement | |||||
|
21
|
21
21111-14321-000 GEAR,PRIMARY DRIVEGear, primary drive (nt:23) |
21111-14321-000 |
from US $43.79 |
||
|
22
|
22
09159-14012-000
NUT
|
09159-14012-000 |
— | ||
|
23
|
23
09164-14011-000 WASHER |
09164-14011-000 |
from US $3.35 |
||
