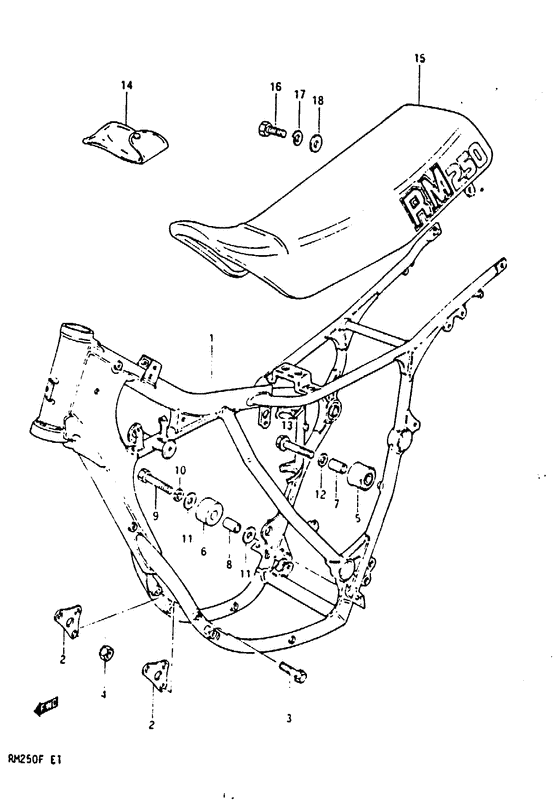

Frame - seat Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-14600-19F
Frame (blue)
Model e |
41100-14600-19F |
— | ||
| replacement | |||||
|
1
|
1
41100-14601-19F
Frame(truck shi
Model e |
41100-14601-19F |
— | ||
|
1
|
1
41100-14601-19F
Frame(truck shi
Frame (blue); Model f |
41100-14601-19F |
— | ||
|
2
|
2
41991-14600-000
Plate eng mount
|
41991-14600-000 |
— | ||
|
3
|
3
09103-08027-000
Bolt, upper
|
09103-08027-000 |
— | ||
| replacement | |||||
|
3
|
3
09103-08339-000 BOLT(8X55) |
09103-08339-000 |
from US $1.82 |
||
|
4
|
4
08319-21088-000
Nut 8mm
Nut; |
08319-21088-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-2108A-000 NUTNut, lower Nut; |
08319-2108A-000 |
from US $3.35 |
||
|
5
|
5
43910-14500-000
Roller, chain control
|
43910-14500-000 |
— | ||
| replacement | |||||
|
5
|
5
43910-01B00-000
ROLLER,CHAIN CONTROL
|
43910-01B00-000 |
— | ||
|
6
|
6
43911-14200-000
ROLLER,CHAIN LENGTH CONTROL
Roller, chain control lower; |
43911-14200-000 |
— | ||
|
7
|
7
43913-40400-000
SPACER,CHAIN LENGTH ROLLER
Spacer, chain roller; |
43913-40400-000 |
— | ||
|
8
|
8
09180-08119-000 SPACER(8.6X12X25.5) |
09180-08119-000 |
US $24.30 |
||
| replacement | |||||
|
8
|
8
09180-08156-000 SPACER(8.6X12X27.1) |
09180-08156-000 |
from US $2.56 |
||
|
9
|
9
01107-08458-000
Bolt
|
01107-08458-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-08453-000 BoltBolt, lower bracket |
01500-08453-000 |
from US $1.22 |
||
|
10
|
10
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
11
|
11
09160-08068-000
Washer
Washer, lower; |
09160-08068-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-08032-000 WASHER(8.5X26X1.2)Washer Washer, lower; |
09160-08032-000 |
from US $1.68 |
||
|
12
|
12
08211-08161-000 Washer |
08211-08161-000 |
US $1.82 |
||
| replacement | |||||
|
12
|
12
09181-08167-000 SHIM(8X16X1)Washer, gear shaft |
09181-08167-000 |
from US $3.09 |
||
|
13
|
13
09103-08043-000 BOLT(8X45)Bolt chain roller Bolt, upper; |
09103-08043-000 |
from US $1.12 |
||
|
14
|
14
09800-00280-000
Tool assy
|
09800-00280-000 |
— | ||
|
15
|
15
45100-14510-54G
Seat assy (blue)
Model e |
45100-14510-54G |
— | ||
| replacement | |||||
|
15
|
15
45100-14X00-58D
New Genuine Part
Model e |
45100-14X00-58D |
— | ||
|
15
|
15
45100-14510-58D
Seat assy (blue)
Model f |
45100-14510-58D |
— | ||
| replacement | |||||
|
15
|
15
45100-14X00-58D
New Genuine Part
Model f |
45100-14X00-58D |
— | ||
|
16
|
16
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
|
17
|
17
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
18
|
18
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
