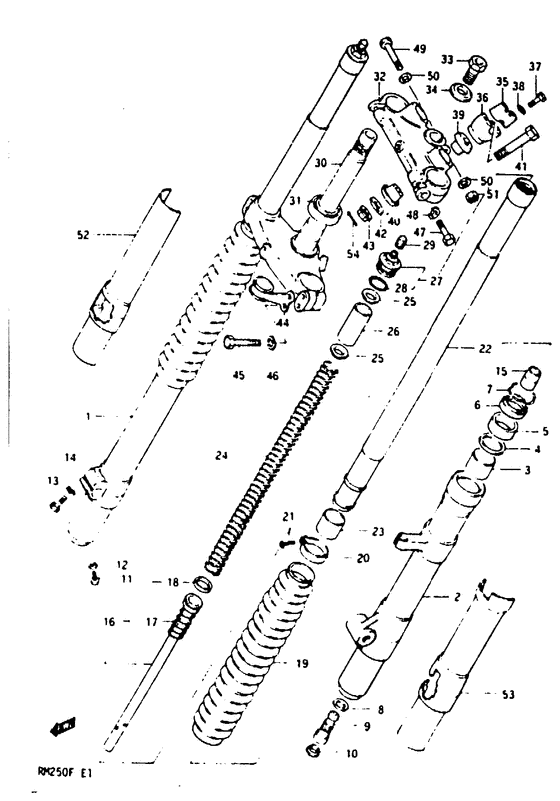

Front fork (Model e) Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21
|
21
51100-14610-19F
Fork assy fr
Front fork assy (blue); |
51100-14610-19F |
— | ||
|
1
|
1
51130-14500-000
Outer tube,rh
|
51130-14500-000 |
— | ||
|
2
|
2
51140-14500-000
Outer tube,lh
|
51140-14500-000 |
— | ||
|
3
|
3
51167-14200-000
Slide metal
|
51167-14200-000 |
— | ||
| replacement | |||||
|
3
|
3
51167-40C00-000 METAL,SLIDE |
51167-40C00-000 |
from US $6.84 |
||
|
4
|
4
51158-14200-000 WASHERWasher Washer; |
51158-14200-000 |
from US $2.58 |
||
|
5
|
5
51153-14330-000 SEAL,OILSeal, oil |
51153-14330-000 |
from US $13.44 |
||
|
6
|
6
51173-14330-000 SEAL,DUSTSeal, dust |
51173-14330-000 |
from US $7.04 |
||
|
7
|
7
51156-14200-000 RING,STOPPERRing, snap Ring, stopper; |
51156-14200-000 |
from US $8.08 |
||
|
8
|
8
51148-14330-000
Gasket
|
51148-14330-000 |
— | ||
|
9
|
9
51770-14500-000
Valve,df
Yalve; |
51770-14500-000 |
— | ||
|
10
|
10
51189-14500-000
Cap
|
51189-14500-000 |
— | ||
|
11
|
11
02112-04068-000
Screw
|
02112-04068-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
12
|
12
51183-03010-000 GASKET,DRAIN,PLUGGasket Gasket; |
51183-03010-000 |
from US $1.40 |
||
|
13
|
13
01107-08308-000
Bolt
|
01107-08308-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-08307-000 Bolt |
01500-08307-000 |
from US $0.91 |
||
|
14
|
14
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
15
|
15
51195-14330-000
Piece,oil lock
|
51195-14330-000 |
— | ||
|
16
|
16
51146-14500-000
Cylinder
|
51146-14500-000 |
— | ||
|
17
|
17
51177-14330-000 SPRING,REBOUND |
51177-14330-000 |
from US $4.86 |
||
|
18
|
18
51196-14330-000
Ring
|
51196-14330-000 |
— | ||
|
19
|
19
51571-14500-19F
Boot (blue)
|
51571-14500-19F |
— | ||
| replacement | |||||
|
19
|
19
51571-14500-38K
BOOT
|
51571-14500-38K |
— | ||
|
20
|
20
51575-14500-000
Band
|
51575-14500-000 |
— | ||
|
21
|
21
02112-04108-000
Screw
|
02112-04108-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-04107-000 SCREW |
02112-04107-000 |
from US $0.80 |
||
|
22
|
22
51110-14500-000
Inner tube
|
51110-14500-000 |
— | ||
|
23
|
23
51121-14200-000
PISTON
|
51121-14200-000 |
— | ||
|
24
|
24
51171-14600-000
Spring
|
51171-14600-000 |
— | ||
|
25
|
25
51172-14500-000
Guide,spring
|
51172-14500-000 |
— | ||
| replacement | |||||
|
25
|
25
51172-14200-000
GUIDE,SPRING
|
51172-14200-000 |
— | ||
|
26
|
26
51176-14610-000
Spacer
|
51176-14610-000 |
— | ||
|
27
|
27
51351-14500-000
Cap
|
51351-14500-000 |
— | ||
|
28
|
28
51117-14200-000
O RING
|
51117-14200-000 |
— | ||
| replacement | |||||
|
28
|
28
51117-14201-000 O Ring |
51117-14201-000 |
from US $2.24 |
||
|
29
|
29
51294-20400-000 CAPCap, valve; |
51294-20400-000 |
from US $3.46 |
||
|
30
|
30
51410-14500-000
Stem,steering
|
51410-14500-000 |
— | ||
|
31
|
31
09265-30005-000
Bearing
|
09265-30005-000 |
— | ||
| replacements | |||||
|
31
|
31
09265-30009-000
BEARING(30X55X17)
|
09265-30009-000 |
— | ||
|
31
|
31
09265-30034-000 Bearing |
09265-30034-000 |
from US $31.92 |
||
|
32
|
32
51311-14600-000
Head stem
|
51311-14600-000 |
— | ||
|
33
|
33
51351-41320-000
Bolt
|
51351-41320-000 |
— | ||
|
34
|
34
51356-41310-000 WASHER |
51356-41310-000 |
US $5.46 |
||
|
35
|
35
56211-27100-000 HOLDER,HANDLEBARHolder, handle upper; |
56211-27100-000 |
from US $20.54 |
||
|
36
|
36
56221-23450-000 HOLDER,HANDLE LWRHolder, handle lower |
56221-23450-000 |
from US $20.42 |
||
|
37
|
37
01107-08358-000
Bolt 8 x 35
|
01107-08358-000 |
— | ||
| replacement | |||||
|
37
|
37
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
38
|
38
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
38
|
38
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
39
|
39
56241-14200-000 DAMPER,UPRDamper rubber, upper Rubber, upper; |
56241-14200-000 |
from US $28.52 |
||
|
40
|
40
56242-14200-000 DAMPER,LWRDamper, lower Rubber, lower; |
56242-14200-000 |
from US $20.98 |
||
|
41
|
41
51321-14200-000
Bolt
|
51321-14200-000 |
— | ||
| replacement | |||||
|
41
|
41
56321-28C00-000 Bolt |
56321-28C00-000 |
from US $7.20 |
||
|
42
|
42
51356-40400-000
Washer
|
51356-40400-000 |
— | ||
| replacement | |||||
|
42
|
42
09160-10035-000 WASHER(10.5X28X2.3)Washer |
09160-10035-000 |
from US $1.28 |
||
|
43
|
43
08319-31108-000 NUT |
08319-31108-000 |
from US $2.61 |
||
| replacement | |||||
|
43
|
43
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
44
|
44
58621-14500-000
Clip
|
58621-14500-000 |
— | ||
| replacement | |||||
|
44
|
44
58621-14520-000
Clip
|
58621-14520-000 |
— | ||
|
45
|
45
01107-08408-000
Bolt
|
01107-08408-000 |
— | ||
| replacement | |||||
|
45
|
45
01500-0840A-000 Bolt |
01500-0840A-000 |
from US $0.96 |
||
|
46
|
46
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
46
|
46
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
47
|
47
01107-10458-000
Bolt (10*45)
|
01107-10458-000 |
— | ||
| replacement | |||||
|
47
|
47
01500-1045A-000 Bolt |
01500-1045A-000 |
from US $4.86 |
||
|
48
|
48
08321-31108-000
Lock washer
Lock washer; |
08321-31108-000 |
— | ||
| replacement | |||||
|
48
|
48
08321-01107-000 WASHER,LOCKLock washer Lock washer; |
08321-01107-000 |
from US $0.76 |
||
|
49
|
49
01107-08508-000
Bolt
|
01107-08508-000 |
— | ||
| replacement | |||||
|
49
|
49
01500-08507-000 Bolt |
01500-08507-000 |
from US $4.88 |
||
|
50
|
50
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
50
|
50
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
51
|
51
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
51
|
51
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
52
|
52
51201-14500-163
Protector, rh (yellow)
|
51201-14500-163 |
— | ||
|
53
|
53
51202-14500-163
Protector,lh
|
51202-14500-163 |
— | ||
| replacement | |||||
|
53
|
53
51202-14501-163
Fork protector
|
51202-14501-163 |
— | ||
|
54
|
54
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
54
|
54
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
