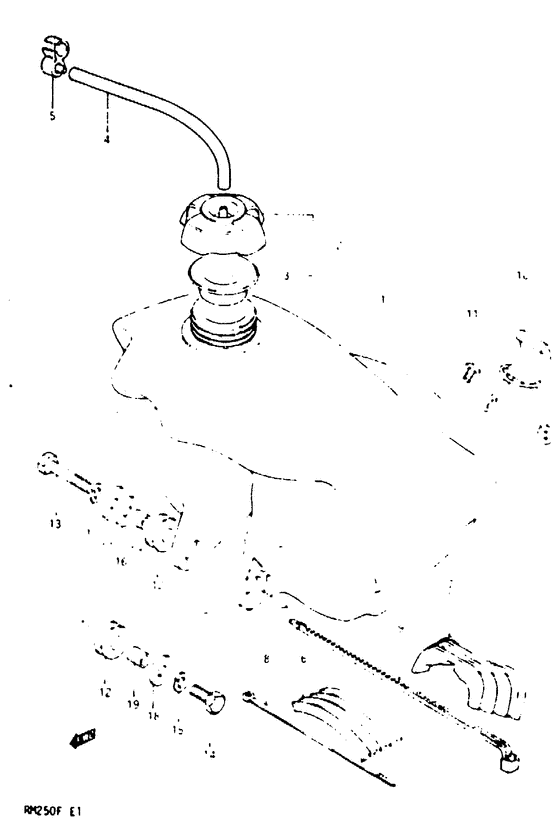

Fuel tank Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-14850-163
Tank set, fuel (yellow)
|
44101-14850-163 |
— | ||
|
2
|
2
44200-14820-000 Cap set, fuel tank |
44200-14820-000 |
from US $15.96 |
||
| replacements | |||||
|
2
|
2
44200-27870-000 CAP SET,FUEL TANKCap set, fuel tank |
44200-27870-000 |
from US $15.96 |
||
|
2
|
2
44200-27871-000 Cap Set,fuel Tank |
44200-27871-000 |
US $30.99 |
||
|
3
|
3
44248-40400-000
Gasket fuel tank cap
|
44248-40400-000 |
— | ||
| replacements | |||||
|
3
|
3
44248-05210-000
GASKET
|
44248-05210-000 |
— | ||
|
3
|
3
44248-05211-000 Gasket |
44248-05211-000 |
from US $2.38 |
||
|
4
|
4
09343-05129-000
Hose, fuel (l:240)
|
09343-05129-000 |
— | ||
| replacements | |||||
|
4
|
4
44420-44AR0-000 HOSE SET,FUEL |
44420-44AR0-000 |
US $11.95 |
||
|
4
|
4
09352-50823-600
HOSE(5X8.2X600)
|
09352-50823-600 |
— | ||
|
4
|
4
09352-50005-600 Hose(5X8.2X600) |
09352-50005-600 |
US $4.10 |
||
|
5
|
5
44486-40200-000 CLAMP,BREATHER HOSE |
44486-40200-000 |
from US $2.43 |
||
|
6
|
6
44541-14500-000 CUSHION,FUEL TANK UPR FRCushion, upper front; |
44541-14500-000 |
from US $7.75 |
||
|
7
|
7
44542-14500-000
Cushion,upper rear
|
44542-14500-000 |
— | ||
| replacement | |||||
|
7
|
7
44542-01B00-000
Cushion,upper rear
|
44542-01B00-000 |
— | ||
|
8
|
8
09407-20401-000
Clamp
|
09407-20401-000 |
— | ||
| replacement | |||||
|
8
|
8
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
9
|
9
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp; |
09407-25402-000 |
from US $2.24 |
||
|
10
|
10
44560-14500-000
BAND,FUEL TANK RR
|
44560-14500-000 |
— | ||
|
11
|
11
09125-06009-000
Screw
|
09125-06009-000 |
— | ||
| replacement | |||||
|
11
|
11
09125-06073-000 SCREW(6X16) |
09125-06073-000 |
from US $1.12 |
||
|
12
|
12
09320-12030-000 CUSHIONCushion, front |
09320-12030-000 |
from US $1.82 |
||
|
13
|
13
09100-08002-000
Bolt
|
09100-08002-000 |
— | ||
| replacement | |||||
|
13
|
13
09100-08290-000
Bolt, 8x47
|
09100-08290-000 |
— | ||
|
14
|
14
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
|
15
|
15
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
16
|
16
09160-08035-000
Wasehr (8.5x29x1.6)
|
09160-08035-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-08130-000 WASHER(8.5X24X1.6) |
09160-08130-000 |
from US $0.91 |
||
|
17
|
17
09160-08032-000 WASHER(8.5X26X1.2)Washer Washer, rh inner; |
09160-08032-000 |
from US $1.68 |
||
|
18
|
18
09160-08005-000
Washer (8.5*26*1.6)
|
09160-08005-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-08134-000 WASHER(8.5X26X1.6)Washer, muffler support front |
09160-08134-000 |
from US $0.91 |
||
|
19
|
19
09180-08003-000
Spacer
|
09180-08003-000 |
— | ||
| replacement | |||||
|
19
|
19
09180-08191-000 SPACER(8.5X12X13.5) |
09180-08191-000 |
from US $3.86 |
||
