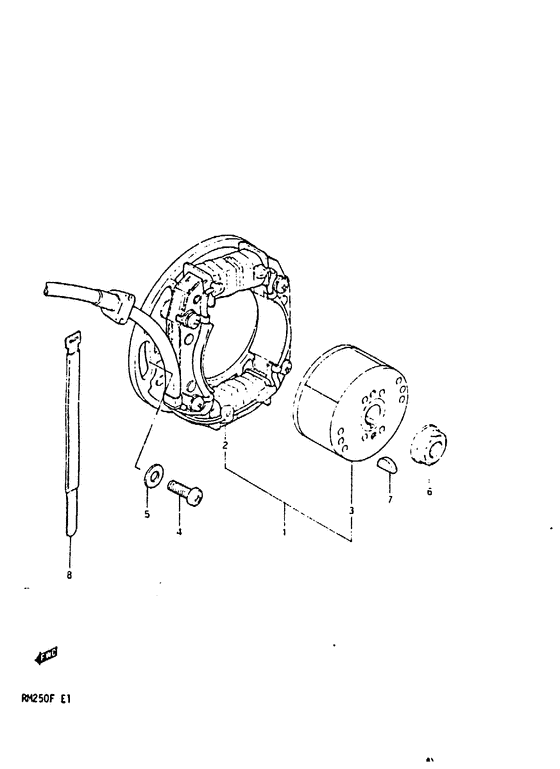

Magneto Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-14320-000
Magneto assy
|
32100-14320-000 |
— | ||
| replacement | |||||
|
1
|
1
32101-00B00-000
Stator assy
|
32101-00B00-000 |
— | ||
|
2
|
2
32101-14321-000
Stator assy
|
32101-14321-000 |
— | ||
| replacement | |||||
|
2
|
2
32101-00B00-000
Stator assy
|
32101-00B00-000 |
— | ||
|
3
|
3
32102-14320-000
Rotor assy
|
32102-14320-000 |
— | ||
|
4
|
4
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
5
|
5
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
6
|
6
08316-16108-000
Nut
|
08316-16108-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-10107-000 NUT |
08316-10107-000 |
from US $3.77 |
||
|
7
|
7
08341-31049-000
Key
|
08341-31049-000 |
— | ||
| replacement | |||||
|
7
|
7
09420-04008-000 KEY |
09420-04008-000 |
from US $1.76 |
||
|
8
|
8
09407-25301-000
CLAMP(L:250)
Clamp (l:250); |
09407-25301-000 |
— | ||
| replacement | |||||
|
8
|
8
09407-25302-000
New Genuine Part
Clamp (l:250); |
09407-25302-000 |
— | ||
|
8
|
8
09407-18301-000
CLAMP
Clamp (l:180); |
09407-18301-000 |
— | ||
| replacement | |||||
|
8
|
8
09407-18302-000 ClampClamp (l:180); |
09407-18302-000 |
from US $2.08 |
||
