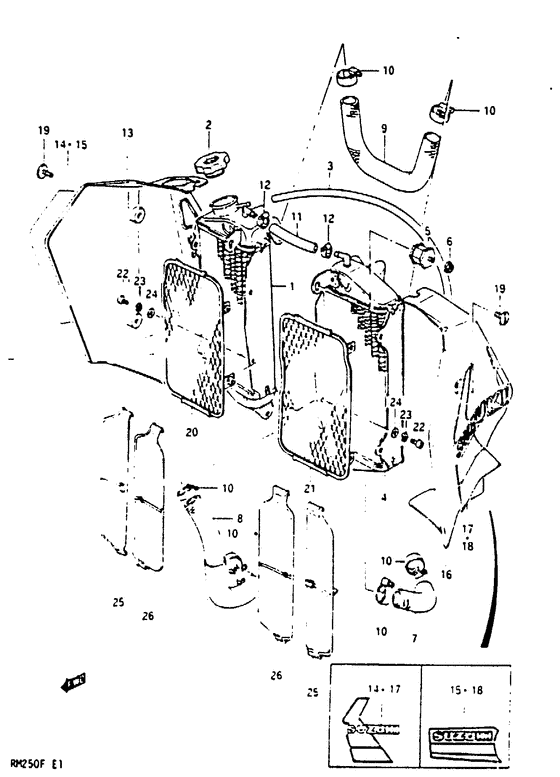

Radiator Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-14601-000
Radiator, rh
|
17710-14601-000 |
— | ||
|
2
|
2
17730-14501-000 Cap, radiator (1.1)From 17730-20921 |
17730-14501-000 |
US $22.42 |
||
| replacement | |||||
|
2
|
2
17730-19D11-000 CAP,RADIATOR(1.1)From 17730-20921 |
17730-19D11-000 |
from US $15.68 |
||
|
3
|
3
09343-05280-000
Hose (l:680-+650)
|
09343-05280-000 |
— | ||
| replacement | |||||
|
3
|
3
09352-50901-00B HOSE(5X9X2000)Hose, reservoir tank |
09352-50901-00B |
from US $12 |
||
|
4
|
4
17720-14600-000
Radiator, lh
|
17720-14600-000 |
— | ||
|
5
|
5
17788-14300-000
Cushion radiato
|
17788-14300-000 |
— | ||
|
6
|
6
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
17851-14310-000
Hose,radiator inlet
|
17851-14310-000 |
— | ||
| replacement | |||||
|
7
|
7
17858-12C00-000 HOSE,CYLINDER INLET NO.1Hose, cylinder inlet no.1 |
17858-12C00-000 |
US $16.80 |
||
|
8
|
8
17852-14600-000
Hose rdtr outle
Hose, outlet; |
17852-14600-000 |
— | ||
|
9
|
9
17853-14600-000
Hose, joint
|
17853-14600-000 |
— | ||
|
10
|
10
09402-25501-000
Clamp
|
09402-25501-000 |
— | ||
| replacement | |||||
|
10
|
10
09402-28511-000 CLAMP |
09402-28511-000 |
from US $2.89 |
||
|
11
|
11
17854-14300-000
Hose radiator joint
|
17854-14300-000 |
— | ||
| replacement | |||||
|
11
|
11
17854-13810-000
HOSE,RADIATOR BYPASS
|
17854-13810-000 |
— | ||
|
12
|
12
09402-15501-000
Clamp
|
09402-15501-000 |
— | ||
| replacement | |||||
|
12
|
12
09402-17511-000 CLAMP |
09402-17511-000 |
US $52.60 |
||
|
13
|
13
17761-14600-163
Cover,radiator,
|
17761-14600-163 |
— | ||
|
14
|
14
68660-14600-82M
Tape set rad co
Model e |
68660-14600-82M |
— | ||
|
15
|
15
68660-14610-95C
Tape set rad co
Model f |
68660-14610-95C |
— | ||
|
16
|
16
17762-14600-163
Cover radiator
|
17762-14600-163 |
— | ||
|
17
|
17
68670-14600-82M
Tape, lh
Model e |
68670-14600-82M |
— | ||
| replacement | |||||
|
17
|
17
68670-01B10-9BV
Tape set,rdtr c
Model e |
68670-01B10-9BV |
— | ||
|
18
|
18
68670-14610-95C
Tape set rad co
Model f |
68670-14610-95C |
— | ||
|
19
|
19
09125-06045-000 SCREW(6X14) |
09125-06045-000 |
from US $12.70 |
||
|
20
|
20
17810-14600-000
Bumper radiator
|
17810-14600-000 |
— | ||
|
21
|
21
17820-14600-000
Bumper radiator
|
17820-14600-000 |
— | ||
|
22
|
22
02112-06105-000
Screw
|
02112-06105-000 |
— | ||
| replacement | |||||
|
22
|
22
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
23
|
23
08321-21065-000
Lock washer
|
08321-21065-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
24
|
24
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
25
|
25
17831-14300-000
Louver no.1
Louver, mud guard rh; |
17831-14300-000 |
— | ||
|
26
|
26
17832-14300-000
Louver no.2
Louver, mud guard lh; |
17832-14300-000 |
— | ||
