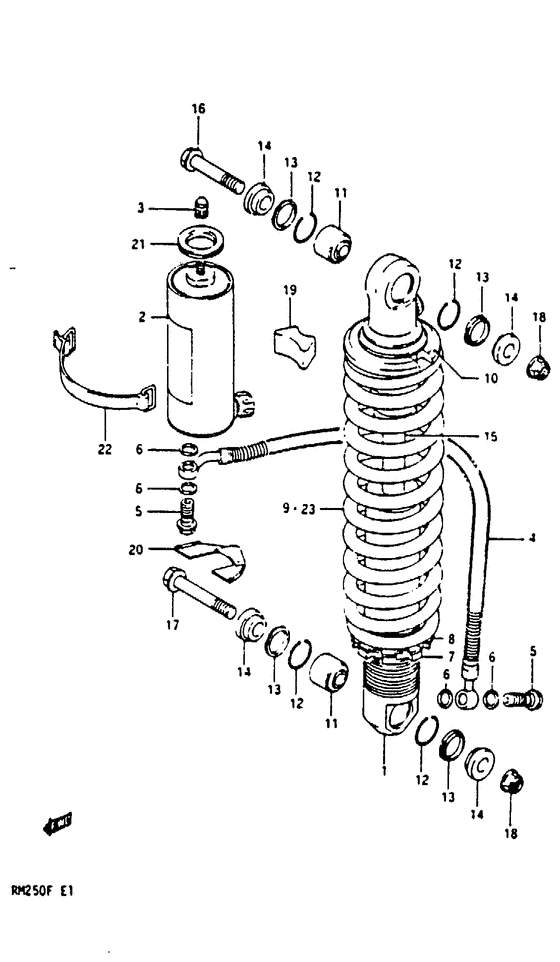

Shock absorber (Model f) Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-14640-19F
Shock absorber assy, rear (blu
Shock absorber assy, rear (blue); |
62100-14640-19F |
— | ||
|
2
|
2
62270-14620-000
Tank
|
62270-14620-000 |
— | ||
|
3
|
3
51294-20400-000 CAP |
51294-20400-000 |
from US $3.46 |
||
|
4
|
4
62280-14520-000
Hose
|
62280-14520-000 |
— | ||
|
5
|
5
62281-14140-000
Bolt
|
62281-14140-000 |
— | ||
|
6
|
6
51148-41310-000 GASKETGasket Gasket; |
51148-41310-000 |
from US $1.52 |
||
|
7
|
7
62194-14600-000
Nut
|
62194-14600-000 |
— | ||
|
8
|
8
62191-14600-000
Guide spring
|
62191-14600-000 |
— | ||
|
9
|
9
62211-14630-000
Spring
|
62211-14630-000 |
— | ||
|
10
|
10
62194-14331-000
Guide spring
|
62194-14331-000 |
— | ||
|
11
|
11
62175-43400-000
Bearing
|
62175-43400-000 |
— | ||
| replacement | |||||
|
11
|
11
62175-00B00-000 BEARING,RR CUSHION LEVERBearing, upper |
62175-00B00-000 |
from US $49.40 |
||
|
12
|
12
62277-14200-000 Ring, stop |
62277-14200-000 |
US $1.82 |
||
| replacement | |||||
|
12
|
12
62657-34A01-000 RING,STOPPER |
62657-34A01-000 |
from US $1.60 |
||
|
13
|
13
62226-14520-000
SEAL,DUST RR SHOCK ABSORBER
|
62226-14520-000 |
— | ||
|
14
|
14
62684-14520-000
COLLAR
|
62684-14520-000 |
— | ||
|
15
|
15
62120-14620-000
Rod, piston
|
62120-14620-000 |
— | ||
|
16
|
16
62311-14500-000 Bolt,upper |
62311-14500-000 |
US $3.45 |
||
| replacement | |||||
|
16
|
16
09103-10428-000 BOLT(10X58) |
09103-10428-000 |
from US $4.56 |
||
|
17
|
17
09103-10030-000 BOLT(10X52)Bolt, upper Bolt, lower; |
09103-10030-000 |
from US $8.77 |
||
|
18
|
18
08319-31108-000 NUT |
08319-31108-000 |
from US $2.61 |
||
| replacement | |||||
|
18
|
18
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
19
|
19
62331-14501-000
Cushion,tank
|
62331-14501-000 |
— | ||
| replacement | |||||
|
19
|
19
62331-14502-000
CUSHION,RESERVOIR TANK
|
62331-14502-000 |
— | ||
|
20
|
20
62423-14500-000
Cushion
|
62423-14500-000 |
— | ||
|
21
|
21
62423-14510-000
Cushion,tank,upper
|
62423-14510-000 |
— | ||
|
22
|
22
09462-00082-000
Clamp
|
09462-00082-000 |
— | ||
| replacement | |||||
|
22
|
22
09462-00082-XC0
BAND
|
09462-00082-XC0 |
— | ||
|
23
|
23
62211-14637-000
Spring rr shock
Spring (hard); Opt |
62211-14637-000 |
— | ||
|
23
|
23
62211-14647-000
Spring (soft)
Opt |
62211-14647-000 |
— | ||
| replacement | |||||
|
23
|
23
62211-14630-000
Spring
Opt |
62211-14630-000 |
— | ||
