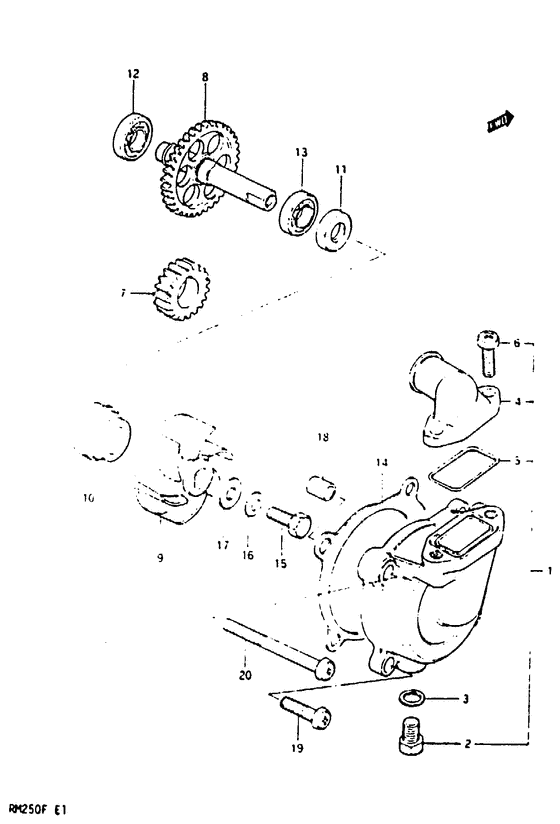

Water pump Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-14300-000
Case,water pump
Model e |
17410-14300-000 |
— | ||
| replacement | |||||
|
1
|
1
17410-1431V-000
CASE,WATER PUMP
Model e |
17410-1431V-000 |
— | ||
|
1
|
1
17410-14310-000
Case,water pump
Model f |
17410-14310-000 |
— | ||
| replacement | |||||
|
1
|
1
17410-1431V-000
CASE,WATER PUMP
Model f |
17410-1431V-000 |
— | ||
|
2
|
2
17415-14300-000 BOLT,DRAINBolt, drain; |
17415-14300-000 |
from US $2.58 |
||
|
3
|
3
17413-14100-000
Gasket drain
Model e |
17413-14100-000 |
— | ||
| replacements | |||||
|
3
|
3
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Model e |
09168-08016-000 |
from US $1.22 |
||
|
3
|
3
09168-08008-000
GASKET(8.2X14X1)
Model e |
09168-08008-000 |
— | ||
|
3
|
3
09168-08008-000
GASKET(8.2X14X1)
Gasket; Model f |
09168-08008-000 |
— | ||
|
4
|
4
17412-14300-000
Connector,water pump case
Model e |
17412-14300-000 |
— | ||
| replacement | |||||
|
4
|
4
17412-28E00-000
CONNECTOR
Model e |
17412-28E00-000 |
— | ||
|
4
|
4
17412-14310-000
Connector,water pump case
Model f |
17412-14310-000 |
— | ||
| replacement | |||||
|
4
|
4
17412-28E00-000
CONNECTOR
Model f |
17412-28E00-000 |
— | ||
|
5
|
5
17414-14300-000 O RING,WATER PUMP CONNECTOR |
17414-14300-000 |
from US $2.72 |
||
|
6
|
6
02112-06165-000 Screw, front fender |
02112-06165-000 |
US $0.65 |
||
| replacements | |||||
|
6
|
6
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
6
|
6
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
7
|
7
17451-14300-000
Gear water pump
Gear, drive (nt:19); |
17451-14300-000 |
— | ||
|
8
|
8
17461-14300-000
GEAR,WATER PUMP DRIVEN(NT:36)
Shaft (nt:36); |
17461-14300-000 |
— | ||
|
9
|
9
17491-14300-000
IMPELLER,WATER PUMP
|
17491-14300-000 |
— | ||
|
10
|
10
17470-14100-000
Seal,mechanical
Model e |
17470-14100-000 |
— | ||
| replacements | |||||
|
10
|
10
17470-02F00-000
SEAL,MECHANICAL
Model e |
17470-02F00-000 |
— | ||
|
10
|
10
17470-02F11-000 Seal,mechanicalModel e |
17470-02F11-000 |
from US $16.40 |
||
|
10
|
10
17470-19A00-000
Mechanical seal
Model f |
17470-19A00-000 |
— | ||
| replacements | |||||
|
10
|
10
17470-02F00-000
SEAL,MECHANICAL
Model f |
17470-02F00-000 |
— | ||
|
10
|
10
17470-02F11-000 Seal,mechanicalModel f |
17470-02F11-000 |
from US $16.40 |
||
|
11
|
11
09283-10004-000 SEAL,OIL(10X21X5)Oil seal (10x21x5) |
09283-10004-000 |
from US $2.28 |
||
|
12
|
12
09262-10004-000 BEARING(10X22X6)Bearing (10x22x6) Bearing, inner; |
09262-10004-000 |
from US $19.14 |
||
|
13
|
13
09262-12003-000 Bearing |
09262-12003-000 |
US $27.98 |
||
| replacement | |||||
|
13
|
13
08113-69010-000 BearingBearing |
08113-69010-000 |
from US $10.34 |
||
|
14
|
14
17431-14302-000
Gasket,water pump case
|
17431-14302-000 |
— | ||
| replacement | |||||
|
14
|
14
17431-14303-000 GASKET,WATER PUMP CASE |
17431-14303-000 |
US $7.98 |
||
|
15
|
15
09100-06099-000 BOLT(6X13)Bolt (6x13) |
09100-06099-000 |
from US $1.28 |
||
|
16
|
16
09164-06006-000 WASHERWasher (6.3x12x1) Lock washer; |
09164-06006-000 |
from US $1.06 |
||
|
17
|
17
09168-06016-000
Washer, seal
|
09168-06016-000 |
— | ||
| replacement | |||||
|
17
|
17
09168-06025-000 GASKET(6X15X2.2)Gasket |
09168-06025-000 |
from US $1.22 |
||
|
18
|
18
04211-09129-000 PINPin Pin; |
04211-09129-000 |
from US $0.96 |
||
|
19
|
19
02112-06205-000
Screw
|
02112-06205-000 |
— | ||
| replacements | |||||
|
19
|
19
02112-0620B-000 SCREW |
02112-0620B-000 |
US $0.80 |
||
|
19
|
19
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.80 |
||
|
20
|
20
02112-06605-000
Screw
|
02112-06605-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-0660B-000 SCREW |
02112-0660B-000 |
from US $4.13 |
||
