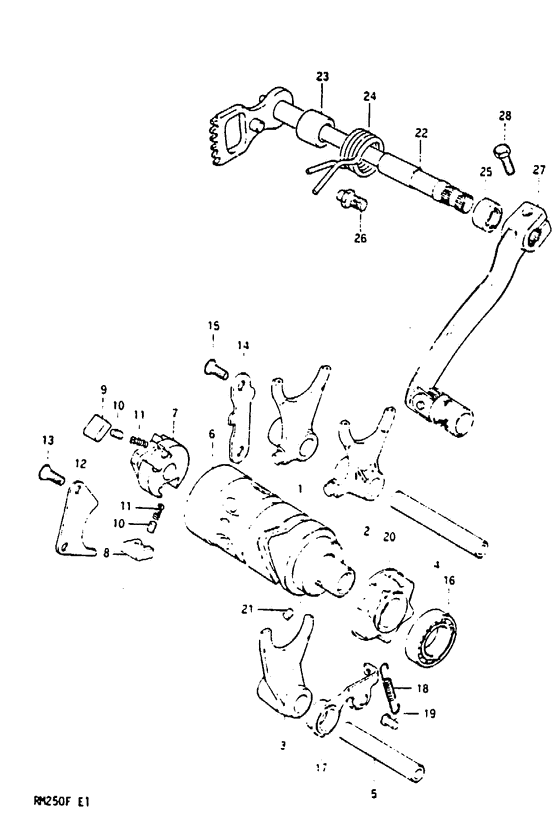

Gear shifting Diagram Suzuki RM250
- Year
- 1985
- Model code
- RM250F(E/F) F
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-14310-000
Fork, no.1
|
25211-14310-000 |
— | ||
| replacement | |||||
|
1
|
1
25211-14311-000
FORK,GEAR SHIFT NO.1
|
25211-14311-000 |
— | ||
|
2
|
2
25221-14310-000
Fork, no.2
|
25221-14310-000 |
— | ||
| replacement | |||||
|
2
|
2
25221-14311-000
Fork,gear shift
|
25221-14311-000 |
— | ||
|
3
|
3
25231-14311-000
Fork, no.3
|
25231-14311-000 |
— | ||
| replacement | |||||
|
3
|
3
25231-14X00-000
FORK,GEAR SHIFT NO.3
|
25231-14X00-000 |
— | ||
|
4
|
4
25411-14330-000
Shaft, no.2
|
25411-14330-000 |
— | ||
| replacement | |||||
|
4
|
4
25411-14331-000 SHAFT,GEAR SHIFT FORKShaft, no.2 |
25411-14331-000 |
from US $10.82 |
||
|
5
|
5
25421-14330-000
SHAFT,GEAR SHIFT FORK NO.2
Shaft, no.2 (l:70); |
25421-14330-000 |
— | ||
|
6
|
6
25310-14311-000
Cam,gear shifting
|
25310-14311-000 |
— | ||
| replacement | |||||
|
6
|
6
25310-14312-000
CAM,GEAR SHIFT
|
25310-14312-000 |
— | ||
|
7
|
7
25322-31301-000
Gear, cam driven
|
25322-31301-000 |
— | ||
| replacement | |||||
|
7
|
7
25322-31310-000 GEAR,GEAR SHIFT CAM DRIVEN |
25322-31310-000 |
from US $15.96 |
||
|
8
|
8
25323-34200-000
Pawl, (1)
|
25323-34200-000 |
— | ||
| replacement | |||||
|
8
|
8
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 |
25323-34201-000 |
from US $6.23 |
||
|
9
|
9
25324-34200-000
Pawl, (2)
|
25324-34200-000 |
— | ||
| replacement | |||||
|
9
|
9
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 |
25324-34201-000 |
from US $6.23 |
||
|
10
|
10
09261-05003-000 PIN(5X8)Pin |
09261-05003-000 |
from US $1.22 |
||
|
11
|
11
09440-04003-000 SPRINGSpring; |
09440-04003-000 |
from US $1.06 |
||
|
12
|
12
25331-16500-000
Lifter,pawl
|
25331-16500-000 |
— | ||
|
13
|
13
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
13
|
13
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
14
|
14
25341-14310-000
Guide,gear shif
|
25341-14310-000 |
— | ||
|
15
|
15
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
15
|
15
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
16
|
16
08113-69030-000 BEARINGBearing (l) Bearing; |
08113-69030-000 |
from US $16.56 |
||
|
17
|
17
25350-14311-000
STOPPER,GEAR SHIFTING CAM
Stopper, cam; |
25350-14311-000 |
— | ||
|
18
|
18
09443-06049-000
Spring cam stop
|
09443-06049-000 |
— | ||
|
19
|
19
09220-04001-000 Spring hook |
09220-04001-000 |
US $1.31 |
||
| replacement | |||||
|
19
|
19
09223-04001-000 RIVETPin |
09223-04001-000 |
from US $2.30 |
||
|
20
|
20
25381-14310-000
Plate,cam stopp
Plate, stopper; |
25381-14310-000 |
— | ||
|
21
|
21
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
22
|
22
25510-14300-000
Shaft, gear shift
|
25510-14300-000 |
— | ||
| replacement | |||||
|
22
|
22
25510-143V0-000
Shaft gear shift
|
25510-143V0-000 |
— | ||
|
23
|
23
09180-12083-000 SPACER(12X20X15.3)Spacer (12x20x15.3) Spacer; |
09180-12083-000 |
from US $1.68 |
||
|
24
|
24
09444-26013-000 SPRINGSpring Spring; |
09444-26013-000 |
from US $1.68 |
||
|
25
|
25
09285-12002-000
Shift shaft oil
|
09285-12002-000 |
— | ||
| replacement | |||||
|
25
|
25
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) |
09285-12006-000 |
from US $2.58 |
||
|
26
|
26
25671-01000-000
Change arm stop
Stopper, arm; |
25671-01000-000 |
— | ||
| replacement | |||||
|
26
|
26
25671-01011-000 STOPPER,GEAR SHIFT ARMStopper, arm; |
25671-01011-000 |
from US $1.92 |
||
|
27
|
27
25600-14311-000
Lever,gear shift
|
25600-14311-000 |
— | ||
| replacement | |||||
|
27
|
27
25600-14321-000
LEVER ASSY,GEAR SHIFT
|
25600-14321-000 |
— | ||
|
28
|
28
01517-06258-000
Bolt
|
01517-06258-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.96 |
||
