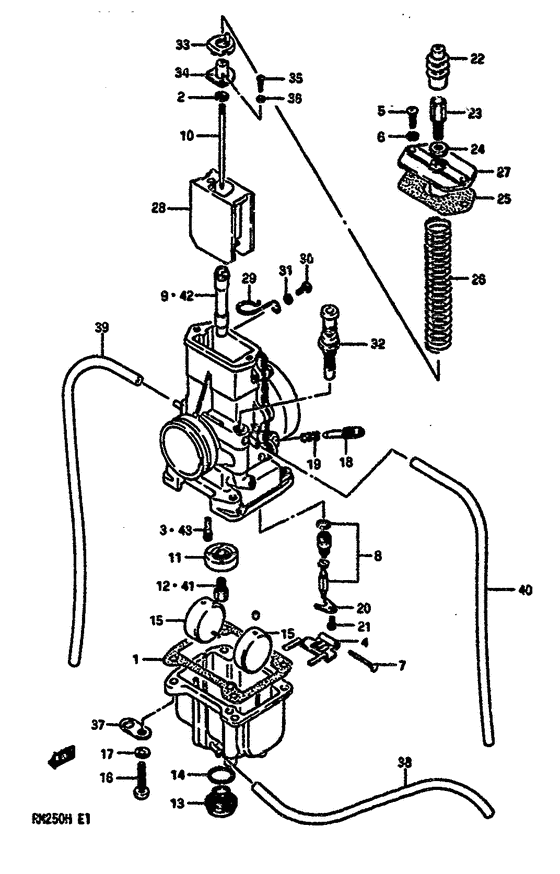

Carburetor (Model g) Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22
|
22
13200-00B00-000
Carburetor assy
|
13200-00B00-000 |
— | ||
|
1
|
1
13251-14300-000
GASKET,FLOAT CAHMBER
|
13251-14300-000 |
— | ||
|
2
|
2
13394-10010-000 CLIPClip, needle E ring; |
13394-10010-000 |
from US $1.98 |
||
|
3
|
3
09492-50010-000
Jet pilot 5
Jet,pilot (50); |
09492-50010-000 |
— | ||
|
4
|
4
13253-40010-000
ARM,FLOAT
|
13253-40010-000 |
— | ||
|
5
|
5
02112-04126-000
Screw
|
02112-04126-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0412A-000 SCREW |
02112-0412A-000 |
from US $0.80 |
||
|
6
|
6
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
7
|
7
13254-92311-000 PIN,FLOATPin Pin; |
13254-92311-000 |
from US $1.52 |
||
|
8
|
8
13370-14300-000
Valve assy,needle
|
13370-14300-000 |
— | ||
| replacements | |||||
|
8
|
8
13370-43B00-000
VALVE ASSY,NEEDLE
|
13370-43B00-000 |
— | ||
|
8
|
8
13370-43B01-000
Valve Assy,needle
|
13370-43B01-000 |
— | ||
|
9
|
9
09494-00357-000
JET,NEEDLE(R-0)
Jet,needle (r-0); |
09494-00357-000 |
— | ||
|
10
|
10
13383-00B00-000
Needle,jet (60j33-3)
|
13383-00B00-000 |
— | ||
|
11
|
11
13331-14300-000
Ring
|
13331-14300-000 |
— | ||
|
12
|
12
09491-60007-000 JET,MAIN(300)Jet, main (300) Jet,main (300); |
09491-60007-000 |
from US $8.13 |
||
|
13
|
13
13247-32210-000 SCREW,GUIDEBolt, drain Cap,drain; |
13247-32210-000 |
from US $9.86 |
||
|
14
|
14
13249-41310-000 O RING,DRAIN PLUGO ring O ring; |
13249-41310-000 |
from US $2.58 |
||
|
15
|
15
13252-18620-000 FLOAT |
13252-18620-000 |
from US $16.63 |
||
|
16
|
16
02112-05206-000
Screw
|
02112-05206-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
17
|
17
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
17
|
17
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
18
|
18
13269-46010-000 Screw, pilot aiScrew,air (1 1/2) Screw,air (1 1/2); |
13269-46010-000 |
US $13.34 |
||
| replacement | |||||
|
18
|
18
13269-95110-000 SCREW,PILOT AIRScrew,air (1 1/2); |
13269-95110-000 |
from US $6.51 |
||
|
19
|
19
13268-01010-000 SPRINGSpring Spring; |
13268-01010-000 |
from US $1.98 |
||
|
20
|
20
13373-39110-000 PLATEPlate,needle valve; |
13373-39110-000 |
from US $3.97 |
||
|
21
|
21
02112-04066-000
Screw
|
02112-04066-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
22
|
22
13681-41510-000 CAP,CABLE ADJUSTERCap, rubber Cap,adjuster; |
13681-41510-000 |
from US $13.41 |
||
|
23
|
23
13577-41612-000 ADJUSTER,CABLEAdjuster,cable; |
13577-41612-000 |
from US $5.52 |
||
|
24
|
24
13661-16600-000 NUTNut, adjuster Nut; |
13661-16600-000 |
from US $2.94 |
||
|
25
|
25
13266-14300-000
Gasket top
Gasket,top; |
13266-14300-000 |
— | ||
|
26
|
26
13573-14300-000
Spring throt va
Spring,throttle valve; |
13573-14300-000 |
— | ||
|
27
|
27
13261-14300-000
Top carburetor
Top; |
13261-14300-000 |
— | ||
|
28
|
28
13551-00B00-000
Valve, throttle
Valve,piston (ca:3.0); |
13551-00B00-000 |
— | ||
|
29
|
29
13692-14500-000
Clip
|
13692-14500-000 |
— | ||
|
30
|
30
02112-04167-000
Screw 4x16
|
02112-04167-000 |
— | ||
| replacement | |||||
|
30
|
30
02112-0416A-000 SCREW |
02112-0416A-000 |
from US $0.68 |
||
|
31
|
31
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
31
|
31
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
32
|
32
13400-14500-000
Plunger assy
Plunger assy; |
13400-14500-000 |
— | ||
|
33
|
33
13387-14230-000
Seat,return spr
|
13387-14230-000 |
— | ||
|
34
|
34
13398-14310-000
Connector
|
13398-14310-000 |
— | ||
|
35
|
35
02112-03106-000
Screw
|
02112-03106-000 |
— | ||
| replacements | |||||
|
35
|
35
02112-0310A-000 SCREW |
02112-0310A-000 |
US $9.90 |
||
|
35
|
35
02112-0310B-000 SCREW |
02112-0310B-000 |
from US $3.71 |
||
|
36
|
36
08321-21036-000
Lock washer
|
08321-21036-000 |
— | ||
| replacement | |||||
|
36
|
36
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
37
|
37
13693-13A00-000
Plate
|
13693-13A00-000 |
— | ||
|
38
|
38
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
38
|
38
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
38
|
38
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $2.91 |
||
|
39
|
39
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
39
|
39
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
39
|
39
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $2.91 |
||
|
40
|
40
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
40
|
40
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
40
|
40
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $2.91 |
||
|
41
|
41
09491-56001-000
Jet main 280
Opt |
09491-56001-000 |
— | ||
| replacement | |||||
|
41
|
41
09491-56003-000
JET,MAIN(280)
Opt |
09491-56003-000 |
— | ||
|
41
|
41
09491-58002-000 JET,MAIN(290)Jet, main (290) Jet,main (290); Opt |
09491-58002-000 |
from US $6.88 |
||
|
41
|
41
09491-62005-000 JET,MAIN(310)Jet, main (310) Jet,main (310); Opt |
09491-62005-000 |
from US $7.43 |
||
|
41
|
41
09491-66002-000 JET,MAIN(330)Jet,main (330) Jet,main (330); Opt |
09491-66002-000 |
from US $7.43 |
||
|
41
|
41
09491-68002-000 JET,MAIN(340)Jet,main (340) Jet,main (340); Opt |
09491-68002-000 |
from US $7.43 |
||
|
42
|
42
09494-00453-000
Jet needle
Jet,needle (r-2); Opt |
09494-00453-000 |
— | ||
|
42
|
42
09494-00356-000
Jet needle
Jet,needle (q-6); Opt |
09494-00356-000 |
— | ||
|
42
|
42
09494-00393-000
Jet,needle
Jet,needle (q-8); Opt |
09494-00393-000 |
— | ||
|
43
|
43
09492-40004-000 JET,PILOT(40)Jet, pilot (40) Jet,pilot (40); Opt |
09492-40004-000 |
from US $5.41 |
||
|
43
|
43
09492-60004-000
Jet pilot
Jet,pilot (60); Opt |
09492-60004-000 |
— | ||
