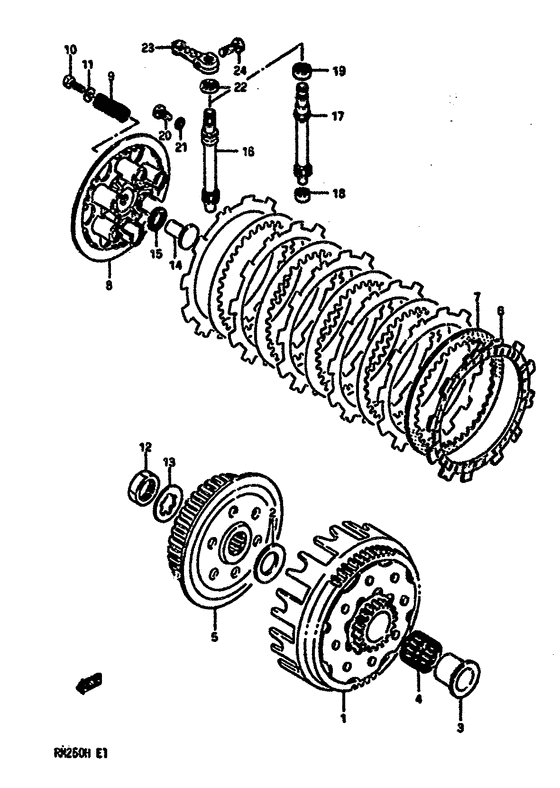

Clutch Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-00B02-000
GEAR ASSY,PRI DRIVEN
Gear assy,primary dirven; Nt:59/18 |
21200-00B02-000 |
— | ||
|
2
|
2
09160-20063-000 WASHER(20X36X2) |
09160-20063-000 |
from US $9.74 |
||
|
3
|
3
21251-00B00-000
Spacer
|
21251-00B00-000 |
— | ||
| replacement | |||||
|
3
|
3
21251-43D00-000 SPACER,PRIMARY DRIVEN GEARSpacer |
21251-43D00-000 |
from US $45.76 |
||
|
4
|
4
09263-25046-000 BEARING(25X30X22)Bearing (25x30x22) Bearing (25x30x22); |
09263-25046-000 |
from US $32.80 |
||
|
5
|
5
21410-00B02-000
HUB,CLUTCH SLEEVE
Hub,sleeve; |
21410-00B02-000 |
— | ||
|
6
|
6
21441-07A00-000
Plate, drive (t:2.8)
|
21441-07A00-000 |
— | ||
| replacement | |||||
|
6
|
6
21441-12D01-000 Plate,clutch DrivePlate, drive (t:2.8) |
21441-12D01-000 |
from US $24 |
||
|
7
|
7
21451-31000-000 PLATE,CLUTCH DRIVEN(T:2.0)Plate, driven (t:2.0) Plate,driven (iron); |
21451-31000-000 |
from US $9.16 |
||
|
7
|
7
21451-40001-000 Plate, driven (alminum)Opt |
21451-40001-000 |
US $10.10 |
||
| replacement | |||||
|
7
|
7
21451-31000-000 PLATE,CLUTCH DRIVEN(T:2.0)Plate, driven (t:2.0) Opt |
21451-31000-000 |
from US $9.16 |
||
|
8
|
8
21462-00B01-000
Disc,pressure
Model g |
21462-00B01-000 |
— | ||
| replacement | |||||
|
8
|
8
21462-00B02-000 DISC,CLUTCH PRESSUREDisc, pressure Model g |
21462-00B02-000 |
from US $66.18 |
||
|
8
|
8
21462-00B02-000 DISC,CLUTCH PRESSUREDisc, pressure Disc,pressure; Model h |
21462-00B02-000 |
from US $66.18 |
||
|
9
|
9
09440-15014-000 SPRINGModel g |
09440-15014-000 |
from US $1.76 |
||
|
9
|
9
09440-15028-000
SPRING
Model h |
09440-15028-000 |
— | ||
|
10
|
10
09100-05002-000 BOLT(5X16)Bolt (5x12) Bolt (5x16); |
09100-05002-000 |
from US $1.07 |
||
|
11
|
11
09160-05017-000
Washer
|
09160-05017-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 |
09160-05043-000 |
from US $0.91 |
||
|
12
|
12
09140-20002-000
Nut
|
09140-20002-000 |
— | ||
| replacement | |||||
|
12
|
12
09140-20001-000 NUT |
09140-20001-000 |
from US $1.82 |
||
|
13
|
13
09167-20006-000 WASHER,LOCKLock washer |
09167-20006-000 |
from US $1.22 |
||
| replacement | |||||
|
13
|
13
09167-20009-000 WASHER,LOCKLock washer |
09167-20009-000 |
from US $1.82 |
||
|
14
|
14
23165-00B00-000
Rack
|
23165-00B00-000 |
— | ||
| replacement | |||||
|
14
|
14
23165-44B01-000 RACK,CLUTCH RELEASE |
23165-44B01-000 |
from US $12.59 |
||
|
15
|
15
09263-10002-000 BEARING(10X22X2.8)Bearing, release thrust Thrust bearing; |
09263-10002-000 |
from US $6.23 |
||
|
16
|
16
23261-00B00-000
Pinion,clutch r
Model g |
23261-00B00-000 |
— | ||
|
17
|
17
23261-00B20-000
PINION,CLUTCH RELEASE(NT:12)
Model h |
23261-00B20-000 |
— | ||
|
18
|
18
09263-09001-000 BEARING(9X13X10)Bearing,no.1; Model h |
09263-09001-000 |
from US $7.30 |
||
|
19
|
19
09263-12024-000 BEARING(12X16X10)Bearing, cl rlse upr Bearing,no.2; Model h |
09263-12024-000 |
from US $6.23 |
||
|
20
|
20
09135-06002-000
Tach gr bush bo
Model g |
09135-06002-000 |
— | ||
| replacement | |||||
|
20
|
20
09135-06501-000 BOLT(6X10)Bolt (6x10) Model g |
09135-06501-000 |
from US $1.28 |
||
|
21
|
21
09168-06004-000 GASKET(6.2X11X1.2)Washer (6x11.8x1.5) Washer (6.2x11x1.2); Model g |
09168-06004-000 |
from US $1.06 |
||
|
22
|
22
09285-10004-000 SEAL,OIL(10X17X5)Oil seal (10x17x5); |
09285-10004-000 |
from US $1.98 |
||
|
23
|
23
23271-20900-000
Arm, release
|
23271-20900-000 |
— | ||
| replacement | |||||
|
23
|
23
23271-20902-000 ARM,CLUTCH RELEASEArm, cl rlse |
23271-20902-000 |
from US $23.56 |
||
|
24
|
24
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
