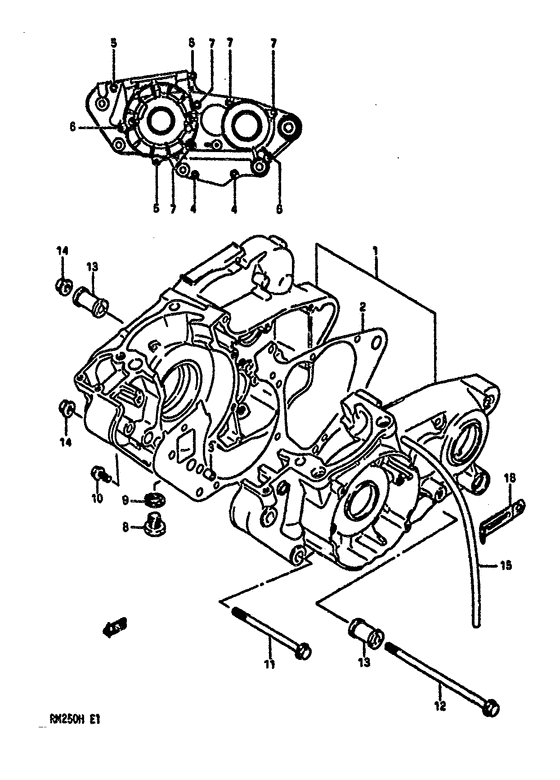

Crankcase (Model h) Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-00830-000
Crankcase set
|
11300-00830-000 |
— | ||
| replacement | |||||
|
1
|
1
11300-00832-000
New Genuine Part
|
11300-00832-000 |
— | ||
|
2
|
2
11481-00B20-000
Gasket
|
11481-00B20-000 |
— | ||
| replacement | |||||
|
2
|
2
11481-00B20-H17
Gasket,crankcase
|
11481-00B20-H17 |
— | ||
|
3
|
3
04211-09129-000 PINPin Pin; |
04211-09129-000 |
from US $0.96 |
||
|
4
|
4
02112-06357-000 SCREWScrew (6x35); |
02112-06357-000 |
from US $0.80 |
||
|
5
|
5
02112-06457-000 SCREWScrew (6x45); |
02112-06457-000 |
from US $0.80 |
||
|
6
|
6
02112-06558-000
Screw 6x55
Screw (6x55); |
02112-06558-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-06557-000 SCREWScrew (6x55); |
02112-06557-000 |
from US $0.77 |
||
|
7
|
7
02112-06608-000
Screw
|
02112-06608-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-06607-000 SCREW |
02112-06607-000 |
from US $0.80 |
||
|
8
|
8
09247-14001-000
Plug, oil drain
Plug,drain; |
09247-14001-000 |
— | ||
| replacement | |||||
|
8
|
8
09247-14002-000 PLUG(MAGNETO)Plug, drain Plug,drain; |
09247-14002-000 |
from US $2.43 |
||
|
9
|
9
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket; |
09168-14004-000 |
from US $1.22 |
||
|
10
|
10
09128-06043-000
Screw
Screw,ex chamber drain; |
09128-06043-000 |
— | ||
| replacement | |||||
|
10
|
10
09128-06058-000 SCREW(6X10)Screw,ex chamber drain; |
09128-06058-000 |
from US $1.28 |
||
|
11
|
11
09103-08114-000 BOLT(8X100)Bolt (8x100) Bolt (8x100); |
09103-08114-000 |
from US $9.84 |
||
|
12
|
12
09103-08032-000
Bolt
Bolt (8x165); |
09103-08032-000 |
— | ||
|
13
|
13
11610-04700-000
SPACER,ENGINE MOUNT(L:32)
Spacer (l:32); |
11610-04700-000 |
— | ||
|
14
|
14
09159-08067-000 NUTNut, sprocket guard |
09159-08067-000 |
from US $3.24 |
||
|
15
|
15
09343-04104-000 Hose (4x7x600)L:600-250 |
09343-04104-000 |
US $5.97 |
||
| replacements | |||||
|
15
|
15
09352-40703-600
HOSE(4X7X600)
L:600-250 |
09352-40703-600 |
— | ||
|
15
|
15
09352-40706-600 Hose(4X7X600)L:600-250 |
09352-40706-600 |
from US $2.91 |
||
|
16
|
16
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
16
|
16
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
