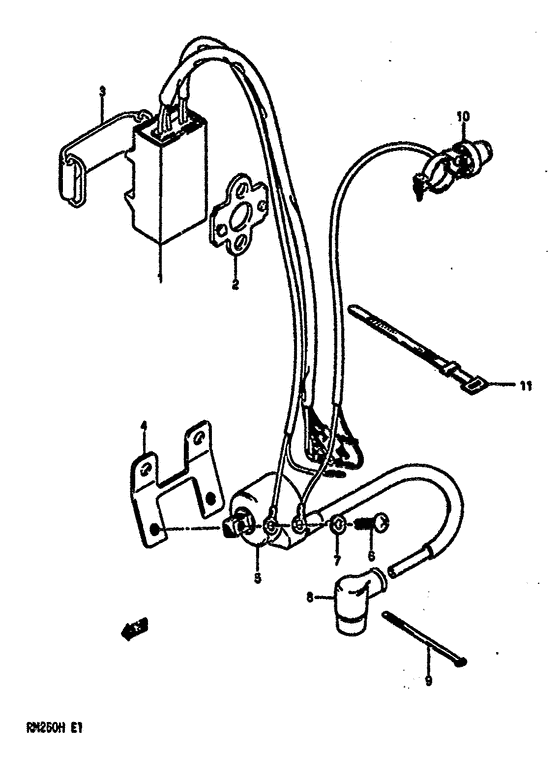

Electrical (Model h) Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-00B30-000 UNIT,CDIC.d.i.unit |
32900-00B30-000 |
US $927.52 |
||
|
2
|
2
32941-14300-000
PROTECTOR,CDI UNIT
|
32941-14300-000 |
— | ||
|
3
|
3
32942-14110-000 Band |
32942-14110-000 |
US $8.61 |
||
| replacement | |||||
|
3
|
3
32942-14111-000 BAND(L:65) |
32942-14111-000 |
from US $11.63 |
||
|
4
|
4
33416-01B01-000
Bracket,ignition coil
|
33416-01B01-000 |
— | ||
|
5
|
5
33410-01B20-000
Coil assy,ignition
|
33410-01B20-000 |
— | ||
| replacement | |||||
|
5
|
5
33410-12C00-000 COIL ASSY,IGNITION NO.1Coil assy, ignition |
33410-12C00-000 |
from US $116 |
||
|
6
|
6
02112-06206-000
Screw
|
02112-06206-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-0620B-000 SCREW |
02112-0620B-000 |
US $0.80 |
||
|
6
|
6
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.80 |
||
|
7
|
7
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
8
|
8
33510-41111-000 Cap, spark plug |
33510-41111-000 |
US $29.82 |
||
| replacement | |||||
|
8
|
8
33510-20A02-000 Cap,spark plug |
33510-20A02-000 |
from US $19.20 |
||
|
9
|
9
09407-09402-000 CLAMP |
09407-09402-000 |
from US $3.35 |
||
|
10
|
10
37820-00B00-000
Switch assy, engine stop
|
37820-00B00-000 |
— | ||
| replacement | |||||
|
10
|
10
37820-14X50-000 SWITCH ASSY,ENGINE STOPSwitch assy, engine stop |
37820-14X50-000 |
from US $20 |
||
|
11
|
11
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp; |
09407-12402-000 |
from US $1.98 |
||
