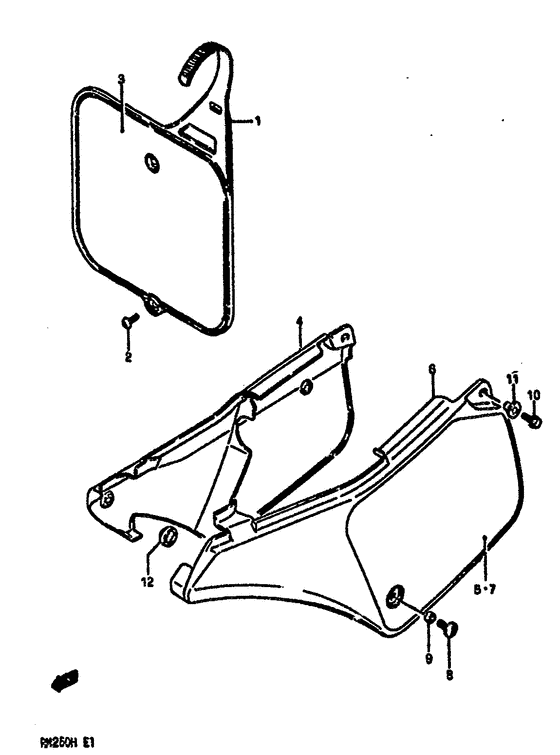

Frame cover Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94911-00B00-163
Plate,front number (yellow)
Model g |
94911-00B00-163 |
— | ||
| replacement | |||||
|
1
|
1
94911-00B10-25Y PLATE,FRONT NUMBER(YELLOW)Plate, front number (yellow) Model g |
94911-00B10-25Y |
from US $60 |
||
|
1
|
1
94911-00B00-25Y
Plate, front number (yellow)
Model h |
94911-00B00-25Y |
— | ||
| replacement | |||||
|
1
|
1
94911-00B10-25Y PLATE,FRONT NUMBER(YELLOW)Plate, front number (yellow) Model h |
94911-00B10-25Y |
from US $60 |
||
|
2
|
2
02142-05164-000
Screw
|
02142-05164-000 |
— | ||
| replacements | |||||
|
2
|
2
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
2
|
2
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
3
|
3
68255-14500-722
Tape set,front number (green)
|
68255-14500-722 |
— | ||
|
4
|
4
47111-01B00-163
Cover,frame rh (yellow)
Model g |
47111-01B00-163 |
— | ||
| replacement | |||||
|
4
|
4
47111-01B01-25Y
COVER,FRAME,R(YELLOW)
Model g |
47111-01B01-25Y |
— | ||
|
4
|
4
47111-01B00-25Y
Cover,frame rh (yellow)
Model h |
47111-01B00-25Y |
— | ||
| replacement | |||||
|
4
|
4
47111-01B01-25Y
COVER,FRAME,R(YELLOW)
Model h |
47111-01B01-25Y |
— | ||
|
5
|
5
68132-01B00-722
Emblem,rh (green)
|
68132-01B00-722 |
— | ||
| replacement | |||||
|
5
|
5
68132-01B00-291
Emblem,rh (black)
|
68132-01B00-291 |
— | ||
|
6
|
6
47211-01B00-163
Cover,frame lh (yellow)
Model g |
47211-01B00-163 |
— | ||
| replacement | |||||
|
6
|
6
47211-01B00-25Y
COVER,FRAME,L(YELLOW)
Model g |
47211-01B00-25Y |
— | ||
|
6
|
6
47211-01B00-25Y
COVER,FRAME,L(YELLOW)
Cover,frame lh (yellow); Model h |
47211-01B00-25Y |
— | ||
|
7
|
7
68142-01B00-722
Emblem,frame co
Emblem,lh (green); |
68142-01B00-722 |
— | ||
|
8
|
8
09125-06045-000 SCREW(6X14)Screw,front; |
09125-06045-000 |
from US $12.70 |
||
|
9
|
9
09180-06098-000
Spacer (6.1x8x3.5)
|
09180-06098-000 |
— | ||
| replacement | |||||
|
9
|
9
09180-06245-000 SPACER(6.1X8X3.5)Spacer (6.1x8x3.5) |
09180-06245-000 |
from US $1.34 |
||
|
10
|
10
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
11
|
11
09169-06050-000 Washer,rear rh inner |
09169-06050-000 |
US $3.43 |
||
| replacement | |||||
|
11
|
11
09169-06065-000 WASHERSpacer |
09169-06065-000 |
from US $1.76 |
||
|
12
|
12
09321-10013-000
Cushion, muffler
|
09321-10013-000 |
— | ||
| replacement | |||||
|
12
|
12
09321-10018-000 CUSHION |
09321-10018-000 |
from US $2.13 |
||
