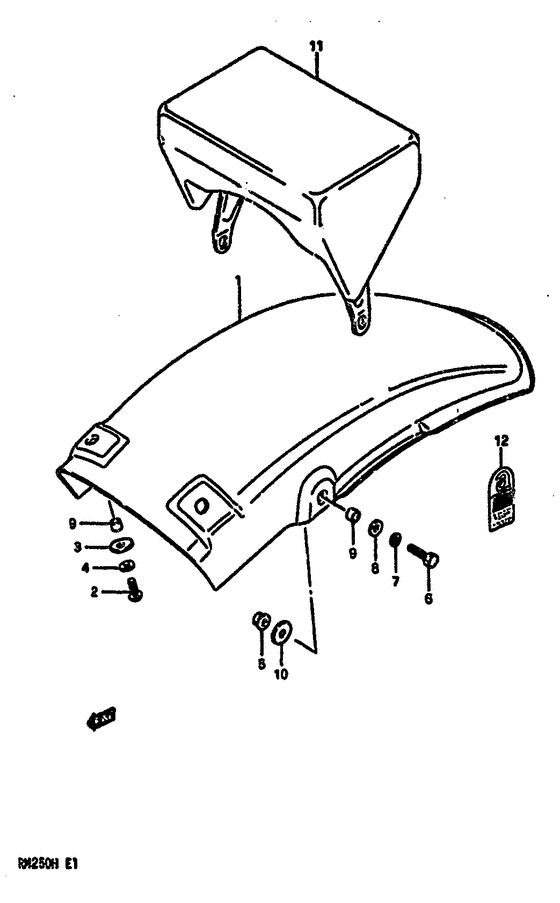

Rear fender Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63113-14501-163
Body,rear fender rear (yellow)
Model g |
63113-14501-163 |
— | ||
| replacement | |||||
|
1
|
1
63113-26C00-25Y
BODY,RR FENDER RR
Model g |
63113-26C00-25Y |
— | ||
|
1
|
1
63113-14501-25Y
Body,rear fender rear (yellow)
Model h |
63113-14501-25Y |
— | ||
| replacement | |||||
|
1
|
1
63113-26C00-25Y
BODY,RR FENDER RR
Model h |
63113-26C00-25Y |
— | ||
|
2
|
2
02142-06167-000 SCREWScrew Screw,front; |
02142-06167-000 |
from US $0.76 |
||
|
3
|
3
09160-06038-000
Washer
|
09160-06038-000 |
— | ||
| replacement | |||||
|
3
|
3
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
4
|
4
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
5
|
5
09159-06017-000
Adjust nut
Nut; |
09159-06017-000 |
— | ||
| replacement | |||||
|
5
|
5
08319-31067-000 NUTNut, center Nut; |
08319-31067-000 |
from US $1.44 |
||
|
6
|
6
01107-06207-000 Bolt |
01107-06207-000 |
US $18.70 |
||
| replacement | |||||
|
6
|
6
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
7
|
7
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
8
|
8
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
9
|
9
09180-06073-000
Spacer (6.4x9x5)
|
09180-06073-000 |
— | ||
| replacement | |||||
|
9
|
9
09180-06306-000 SPACER(6.5X9X5) |
09180-06306-000 |
from US $3.21 |
||
|
10
|
10
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
11
|
11
94900-38220-4UZ
Bag,seat tail
Bag assy,seat tail (blue); Model h opt |
94900-38220-4UZ |
— | ||
|
12
|
12
11967-82000-000
LABEL,ASBESTOS WARNING
Label,warning; E2 |
11967-82000-000 |
— | ||
