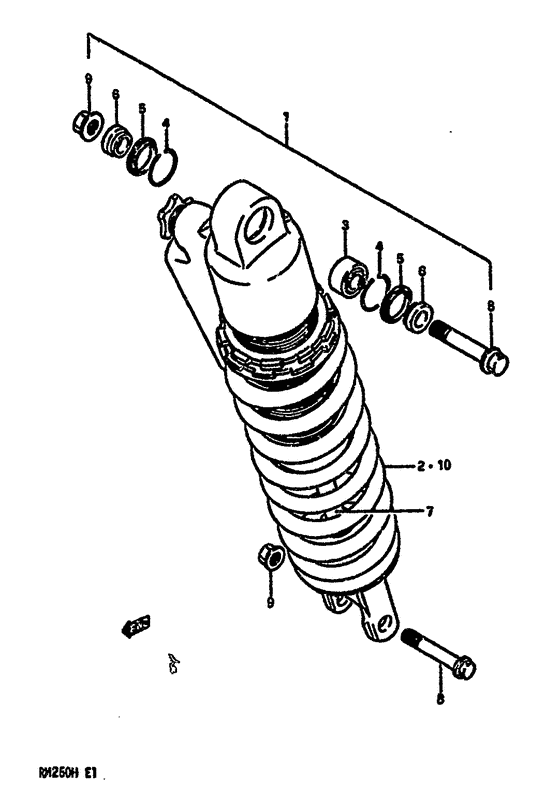

Shock absorber (Model h) Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-00B30-163
Absorber,rr sho
Yellow |
62100-00B30-163 |
— | ||
|
2
|
2
62211-00B30-000
Spring
|
62211-00B30-000 |
— | ||
|
3
|
3
62175-00B00-000 BEARING,RR CUSHION LEVERBearing, upper |
62175-00B00-000 |
from US $49.40 |
||
|
4
|
4
62277-14200-000 Ring, stop |
62277-14200-000 |
US $1.82 |
||
| replacement | |||||
|
4
|
4
62657-34A01-000 RING,STOPPER |
62657-34A01-000 |
from US $1.60 |
||
|
5
|
5
62226-01B20-000 DUST SEAL |
62226-01B20-000 |
US $9.47 |
||
|
6
|
6
62684-01B20-000
SPACER
|
62684-01B20-000 |
— | ||
|
7
|
7
62120-00B20-000
Rod,piston
|
62120-00B20-000 |
— | ||
|
8
|
8
62311-14501-000
Bolt,rear shk a
|
62311-14501-000 |
— | ||
| replacement | |||||
|
8
|
8
09103-10428-000 BOLT(10X58) |
09103-10428-000 |
from US $4.56 |
||
|
9
|
9
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
10
|
10
62211-00B70-000
Spring (hard)
Opt green |
62211-00B70-000 |
— | ||
| replacement | |||||
|
10
|
10
62211-26C70-000
Spring (hard) (yellow)
Opt green |
62211-26C70-000 |
— | ||
|
10
|
10
62211-00B50-000
Spring
Spring (soft); Opt black |
62211-00B50-000 |
— | ||
