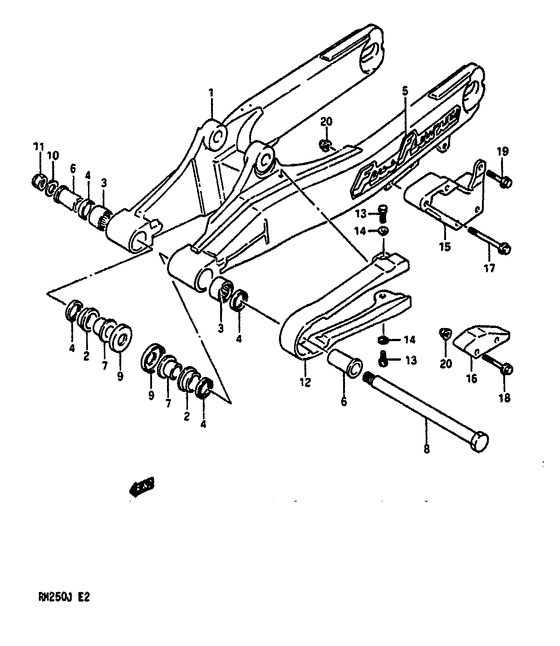

Rear swinging arm Diagram Suzuki RM250
- Year
- 1988
- Model code
- RM250J J
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-26C00-000
Swinging arm assy,rear
|
61000-26C00-000 |
— | ||
|
2
|
2
61261-40402-000
Bush
|
61261-40402-000 |
— | ||
| replacement | |||||
|
2
|
2
61261-27C00-000
BUSHING,SWGARM PIVOT
|
61261-27C00-000 |
— | ||
|
3
|
3
09263-20039-000
BEARING(20X27X30)
|
09263-20039-000 |
— | ||
|
4
|
4
09285-20005-000
Oil seal
|
09285-20005-000 |
— | ||
| replacement | |||||
|
4
|
4
09283-20031-000 SEAL,OIL(20X27X5)Oil seal |
09283-20031-000 |
from US $3.19 |
||
|
5
|
5
68381-19A10-97J
Emblem
|
68381-19A10-97J |
— | ||
| replacement | |||||
|
5
|
5
68381-27C00-97J
Emblem
|
68381-27C00-97J |
— | ||
|
6
|
6
61251-14600-000
SPACER,RR SWINGING ARM PIVOT
|
61251-14600-000 |
— | ||
|
7
|
7
61252-14100-000 SPACER,RR SWGARM PIVOT INNERSpacer, inner Spacer,inner; |
61252-14100-000 |
US $16.75 |
||
|
8
|
8
61211-00B00-000
SHAFT,RR SWINGINGARM PIVOT
|
61211-00B00-000 |
— | ||
|
9
|
9
61262-40400-000
COVER,RR SWGARM DUST SEAL
|
61262-40400-000 |
— | ||
| replacement | |||||
|
9
|
9
61262-40401-000 Seal,dust |
61262-40401-000 |
from US $4.86 |
||
|
10
|
10
09160-14009-000 WASHER(14.5X29X2.3)Washer Washer; |
09160-14009-000 |
from US $4.32 |
||
|
11
|
11
09159-14019-000 NUTNut |
09159-14019-000 |
from US $15.66 |
||
|
12
|
12
61273-26C00-000
BUFFER,CHAIN TOUCH DEFENSE
Buffer,chain refense; |
61273-26C00-000 |
— | ||
|
13
|
13
01107-06127-000 Bolt |
01107-06127-000 |
US $2.71 |
||
| replacement | |||||
|
13
|
13
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
14
|
14
09169-06057-000 WASHER |
09169-06057-000 |
from US $1.76 |
||
|
15
|
15
61341-01B02-000
Guide,chain
|
61341-01B02-000 |
— | ||
| replacement | |||||
|
15
|
15
61341-01B03-000
GUIDE,CHAIN
|
61341-01B03-000 |
— | ||
|
16
|
16
61348-01B30-000
Defense, chain guide
|
61348-01B30-000 |
— | ||
| replacement | |||||
|
16
|
16
61348-27C20-000 DEFENSE,CHAIN GUIDEDifense, chain guide |
61348-27C20-000 |
from US $36.92 |
||
|
17
|
17
01517-06558-000
Bolt (6*55)
|
01517-06558-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-06557-000 Bolt |
01550-06557-000 |
from US $0.81 |
||
|
18
|
18
01517-06458-000
Bolt, brace
|
01517-06458-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-06457-000 Bolt |
01550-06457-000 |
from US $0.91 |
||
|
19
|
19
01517-06207-000
Bolt
|
01517-06207-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-06207-000 BOLT |
01550-06207-000 |
from US $0.80 |
||
|
20
|
20
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
