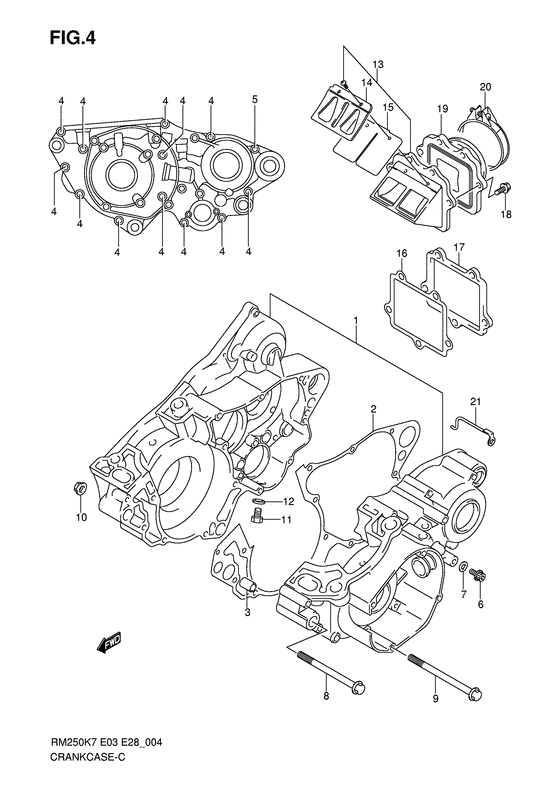

Crankcase Diagram Suzuki RM250
- Year
- 2007
- Model code
- RM250K7(E3/E28) K7
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-37860-000
Crankcase set
|
11301-37860-000 |
— | ||
| replacement | |||||
|
1
|
1
11301-37861-000 CRANKCASE SET |
11301-37861-000 |
from US $964.48 |
||
|
2
|
2
11481-37F20-000 GASKET,CRANKCASE |
11481-37F20-000 |
from US $22.04 |
||
|
3
|
3
09206-13017-000 PIN(13X10.4X20)Pin Pin; |
09206-13017-000 |
from US $2.59 |
||
|
4
|
4
09103-06244-000 BOLT(6X50)Bolt (l:50); |
09103-06244-000 |
from US $4.20 |
||
|
5
|
5
09103-06245-000 BOLT(6X65)Bolt, crankcase (6x65) Bolt (l:65); |
09103-06245-000 |
from US $4.98 |
||
|
6
|
6
07120-0610B-000 BOLTBolt, drain Bolt, oil check; |
07120-0610B-000 |
from US $0.91 |
||
|
7
|
7
09168-06004-000 GASKET(6.2X11X1.2)Washer (6x11.8x1.5) |
09168-06004-000 |
from US $1.06 |
||
|
8
|
8
09103-10087-000 BOLT(10X105)Bolt (10x105); |
09103-10087-000 |
from US $4.62 |
||
|
9
|
9
09103-10399-000 BOLT(10X125)Bolt (10x125); |
09103-10399-000 |
from US $9.35 |
||
|
10
|
10
09159-10078-000 NUT |
09159-10078-000 |
from US $4.74 |
||
|
11
|
11
09247-12012-000 PLUGPlug, drain; |
09247-12012-000 |
from US $10.34 |
||
|
12
|
12
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket, oil drain plug; |
09168-12002-000 |
from US $0.76 |
||
|
13
|
13
13150-37F30-000 VALVE ASSY,REED |
13150-37F30-000 |
from US $218.96 |
||
|
14
|
14
13152-37F00-000 STOPPER,REED VALVE |
13152-37F00-000 |
from US $5.70 |
||
|
15
|
15
13153-37F30-000 VALVE,REED |
13153-37F30-000 |
from US $76.91 |
||
|
16
|
16
13155-37F00-000 GASKET,REED VALVE |
13155-37F00-000 |
from US $10.56 |
||
|
17
|
17
13156-37F00-000 SPACER,REED VALVE |
13156-37F00-000 |
from US $17 |
||
|
18
|
18
09103-06250-000 BOLT(6X25)Bolt, tensioner adjuster |
09103-06250-000 |
from US $3.25 |
||
|
19
|
19
13110-37F40-000
PIPE,INTAKE
|
13110-37F40-000 |
— | ||
| replacement | |||||
|
19
|
19
13110-37F41-000 Pipe,intake |
13110-37F41-000 |
from US $46 |
||
|
20
|
20
09402-56901-000 CLAMP |
09402-56901-000 |
from US $2.28 |
||
|
21
|
21
13694-37F30-000 GUIDE,CARBURETOR HOSE |
13694-37F30-000 |
from US $4.71 |
||
