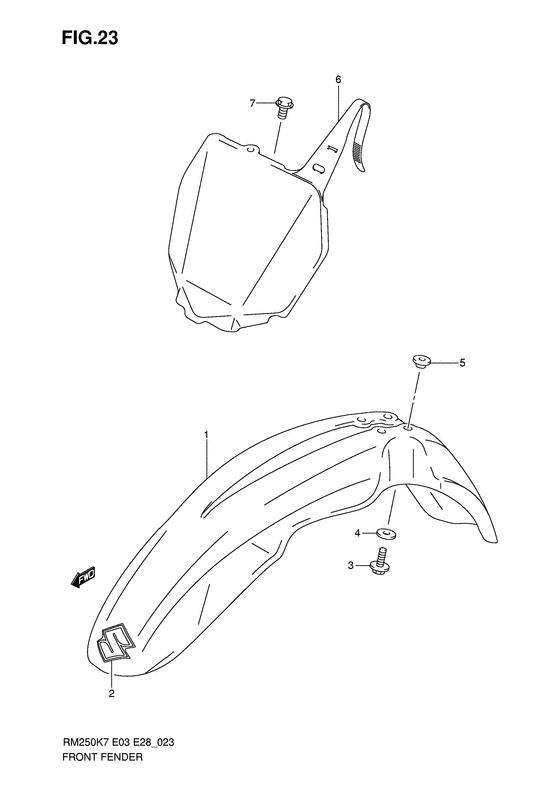

Front fender Diagram Suzuki RM250
- Year
- 2007
- Model code
- RM250K7(E3/E28) K7
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-37F01-YU1 FENDER,FRFender, front (yellow); |
53111-37F01-YU1 |
from US $55.42 |
||
|
2
|
2
68151-37F10-CFM EMBLEM,SEmblem, "s"; |
68151-37F10-CFM |
from US $17 |
||
|
3
|
3
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
4
|
4
09160-06136-000 WASHER(6.5X28X1.6)Washer, lower; |
09160-06136-000 |
from US $0.96 |
||
|
5
|
5
09169-06078-000 WASHERWasher, upper |
09169-06078-000 |
from US $5.68 |
||
|
6
|
6
94911-37F02-30H PLATE,NUMBER FRPlate, front number (white); |
94911-37F02-30H |
from US $47.10 |
||
|
7
|
7
09103-06233-000 BOLT(6X12)Bolt, rear |
09103-06233-000 |
from US $0.91 |
