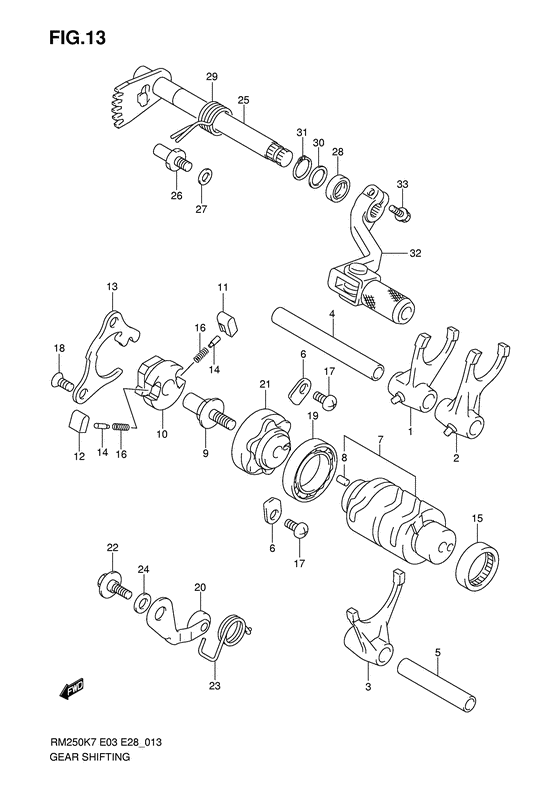

Gear shifting Diagram Suzuki RM250
- Year
- 2007
- Model code
- RM250K7(E3/E28) K7
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-28C01-000 FORK,GEAR SHIFT NO.1Fork, gear shift no.1 Fork, gear shift, no.1; |
25211-28C01-000 |
from US $52.80 |
||
|
2
|
2
25221-37E10-000 FORK,GEAR SHIFT NO.2Fork, gear shift, no.2; |
25221-37E10-000 |
from US $98.84 |
||
|
3
|
3
25231-28C02-000 FORK,GEAR SHIFT NO.3Fork, gear shift no.3 Fork, gear shift, no.3; |
25231-28C02-000 |
from US $50.16 |
||
|
4
|
4
25411-37F20-000 SHAFT,GEAR SHIFT FORK(L:95)Shaft, gear shift fork (l:95) Shaft, gear fork, no.1; |
25411-37F20-000 |
from US $10.82 |
||
|
5
|
5
25421-27C01-000 SHAFT,GEAR SHIFT FORK(L:60)Shaft, gear fork no.2 Shaft, gear fork, no.2; |
25421-27C01-000 |
from US $11.84 |
||
|
6
|
6
24741-21A00-000 RETAINERRetainer, shift cam brg; |
24741-21A00-000 |
from US $1.60 |
||
|
7
|
7
25310-37F00-000 CAM,GEAR SHIFT |
25310-37F00-000 |
from US $127.70 |
||
|
8
|
8
04221-04089-000 PINPin, bal sprocket driven Pin, shift cam; |
04221-04089-000 |
from US $0.76 |
||
|
9
|
9
25313-37F00-000 PIN,GEAR SHIFT CAMPin, shift; |
25313-37F00-000 |
from US $6.92 |
||
|
10
|
10
25322-37F01-000 GEAR,GEAR SHIFT CAM DRIVENGear, gear shift cam Shifter, gear shift cam; |
25322-37F01-000 |
from US $25.21 |
||
|
11
|
11
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 Pawl, gear shift, no.1; |
25323-34201-000 |
from US $6.23 |
||
|
12
|
12
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 Pawl, gear shift, no.2; |
25324-34201-000 |
from US $6.23 |
||
|
13
|
13
25331-37F01-000 LIFTER,GEAR SHIFT PAWL |
25331-37F01-000 |
from US $14.57 |
||
|
14
|
14
09209-05023-000 PINPin, shift pawl Pin, shift pawl; |
09209-05023-000 |
from US $1.08 |
||
|
15
|
15
09263-25018-000 BEARING(25X32X12)Bearing, shift cam lh Bearing, shift cam, lh; 25x32x12 |
09263-25018-000 |
from US $12.64 |
||
|
16
|
16
09440-04003-000 SPRINGSpring, shift pawl return; |
09440-04003-000 |
from US $1.06 |
||
|
17
|
17
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw, shift cam brg (6x12); |
09125-06110-000 |
from US $1.52 |
||
|
18
|
18
09126-06011-000 SCREW(6X12)Screw, retainer mdl Screw, shift pawl (6x12); |
09126-06011-000 |
from US $0.76 |
||
|
19
|
19
08140-69050-000 BEARINGBearing, gear shift cam, r Bearing, shift cam, rh; |
08140-69050-000 |
from US $14 |
||
|
20
|
20
25350-37F30-000 STOPPER,SHIFT CAM |
25350-37F30-000 |
from US $9.94 |
||
|
21
|
21
25381-37F30-000 PLATE,SHIFT CAM STOPPERPlate, gear shift cam stopper Plate, shift cam stopper; |
25381-37F30-000 |
from US $29.26 |
||
|
22
|
22
09111-06041-000 BOLT(6X14.3)Bolt, sub t/m shift cam Bolt, shift cam stopper; 6x14.3 |
09111-06041-000 |
from US $4 |
||
|
23
|
23
25355-37F00-000 SPRING,SHIFT CAM STOPPERSpring, shift cam; |
25355-37F00-000 |
from US $4.05 |
||
|
24
|
24
08211-06121-000 WASHERWasher, shift cam stopper Washer, shift cam; |
08211-06121-000 |
from US $2.45 |
||
|
25
|
25
25510-37F10-000 SHAFT,GEAR SHIFT |
25510-37F10-000 |
from US $57.04 |
||
|
26
|
26
25671-37F10-000 STOPPER,GEAR SHIFT ARM |
25671-37F10-000 |
from US $3.42 |
||
|
27
|
27
09181-08139-000 SHIM(8.8X14X1)Washer, gear shaft Washer, gear shift arm; 8x14x1.0 |
09181-08139-000 |
from US $1.52 |
||
|
28
|
28
09283-14006-000 SEAL,OIL(14X22X6)Seal, shift shaft oil; 14x22x6 |
09283-14006-000 |
from US $3.74 |
||
|
29
|
29
09444-20004-000 SPRINGSpring, shift shaft return; |
09444-20004-000 |
from US $10.37 |
||
|
30
|
30
09181-14139-000 SHIM(14X20X1)Washer, gear shaft Washer, gear shaft; 14x20x1.0 |
09181-14139-000 |
from US $1.82 |
||
|
31
|
31
08331-31146-000
Circlip
Circlip, gear shaft; |
08331-31146-000 |
— | ||
| replacement | |||||
|
31
|
31
08331-3114A-000 CIRCLIPCirclip, sub t/m gr shift Circlip, gear shaft; |
08331-3114A-000 |
from US $0.91 |
||
|
32
|
32
25600-37F20-000 LEVER ASSY,GEAR SHIFT |
25600-37F20-000 |
from US $137.38 |
||
|
33
|
33
01547-06207-000 BoltBolt, lower Bolt, gear shift; |
01547-06207-000 |
from US $0.80 |
||
