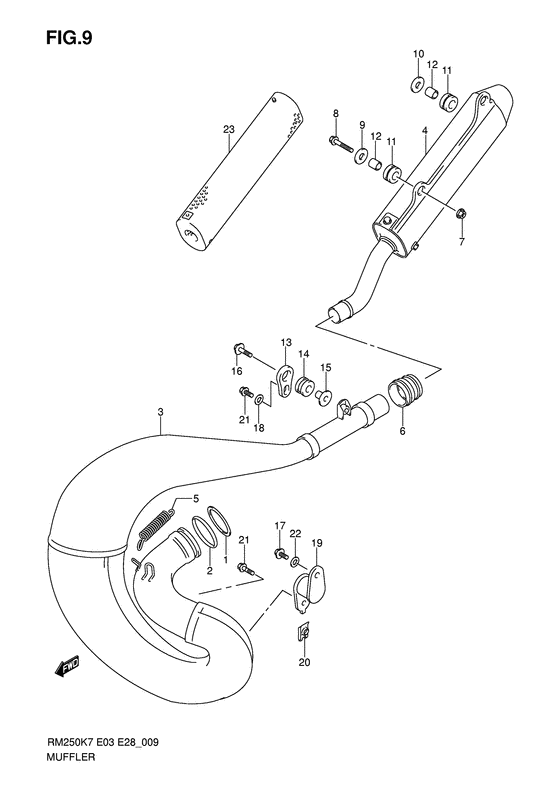

Muffler Diagram Suzuki RM250
- Year
- 2007
- Model code
- RM250K7(E3/E28) K7
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14172-28C30-000 WASHER,EXHAUST PIPEWasher, exhaust pipe Washer, exhaust pipe; |
14172-28C30-000 |
from US $1.76 |
||
|
2
|
2
14171-28C30-000 O RING,EXHAUST PIPEO ring, exhaust pipe |
14171-28C30-000 |
from US $10.56 |
||
|
3
|
3
14310-37F21-000 BODY,MUFFLER |
14310-37F21-000 |
from US $539.31 |
||
|
4
|
4
14330-37F40-000 BODY,MUFFLER 2ND |
14330-37F40-000 |
US $354.04 |
||
|
5
|
5
09443-10045-000 SPRING |
09443-10045-000 |
from US $3.50 |
||
|
6
|
6
14771-28C02-000 CONNECTOR,MUFFLERConnector, muffler |
14771-28C02-000 |
from US $53.26 |
||
|
7
|
7
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
8
|
8
09103-06251-000 BOLT(6X30) |
09103-06251-000 |
from US $3.21 |
||
|
9
|
9
09160-06114-000 WASHER(6.5X24X1.2)Washer (6.5x24x1.2) Washer (6.5x24x1.2); |
09160-06114-000 |
from US $0.98 |
||
|
10
|
10
09160-06114-000 WASHER(6.5X24X1.2)Washer (6.5x24x1.2) Washer (6.5x24x1.2); |
09160-06114-000 |
from US $0.98 |
||
|
11
|
11
09320-11015-000
CUSHION
|
09320-11015-000 |
— | ||
| replacements | |||||
|
11
|
11
09320-11008-000 CUSHION |
09320-11008-000 |
from US $1.52 |
||
|
11
|
11
09320-11024-000 Cushion |
09320-11024-000 |
US $25.80 |
||
|
12
|
12
09180-06120-000 SPACER(6.5X11.5X12)Spacer (6.5x11.5x12); |
09180-06120-000 |
from US $1.07 |
||
|
13
|
13
14761-27C00-000 PLATE,MUFFLER MTGPlate, mounting |
14761-27C00-000 |
from US $11.82 |
||
|
14
|
14
14762-01B01-000
CUSHION,MUFFLER
|
14762-01B01-000 |
— | ||
| replacement | |||||
|
14
|
14
14762-01B02-000 Cushion,muffler |
14762-01B02-000 |
from US $3.04 |
||
|
15
|
15
14763-36E00-000 SPACER,MUF MTG |
14763-36E00-000 |
from US $6.51 |
||
|
16
|
16
09116-06186-000 BOLT(6X25)Bolt (l:25); |
09116-06186-000 |
from US $3.96 |
||
|
17
|
17
09103-06233-000 BOLT(6X12)Bolt, rear Bolt (l:12); |
09103-06233-000 |
from US $0.91 |
||
|
18
|
18
09160-06084-000 WASHER(6.5X18X1.6)Washer (6.5x18x1.6); |
09160-06084-000 |
from US $0.76 |
||
|
19
|
19
14770-37F00-000
DAMPER,MUFFLER
|
14770-37F00-000 |
— | ||
| replacement | |||||
|
19
|
19
14770-37F01-000 Damper,muffler |
14770-37F01-000 |
US $29.48 |
||
|
20
|
20
09148-06021-000 NUTNut, air cleaner Retainer, damper; |
09148-06021-000 |
from US $1.31 |
||
|
21
|
21
09103-06234-000 BOLT(6X16)Bolt, chain guide Bolt (l:18); |
09103-06234-000 |
from US $0.81 |
||
|
22
|
22
09160-06084-000 WASHER(6.5X18X1.6)Washer (6.5x18x1.6); |
09160-06084-000 |
from US $0.76 |
||
|
23
|
23
14351-37E30-000
SILENCER,MUFFLER
Opt e3 |
14351-37E30-000 |
— | ||
|
23
|
23
14351-37F50-000 SILENCER,MUFFLEROpt e28 |
14351-37F50-000 |
US $104.88 |
||
