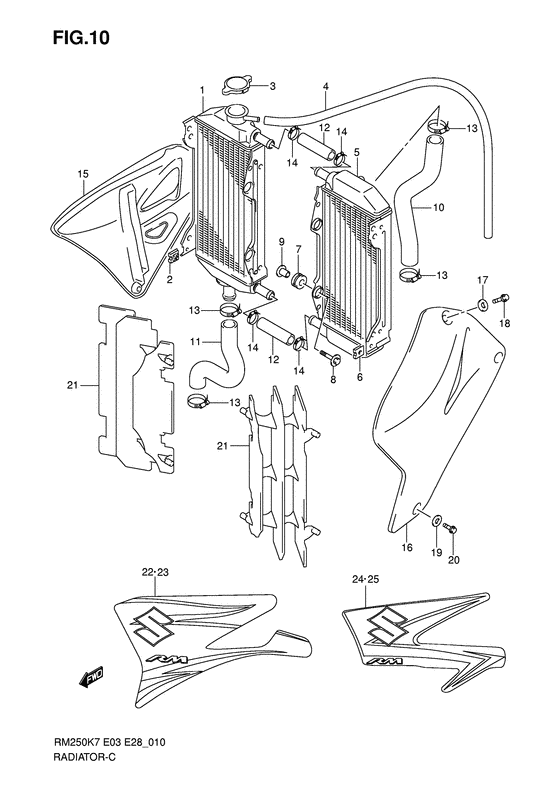

Radiator Diagram Suzuki RM250
- Year
- 2007
- Model code
- RM250K7(E3/E28) K7
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-37F00-000 RADIATOR,WATER,R |
17710-37F00-000 |
from US $562.80 |
||
|
2
|
2
09148-06015-000 NUT |
09148-06015-000 |
from US $2.03 |
||
|
3
|
3
17730-12C20-000
Cap
Cap, radiator (1.1); |
17730-12C20-000 |
— | ||
| replacement | |||||
|
3
|
3
17730-08J00-000 CAP,RADIATORCap, radiator (1.1); |
17730-08J00-000 |
from US $14.90 |
||
|
4
|
4
09351-50803-00A HOSE(5X8X1000)Hose, over flow; L:1000->50 |
09351-50803-00A |
US $10.29 |
||
| replacement | |||||
|
4
|
4
09351-50803-00B HOSE(5X8X2000)Hose, overflow Hose, over flow; L:1000->50 |
09351-50803-00B |
from US $8.66 |
||
|
5
|
5
17720-37F00-000 RADIATOR,WATER,L |
17720-37F00-000 |
from US $693.44 |
||
|
6
|
6
09148-06015-000 NUT |
09148-06015-000 |
from US $2.03 |
||
|
7
|
7
17787-19A00-000 CUSHION,RADIATOR LWRCushion, lower Cushion, support; |
17787-19A00-000 |
from US $2.24 |
||
|
8
|
8
09116-06186-000 BOLT(6X25) |
09116-06186-000 |
from US $3.96 |
||
|
9
|
9
09180-06243-000 SPACER(6.5X10.5X14.1) |
09180-06243-000 |
from US $8.74 |
||
|
10
|
10
17851-37F00-000 HOSE,RADIATOR INLET |
17851-37F00-000 |
from US $13.62 |
||
|
11
|
11
17852-37F00-000 HOSE,RADIATOR OUTLET |
17852-37F00-000 |
from US $12.95 |
||
|
12
|
12
17853-36F00-000 HOSE,RADIATOR JOINTHose, joint no.1 |
17853-36F00-000 |
from US $3.75 |
||
|
13
|
13
09402-28513-000 CLAMP |
09402-28513-000 |
from US $2.90 |
||
|
14
|
14
09402-22511-000 CLAMP |
09402-22511-000 |
from US $10.56 |
||
|
15
|
15
17761-37F10-YU1 COVER,RADIATOR,R(YELLOW)Cover, radiator rh (yellow); |
17761-37F10-YU1 |
from US $73.41 |
||
|
16
|
16
17762-37F10-YU1 COVER,RADIATOR,L(YELLOW)Cover, radiator lh (yellow) Cover, radiator lh (yellow); |
17762-37F10-YU1 |
from US $59.18 |
||
|
17
|
17
69232-37F00-000
Washer, radiator cover
Washer, radiator cover; |
69232-37F00-000 |
— | ||
| replacement | |||||
|
17
|
17
69232-37F01-000 WASHERWasher, air cleaner Washer, radiator cover; |
69232-37F01-000 |
from US $5.85 |
||
|
18
|
18
09103-06233-000 BOLT(6X12)Bolt, rear |
09103-06233-000 |
from US $0.91 |
||
|
19
|
19
69232-37F00-000
Washer, radiator cover
Washer, radiator cover; |
69232-37F00-000 |
— | ||
| replacement | |||||
|
19
|
19
69232-37F01-000 WASHERWasher, air cleaner Washer, radiator cover; |
69232-37F01-000 |
from US $5.85 |
||
|
20
|
20
09103-06233-000 BOLT(6X12)Bolt, rear |
09103-06233-000 |
from US $0.91 |
||
|
21
|
21
17831-37F00-000 LOUVER,RADIATOR |
17831-37F00-000 |
from US $15.79 |
||
|
22
|
22
68660-37F60-DRA
TAPE,RADIATOR COVER,R
Model k7 |
68660-37F60-DRA |
— | ||
|
23
|
23
68670-37F60-DRA
TAPE,RADIATOR COVER,L
Model k7 |
68670-37F60-DRA |
— | ||
|
24
|
24
68660-37F70-EMA TAPE,RADIATOR COVER,RModel k8 |
68660-37F70-EMA |
US $167.07 |
||
|
25
|
25
68670-37F70-EMA TAPE,RADIATOR COVER,LModel k8 |
68670-37F70-EMA |
US $167.07 |
||
