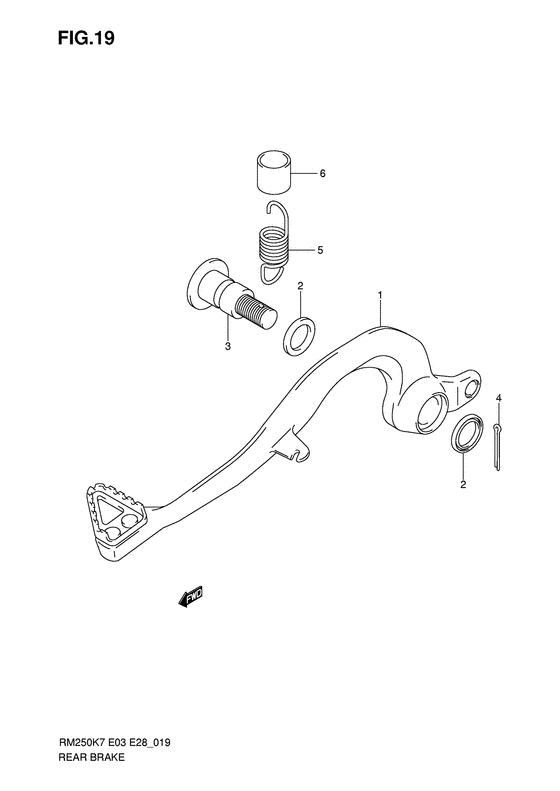

Rear brake Diagram Suzuki RM250
- Year
- 2007
- Model code
- RM250K7(E3/E28) K7
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43100-37F20-000 PEDAL ASSY,BRAKE |
43100-37F20-000 |
from US $163.39 |
||
|
2
|
2
09284-15006-000 SEAL,OIL(15X21X3) |
09284-15006-000 |
from US $2.08 |
||
|
3
|
3
43142-37F00-000 SHAFT,BRAKE PEDAL |
43142-37F00-000 |
from US $12.48 |
||
|
4
|
4
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
5
|
5
09443-13036-000 SPRING |
09443-13036-000 |
from US $5.03 |
||
|
6
|
6
43145-37F00-000 PROTECTOR,SPRINGProtector, spring; |
43145-37F00-000 |
from US $5.52 |
