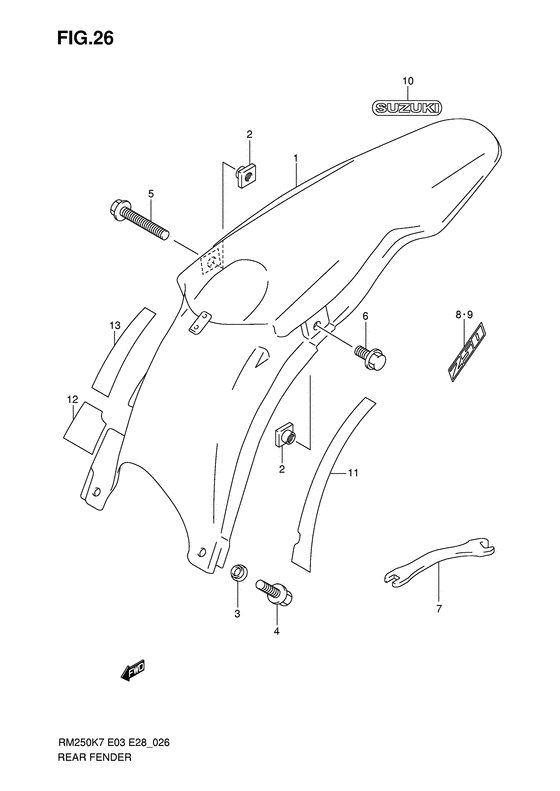

Rear fender Diagram Suzuki RM250
- Year
- 2007
- Model code
- RM250K7(E3/E28) K7
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-37F00-YU1 FENDER,RRFender, rear (yellow); |
63111-37F00-YU1 |
from US $98 |
||
|
2
|
2
09152-06024-000 NUTNut, rear fender; |
09152-06024-000 |
from US $5.39 |
||
|
3
|
3
69232-37F01-000 WASHERWasher, air cleaner |
69232-37F01-000 |
from US $5.85 |
||
|
4
|
4
09103-06235-000
Bolt, lh
Bolt, front; |
09103-06235-000 |
— | ||
| replacement | |||||
|
4
|
4
01547-06207-000 BoltBolt, lower Bolt, front; |
01547-06207-000 |
from US $0.80 |
||
|
5
|
5
09103-06252-000 BOLT(6X35)Bolt (6x35) Bolt, rh; |
09103-06252-000 |
from US $3.67 |
||
|
6
|
6
09103-06234-000 BOLT(6X16)Bolt, chain guide Bolt, lh; |
09103-06234-000 |
from US $0.81 |
||
|
7
|
7
09813-00134-000 OPEN SPANNER(6.4X6.8)Spanner, open (6.4x6.8) Open spanner (6.4x6.8); |
09813-00134-000 |
from US $7.95 |
||
|
8
|
8
68175-37F20-GY8 TAPE,RR FENDER,R |
68175-37F20-GY8 |
from US $10.82 |
||
|
9
|
9
68176-37F20-GY8 TAPE,RR FENDER,L |
68176-37F20-GY8 |
from US $10.82 |
||
|
10
|
10
68721-13A00-GY8
EMBLEM,RR
Emblem, "suzuki"; |
68721-13A00-GY8 |
— | ||
| replacement | |||||
|
10
|
10
68721-13A01-GY8 Emblem,"suzuki"Emblem, "suzuki"; |
68721-13A01-GY8 |
from US $6.11 |
||
|
11
|
11
63114-37F00-000 CUSHION,RR FENDER NO.1 |
63114-37F00-000 |
from US $12.81 |
||
|
12
|
12
63114-37F10-000 CUSHION,RR FENDER NO.2 |
63114-37F10-000 |
from US $4.34 |
||
|
13
|
13
63114-37F20-000 CUSHION,RR FENDER NO.3 |
63114-37F20-000 |
from US $6.99 |
||
