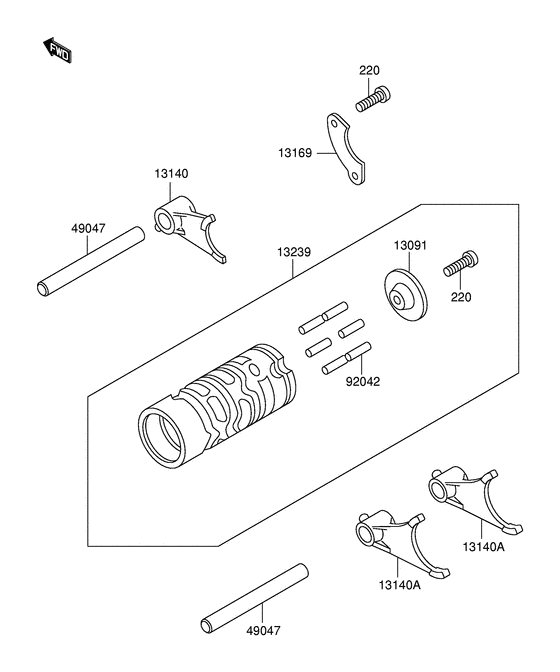

Gear change drum/shift fork Diagram Suzuki RM60
- Year
- 2003
- Model code
- RM60K3(E28) K3
- Engine Capacity
- 60
- Model
- RM60
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13091
|
13091
K1309-11098-000
Holder,change drum pin
|
K1309-11098-000 |
— | ||
|
13140
|
13140
K1314-01300-000
FORK-SHIFT,INPUT
|
K1314-01300-000 |
— | ||
|
13140A
|
13140A
K1314-01301-000
FORK-SHIFT,OUTPUT
|
K1314-01301-000 |
— | ||
|
13169
|
13169
K1316-91309-000
Plate,change drum position
|
K1316-91309-000 |
— | ||
|
13239
|
13239
K1323-91065-000
Drum-assy-change
|
K1323-91065-000 |
— | ||
|
49047
|
49047
K4904-71009-000
Rod-shift,10x90
|
K4904-71009-000 |
— | ||
|
92042
|
92042
KK920-42029-000
Pin,dowel,4x16.8
|
KK920-42029-000 |
— | ||
|
220
|
220
KK220-B0614-000
Screw-pan-cros,6x14
|
KK220-B0614-000 |
— | ||
| replacement | |||||
|
220
|
220
K220A-A0614-000 SCREW-PAN-CROS,6X14 |
K220A-A0614-000 |
from US $1.12 |
||
