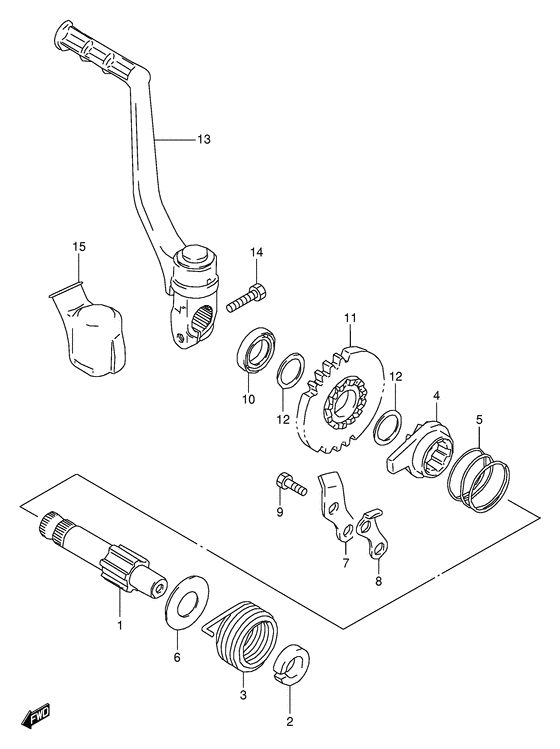

Kick starter Diagram Suzuki RM80
- Year
- 1996
- Model code
- RM80T(E24) T
- Engine Capacity
- 80
- Model
- RM80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26211-02B02-000 Shaft,kick starShaft, kick starter Model t/v |
26211-02B02-000 |
US $45.83 |
||
| replacement | |||||
|
1
|
1
26211-02B04-000 SHAFT,KICK STARTERModel t/v |
26211-02B04-000 |
from US $46 |
||
|
1
|
1
26211-02B03-000
Shaft, kick starter
Model w/x |
26211-02B03-000 |
— | ||
| replacement | |||||
|
1
|
1
26211-02B04-000 SHAFT,KICK STARTERModel w/x |
26211-02B04-000 |
from US $46 |
||
|
2
|
2
26221-02B00-000 GUIDE,SPRING |
26221-02B00-000 |
from US $1.62 |
||
|
3
|
3
09448-35007-000 SPRING |
09448-35007-000 |
from US $12.36 |
||
|
4
|
4
26231-02B01-000
Starter, kick
|
26231-02B01-000 |
— | ||
| replacement | |||||
|
4
|
4
26231-02B02-000 STARTER,KICK |
26231-02B02-000 |
from US $17.66 |
||
|
5
|
5
09440-31002-000 SPRING |
09440-31002-000 |
from US $2.91 |
||
|
6
|
6
08211-12301-000 WASHERThrust washer |
08211-12301-000 |
from US $3.21 |
||
|
7
|
7
26232-40200-000 GUIDE,KICK STARTERGuide, kick starter Guide, kick starter; |
26232-40200-000 |
from US $3.46 |
||
|
8
|
8
26233-40200-000
Stopper
Stopper, kick starter; Model t |
26233-40200-000 |
— | ||
| replacement | |||||
|
8
|
8
26233-40201-000 STOPPER,KICK STARTERStopper, kick starter Stopper, kick starter; Model t |
26233-40201-000 |
from US $2.69 |
||
|
8
|
8
26233-40201-000 STOPPER,KICK STARTERStopper, kick starter Model v/w/x |
26233-40201-000 |
from US $2.69 |
||
|
9
|
9
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
10
|
10
09285-14001-000
SEAL,OIL(14X24X6)
Oil seal (14x24x6); |
09285-14001-000 |
— | ||
| replacement | |||||
|
10
|
10
09285-14002-000 Seal,oil(14X24X6)Oil seal (14x24x6); |
09285-14002-000 |
from US $18.40 |
||
|
11
|
11
26241-02B40-000 Gear, kick drive (nt:26)Model t/v |
26241-02B40-000 |
US $66.89 |
||
| replacement | |||||
|
11
|
11
26241-02B41-000 GEAR,KICK STARTER DRIVE(NT:26)Gear, kick drive (nt:26) Model t/v |
26241-02B41-000 |
from US $40.11 |
||
|
11
|
11
26241-02B41-000 GEAR,KICK STARTER DRIVE(NT:26)Gear, kick drive (nt:26) Gear, kick drive (nt:26); Model w/x |
26241-02B41-000 |
from US $40.11 |
||
|
12
|
12
09181-14139-000 SHIM(14X20X1)Washer, gear shaft Washer (14x20x1.0); |
09181-14139-000 |
from US $1.82 |
||
|
13
|
13
26300-02B12-000 LEVER ASSY,KICK STARTERLever, kick starter |
26300-02B12-000 |
from US $143.65 |
||
|
14
|
14
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
15
|
15
26341-20401-000
COVER,KICK LEVER JOINT
|
26341-20401-000 |
— | ||
| replacement | |||||
|
15
|
15
26341-20402-000 Cover,joint |
26341-20402-000 |
from US $5.81 |
||
